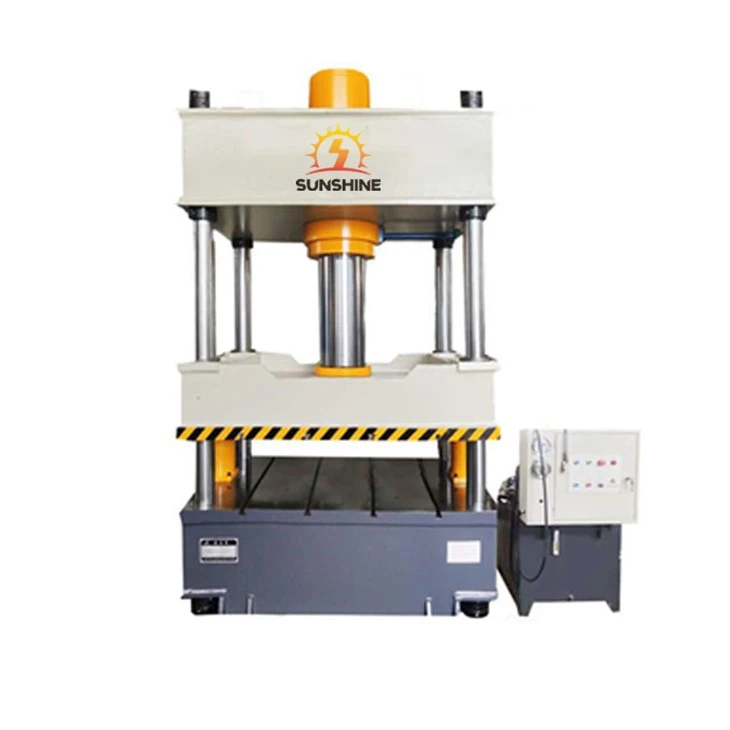

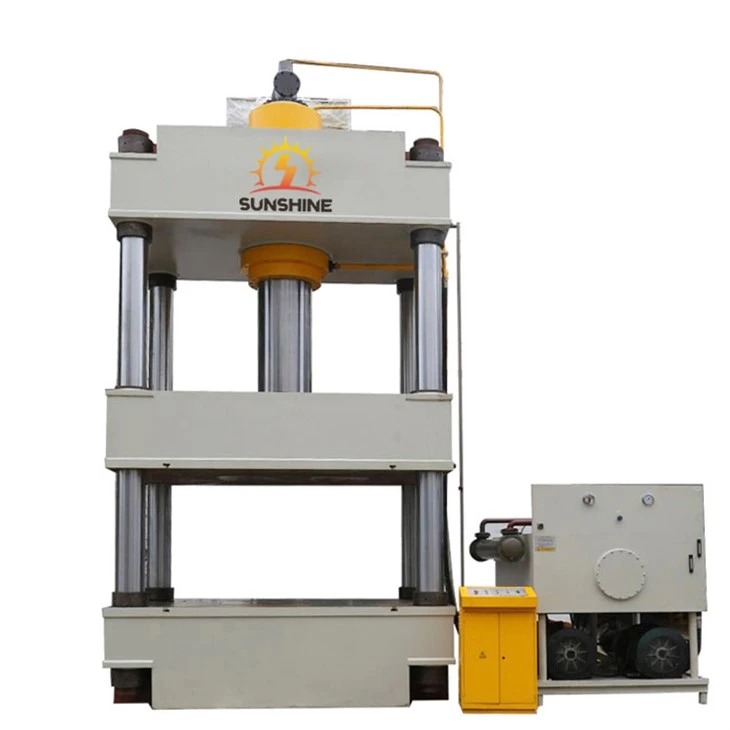

Four Column Hydraulic Press Machine

Four Column Hydraulic Press Machine

Main features: YJH32 series hydraulic press is applied to drawing,bending,flanging,cold-extrusion,blanking and other process about metal material,also applied to calibration,press fitting and compressing molding about powder products,abrasive products,plastic products as well as insulating...

Product Details



Main features:

YJH32 series hydraulic press is applied to drawing,bending,flanging,cold-extrusion,blanking and other process about metal material,also applied to calibration,press fitting and compressing molding about powder products,abrasive products,plastic products as well as insulating materials.

Main Device:

1,Siemens PLC control system.

2,Siemens Motor.

3,Rexroth pump.

4,Schneider electrical parts.

5,fixation way with T-slot.

Safety Device:

1,With grating protection.

2,Prevent slide falling device.

3,Electric box open door power off.

4,Motor thermal overload protection

5,Overflow valve is installed in the valve body of hydraulic system.

6,Double operation button.

7,Install ladder power off device.

8,The top of the machine is equipped with protective bars and protective covers.

Main parameters:


Nominal press

T

160

200

system press

Mpa

25

25

diameter of cylinder

mm

∮290

∮320

diameter of rod

mm

∮260

∮290

daimeter of column

mm

∮140

∮160

MAX.opening height between slide block and worktable

mm

1100

1100

return force

T

30

35

MAX.stroke length of sliding block

mm

800

900

rapid down speed of sliding block

mm/s

200

200

working speed

mm/s

14

18.27

effective worktable size (left to right is inside of column,front to rear dimension is shape )

mm

1250×1000

1350×1350

return speed of sliding block

mm/s

70

100

under cylinder tonnage

T

12.5×2

12×4

under cylinder stroke

mm

300

300

return products cylinder(second cylinder)

T

20

20

stroke length of return products cylinder

mm

300

300

plunger pump station

L

40

63

motor power

KW

11

15

from workbench to ground height

mm

850

850

machine weight

Ton

14

20





If you are in need of four column hydraulic press machine to help with your business, please rest assured to wholesale with us. We are one of the leading such manufacturers and suppliers in China with over 20 years' history. And the customized service is also available.
