Four Column Hydraulic Press

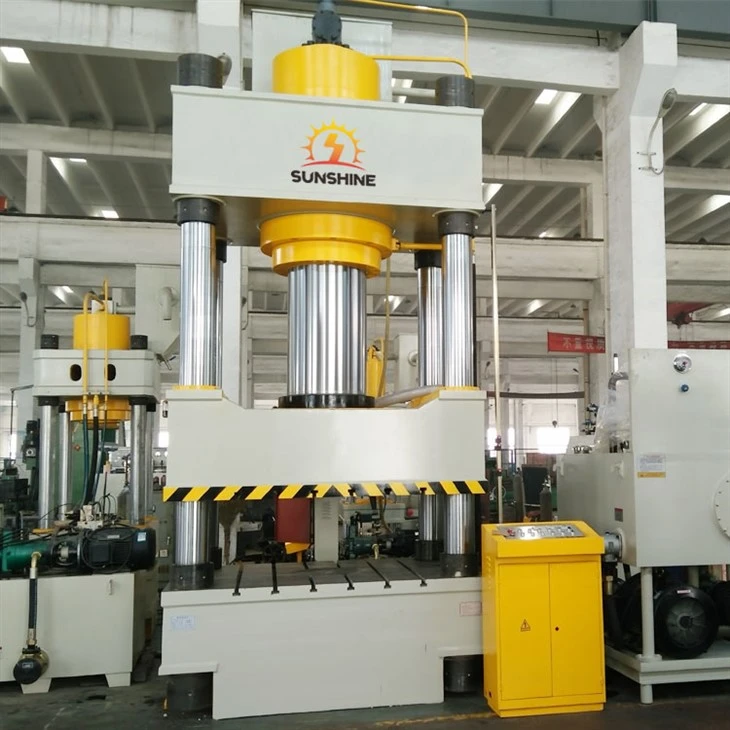

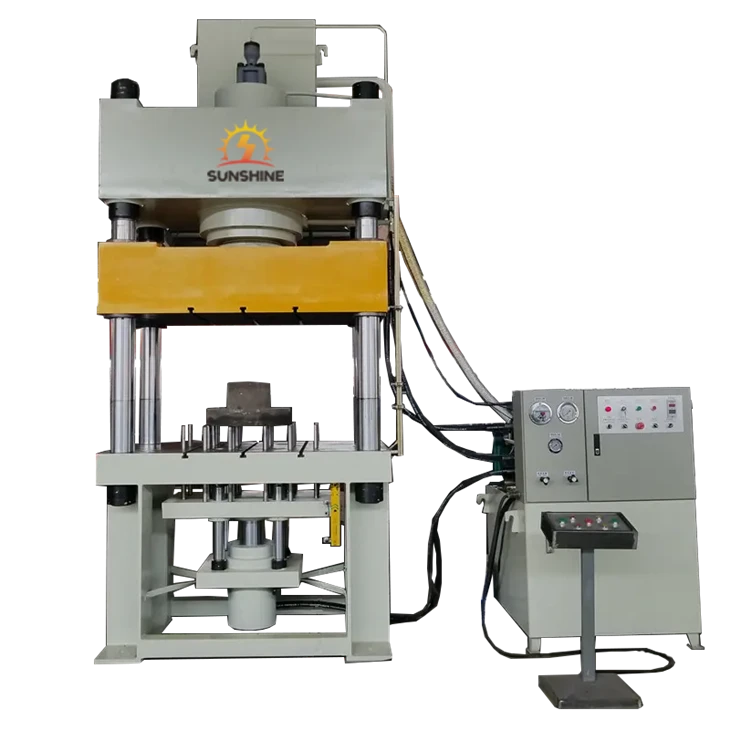

Metal Bending and Drawing Four Column Hydraulic Press Machine

Metal Bending and Drawing Four Column Hydraulic Press Machine

Main features This series hydraulic machine is applied to drawing, bending, flanging, cold extrusion, blanking and other process about metal material, also to calibration, press fitting Main parameters ...

Main features
This series hydraulic machine is applied to drawing, bending, flanging, cold extrusion, blanking and other process about metal material, also to calibration, press fitting
Main parameters

model

Nominal pressure(KN)

Sliding block stroke(mm)

Maximum opening height(mm)

Workbench effective size(mm)

Sliding block speed(mm/s)

Ejection force(KN)

Under cylinder stroke (mm)

Motor power(kw)

Left and right

Front and back

Idle stroke

working

Return stroke

Y32-200T

2000


500

800

720

700

>120

14

55



11

Y32-200T

2000

500

800

1000

1000

>120

14

72

300

260

11

Y32-200T

2000

500

800

1100

1000

>120

14

72

300

260

11

Y32-250T

2500

500

800

720

700

>120

12

65



11

Y32-250T

2500

500

800

1100

1000

>120

12

65

300

260

11

Y32-250T

2500

500

800

1200

1100

>120

12

65

300

260

11

If you are in need of metal bending and drawing four column hydraulic press machine to help with your business, please rest assured to wholesale with us. We are one of the leading such manufacturers and suppliers in China with over 20 years' history. And the customized service is also available.
