Vertical Drilling and Milling Machine (mm-BF30Vario, MAXNOVO)
Product Introduction
Our company is a large-scale multifunction hydraulic press, 80 CNC vertical lathe, CNC machine production group with the most commercial creative perspective in China. Our commitment to ethics and corporate responsibility is reflected in everything we do. Our products are of high quality and competitively priced.
Products Specification
| Specification | Unit | VTC70 Vertical Turning Lathes | |
| Stroke | X axis stroke | mm | 700 |
| Z axis stroke | mm | 0-850 | |
| Processing capacity | Maximum rotation diameter | mm | Φ800 |
| Maximum turning diameter | mm | Φ700 | |
| Maximum turning hight | 850 | ||
| Spindle | Spindle speed | rpm | 100-800 |
| Spindle motor power | kW | 22 | |
| Spindle diameter | mm | Φ160 | |
| Hydraulic chuck + Tool Turret | Chuck model | Hydraulic chuck | |
| Chuck diameter | inch | 21" | |
| Turret Stations | Four workstations / Eight workstations | ||
| Guide | X-axis rolling linear guide | 2 pieces, width 45mm | |
| Z-axis rolling linear guide | 2 pieces, width 55mm | ||
| CNC system | Standard configuration | GSK | |
| Cooling system | Cooling motor power | W | 750+1.2kW |
| Pump output | m3/h | 4 | |
| Accuracy | Repeatability | mm | ±0.003 |
| Positioning accuracy | mm | ±0.06 | |
| Smallest positioning unit | mm | 0.001 | |
| Weight and dimensions | Dimensions (approx.) | mm | 2400*2100*3200 |
| Gross weight (approx.) | kg | 8000 | |
| Standard configuration | GSK CNC system | ||
| Taiwan servo turret | |||
| Three-jaw hydraulic chuck | |||
| Taiwan linear guide | |||
| Taiwan ball screw | |||
| Optional | CNC system: Fanuc, Siemens, HNC | ||
| Taiwan powered turret | |||
| Manual chuck / four-jaw chuck / special tooling | |||
| Linear guide: THK | |||
| Ball screw: THK | |||
| Automation accessories: Robot / automatic feeding device / automatic door | |||
If you would like to learn more about our customization options, please feel free to contact us; we offer 24/7 service and will respond to your inquiry promptly.
Video Showcase
Main Structure
Widened column to meet full-strokecutting load
The user-friendly design facilitates easy inspection and maintenance
A wide variety of turret options areavailable, including horizontal, vertical, driven turret, and disc-type tool changers.
The vertical axis features a pneumatic balancing system for safety and reliability.
A large internal bed slope optimizeschip evacuation
A heavy-duty bed enhances vibration resistance for high-volume cutting.
Other Main Structure
Bed: The VTC70 Vertical Turning Lathes is made of wear-resistant cast iron, ultrasonically hardened and precision ground to ensure long-term accuracy.
Column and Crossbeam: The column is vertically mounted on the bed, supporting the crossbeam; the crossbeam is horizontally mounted, carrying the cutting tool and drive unit for horizontal movement.
Slide: Mounted on the bed, the slide moves longitudinally to feed the workpiece.
Worktable: The worktable features a circular platform design for clamping workpieces, supporting heavy cutting and machining of large parts.
Feeding System
Servo Motors and Ball Screws: The X/Z axes of the VTC 70 Cnc Vertical Turning Lathe Machine utilize high-precision ball screws and specialized bearings, ensuring high transmission efficiency, low friction, and long service life.
Guide Rail Type: The VTC 70 Cnc Vertical Turning Lathe Machine uses heavy-duty linear rolling guide rails for its saddle and column, offering excellent dynamic response and high precision retention.
Tool Turret System
Horizontal Turret
Powered Turret
Vertical Turret
Electric Tool Turret: The standard configuration of the Vertical Turning Lathes is equipped with an eight-position horizontal hydraulic turret, offering high rigidity, rapid and reliable tool changing, and supporting multi-process machining such as turning, milling, and drilling. A vertical turret can also be configured.
Powered Turret: CNC machine tools can also be configured with a powered turret according to the workpiece machining requirements. Rotary tools can be installed to achieve complex operations such as drilling, milling, and tapping.
Vertical Turret: Gravity-Assisted Chip Evacuation + Extreme Rigidity-Optimized specifically for large depths of cut, interrupted cutting, and deep-hole boring (e.g., heavy roughing of the inner circumferential surfaces of brake drums, and applications with demanding chip evacuation requirements).
Machined Parts Showcase
The VTC70 Vertical Turning Lathe is capable of machining a wide variety of parts:
Because of Focus, We Focus
The VTC 70 is a vertical single-column CNC lathe specifically designed for machining brake drums. Equipped with specialized fixtures, it allows for multi-angle machining. Fixtures can be customized to fit customer parts. You are welcome to visit our factory.
Products Description

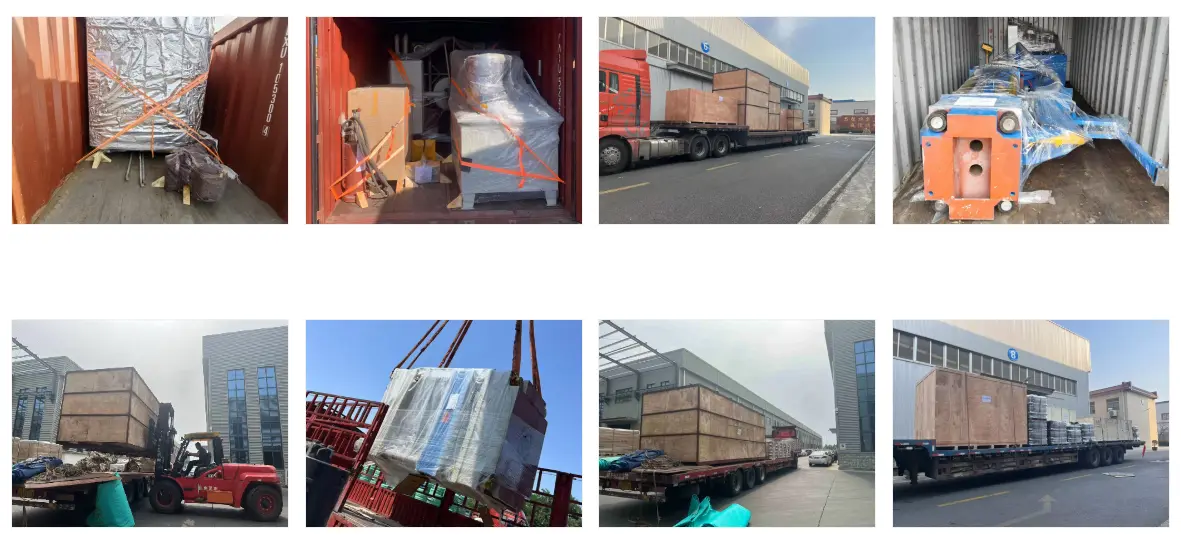

Shipping & Delivery
