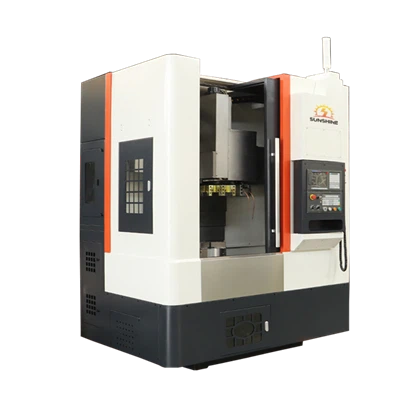

CNC Vertical Drilling and Boring Machine
Designed for high-precision vertical drilling and boring of automotive and industrial components, this CNC Vertical Drilling and Boring Machine delivers excellent rigidity, stable machining accuracy, and efficient multi-process capability.
It is especially suitable for machining disc-shaped and cylindrical parts that require precise hole positioning, boring accuracy, and consistent surface quality.
Key Applications
Automotive components
Brake system parts
Housings, flanges, and similar workpieces
Precision drilling and boring of medium to large-sized parts
Main Features
Innovative bed structure design: adopts triangular force structure, highrigidityand high shock resistance to ensure long-lasting and stablemachine toolprecision and longer life.
Workbench: Ultrasonic quenching,precision grinding.
Chuck: It can guickly clamp the product and rotate it simultaneouslywith the spindle for processing.
Linear rail: Taiwan Hiwin linear rail is used, which has high precision,large load-bearing capacity, strong stability, long service life, and issuitable for high-precision processing requirements.
Tool magazine: Disc-type tool magazine, which can rotate withoutnoise and change tools quickly and accurately.
Technical Specifications
| Specifications | unit | VMC650 | VMC850 | VMC855 | VMC1050 | VMC1160 |
| Table size | mm | 900x400 | 1000X500 | 1000x550 | 1000x530 | 1200x600 |
| Table maximum load | kg | 350 | 500 | 500 | 600 | 1000 |
| X/Y/Z axis travel | mm | 650x400x500 | 800x500x500 | 800x550x550 | 1000x500x600 | 1100x600x600 |
| Distance between spindle centerand column | mm | 476 | 552 | 590 | 580 | 650 |
| Distance between spindle endface and worktable surface | mm | 100-600 | 120-670 | 120-670 | 140-740 | 120-720 |
| X/Y/Z Max. feed speed | mm/min | 10000 | 10000 | 10000 | 10000 | 10000 |
| X/Y/Z Max. Rapid traverse | m/min | 32/32/30 | 32/32/30 | 32/32/30 | 32/32/24 | 32/32/30 |
| spindle speed | r/min | 8000 | 8000 | 8000 | 8000 | 8000 |
| spindle taper | type | BT40 | BT40 | BT40 | BT40 | BT40 |
| Spindle motor power | kW | 5.5/7.5 | 7.5/11 | 7.5/11 | 7.5/11 | 11/15 |
| X/Y/Z axis servo motor power | kW | 2.6/2.6/2.8 | 3.9/3.9/3.6 | 3.9/3.9/3.6 | 3.9/3.9/3.6 | 4/4/5 |
| X/Y/Z motor connection | Direct | Direct | Direct | Direct | Direct | |
| X/Y/Z Guide way type | Line rail | Line rail | Line rail | Line rail | third line | |
| T slot | mm | 3-18x125 | 5-18x90 | 5-18x90 | 5-18x90 | 5-18x100 |
| Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 | ±0.004 | ±0.005 |
| Tool magazine | Hat type/disc type | Hat type/disc type | disc type | disc type | disc type | |
| Tool capacity | 16T/16T | 24T | 24T | 24T | 24T | |
| Maximum tool weight | kg | 7 | 8 | 8 | 8 | 8 |
| Max. tool length | mm | 250/300 | 250/300 | 300 | 250/300 | 300 |
| Electric capacity | kVA | 10 | 15 | 15 | 15 | 18 |
| Machine dimension(LxWxH) | mm | 2300x2000x2300 | 2600x2380x2700 | 2600x2380x2700 | 3200x2420x2400 | 3100x2490x2380 |
| Net. weight (about) | kg | 4500 | 5000 | 5000 | 6000 | 7000 |
CNC System Options
The machine can be equipped with different CNC control systems according to customer requirements, including GSK, FANUC, and Siemens, providing flexible configuration options for various machining tasks.
Customization & Manufacturing Capability
SUNSHINE Machinery is an experienced manufacturer of CNC machine tools with over 20 years of industry experience.
We offer customized solutions based on your workpiece size, machining process, accuracy requirements, and production volume, ensuring the machine integrates efficiently into your production line.
Why Choose SUNSHINE Machinery
Over 20 years of CNC machine tool manufacturing experience
Stable product quality and strict quality control
Flexible customization and professional engineering support
Reliable after-sales service and technical assistance
Contact Us
If you are looking for a reliable CNC Vertical Drilling and Boring Machine for your production needs, please share your workpiece drawings, material type, and machining requirements with us.
Our engineering team will provide a suitable solution and technical proposal tailored to your application.
👉 Contact us today to receive detailed specifications and a customized quotation.
