Vtc60 CNC Vertical Lathe Disc Processing Turning

Powerful Cutting Power / Stable Performance / 24-Month Warranty

If you're looking for a reliable, efficient, and versatile CNC lathe, the VTC60 is the ideal choice. Here are some of this machine's key advantages:

1. High Precision: Equipped with a high-precision spindle, the VTC60 can precisely machine complex parts. With its advanced control system, this CNC lathe ensures every cut is accurate, producing parts with tight tolerances and superb surface finishes.

2. Quick Setup: With its user-friendly interface, the VTC60 disc-turning CNC lathe is quick and easy to set up. CNC lathe operators can easily load programs, adjust cutting parameters, and monitor machine performance, enabling efficient and streamlined production.

3. Versatile Machining Capabilities: The VTC60 disc-turning CNC lathe can process a wide range of materials, from aluminum and steel to exotic alloys and plastics. It can also perform a variety of machining operations, including turning, drilling, boring, tapping, and more.

4. High Productivity: With its powerful spindle motor and fast feed rates, the VTC60 disc-cutting CNC lathe delivers high productivity. It produces workpieces quickly and accurately, even when processing complex geometries or tight tolerances.

5. Energy Efficiency: The VTC60 disc-cutting CNC lathe is designed with energy efficiency in mind. Its advanced electronics minimize energy consumption, while an efficient cooling system reduces waste heat and ensures long-term reliability.

X-axis(mm): 425
Z-axis(mm): 90-690
Maximum swing diameter(mm): 650
Maximum turning diameter(mm): 600
Maximum turning height(mm): 600
Spindle speed(mm): 100-1000
Spindle motor power(mm): 18.5
Spindle outer diameter(mm): 160

Chuck type: 18-inch hydraulic chuck
Turret: 4/8-station hydraulic turret
CNC system: Standard GSK
Repeatability(mm): 0.003
Positioning accuracy(mm): 0.006
Minimum positioning unit(mm): 0.001
Dimensions(mm): 2200*2500*2910
Weight(mm): 7500

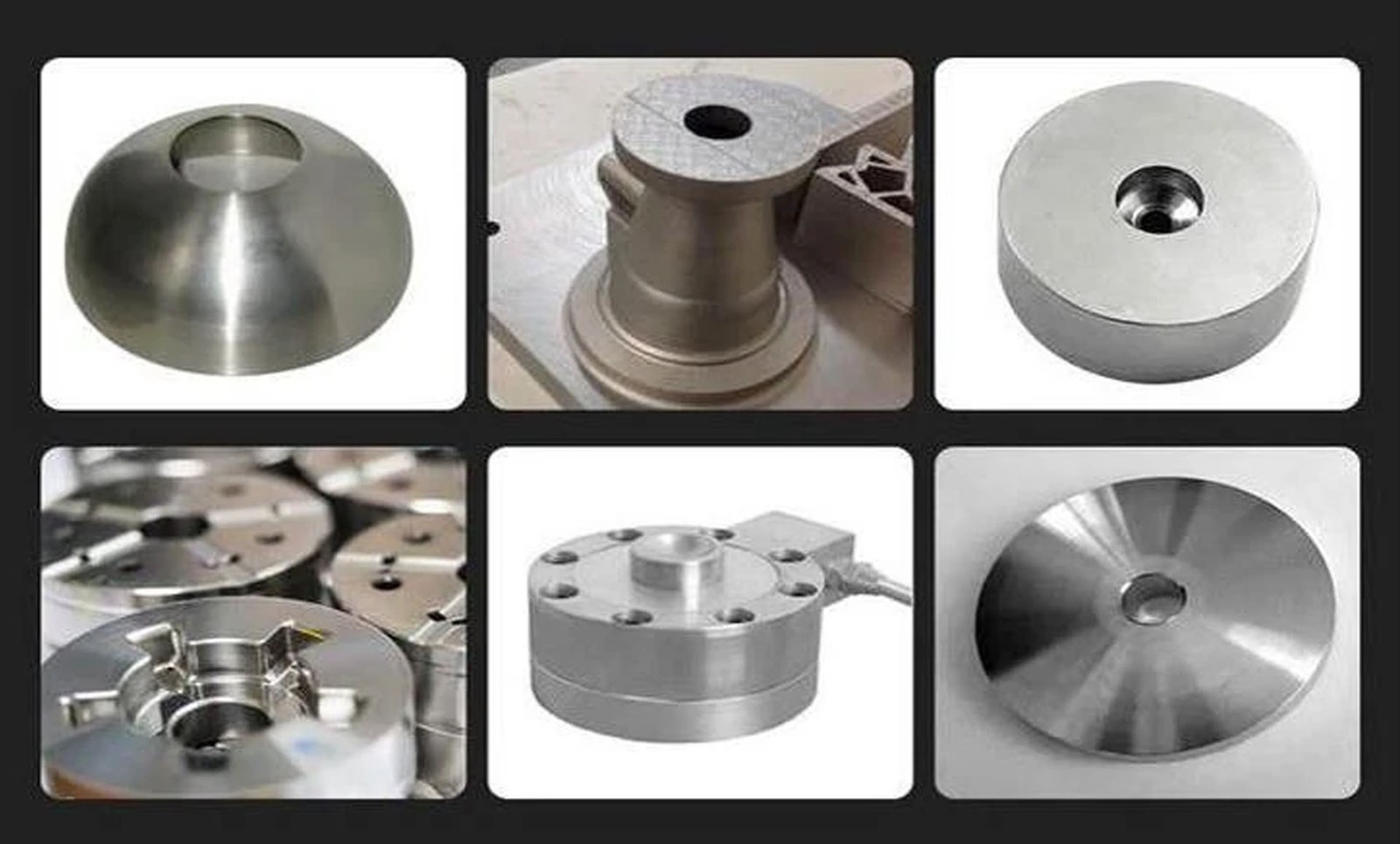

Mainly used for drilling, reaming, boring, and tapping metal parts

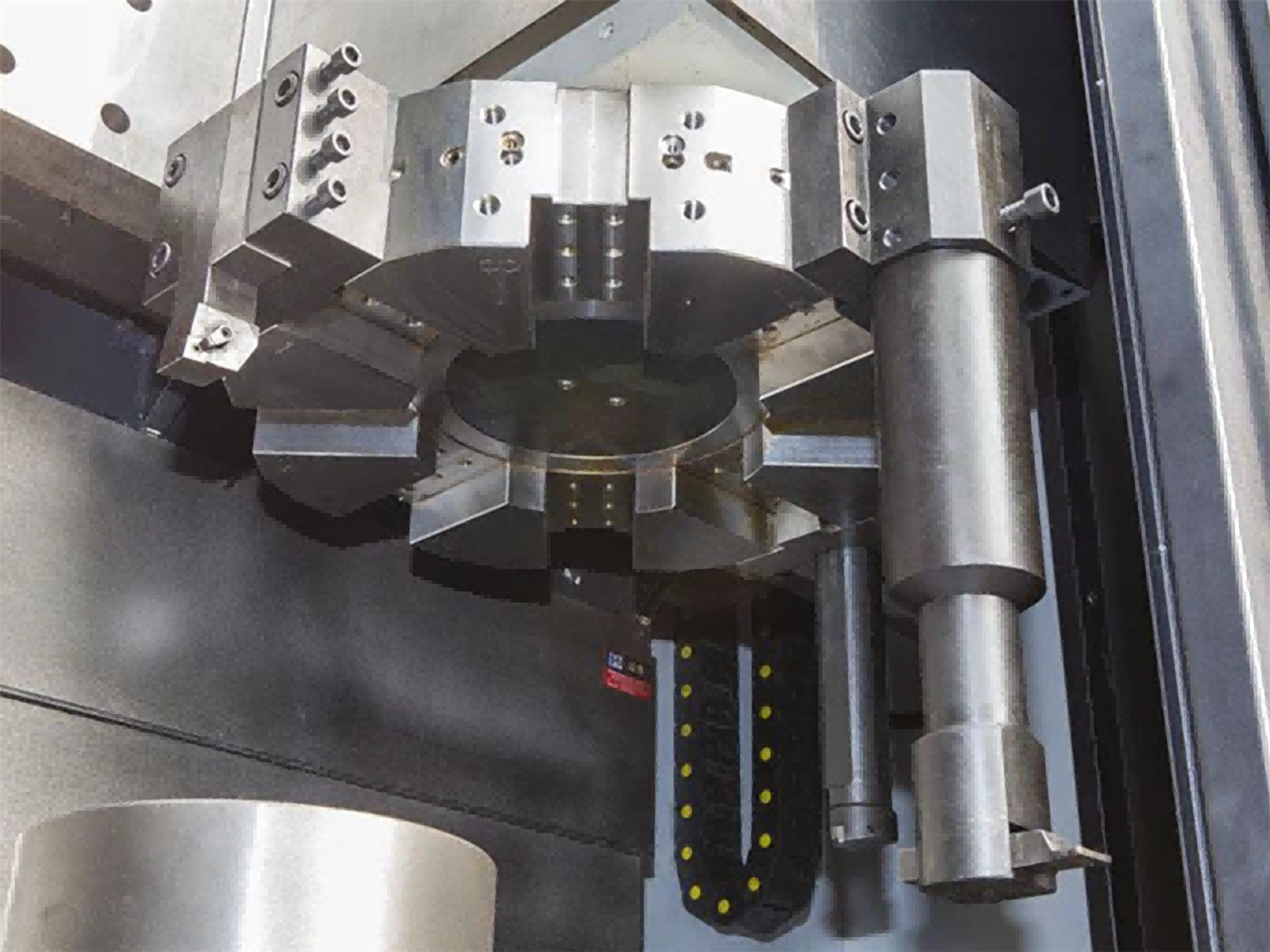

Vertical Turret

● External Roughing/Finishing: External turning of large flanges, gear rings, wheel hubs, and other parts.

● External Grooving/Threading: Processing sealing grooves, undercuts, or threads on the exterior surface of a workpiece.

● Heavy Roughing: CNC vertical lathes require powerful cutting with large cutting depths and high feed rates, such as roughing of castings and forgings.

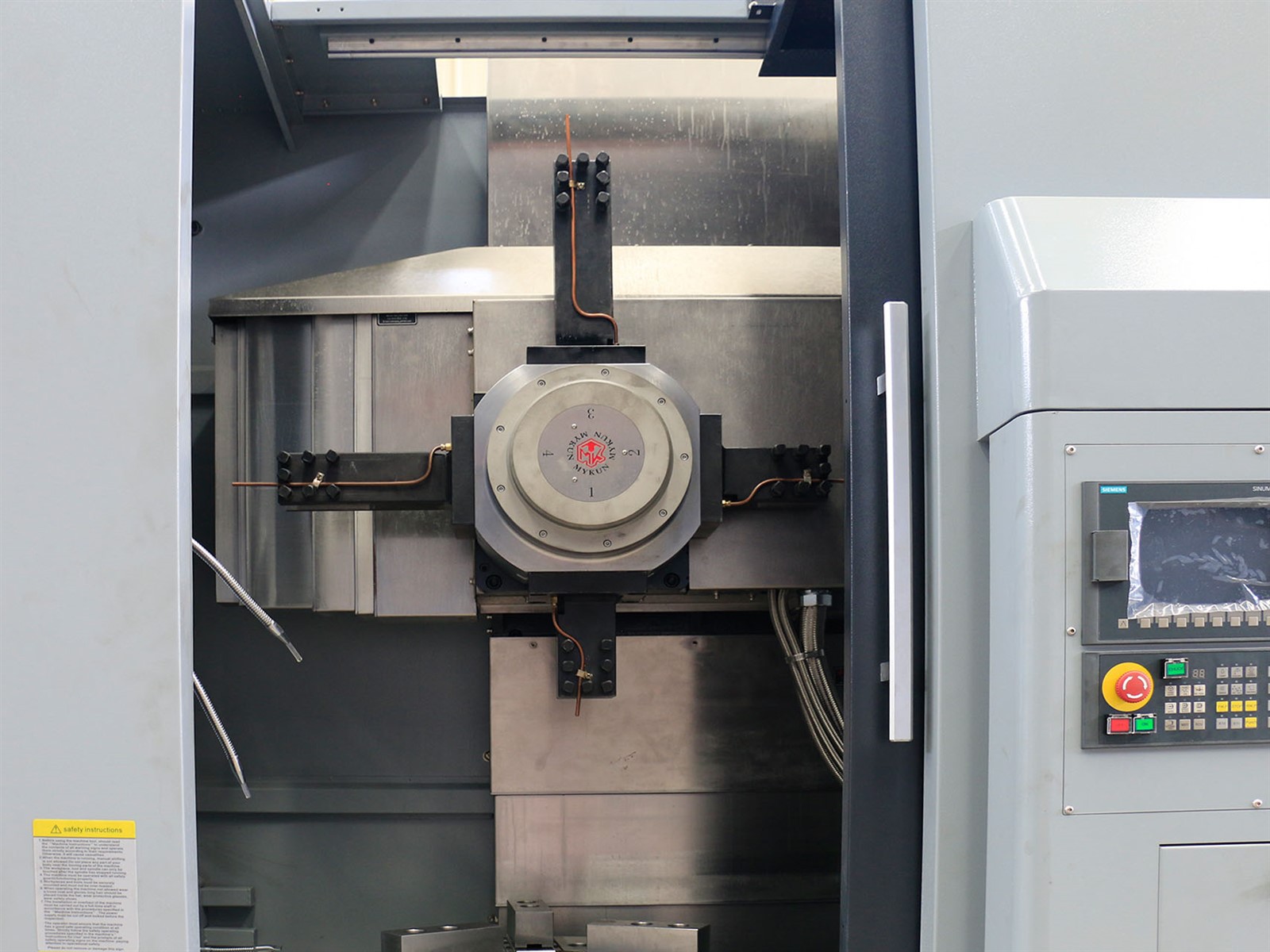

Horizontal Turret

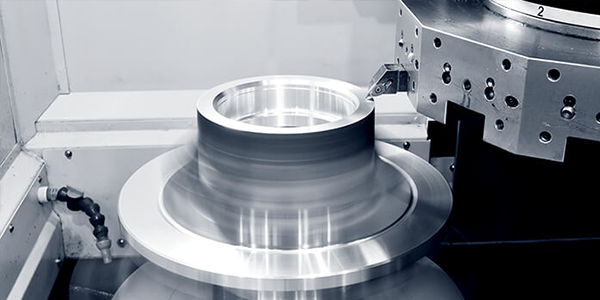

● Face Finishing: CNC vertical lathes precisely turn the top surface of a workpiece to ensure flatness and a smooth finish.

● Internal Boring: Processing bearing holes, valve body bores, and other parts with high dimensional accuracy.

● Internal Grooving/Threading: CNC vertical lathes create sealing grooves and threads within workpiece internal holes.

● Deep Cavity Machining: Due to minimal interference, these machines are ideal for machining parts with deep cavities, such as cases and housings.



Our products have received high praise from many customers, and their quality and after-sales service are guaranteed. If you need to purchase the VTC60 CNC Vertical Lathe, please feel free to contact us for more product information.
