Automated CNC Vertical Lathe for Brake Drums
Ensures precision and long-term operational stability
CNC vertical lathes can be integrated into customized automated production lines for brake drums, with the layout and configuration tailored to the customer's production cycle and workpiece specifications.

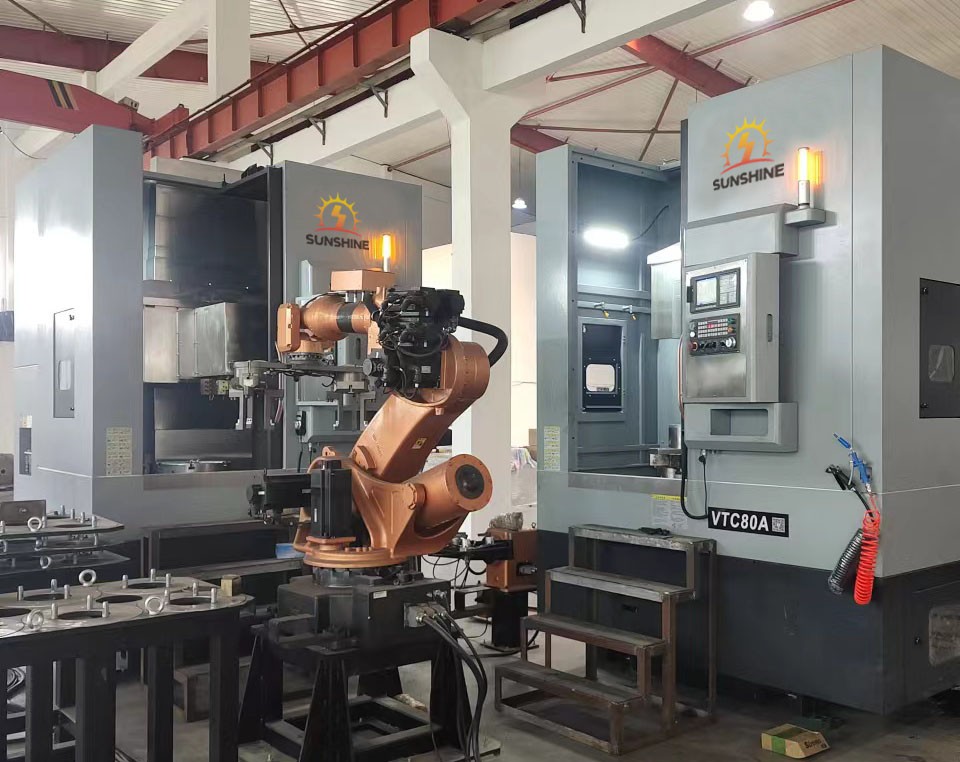

Built around a CNC vertical lathe, the production line can incorporate automatic loading and unloading systems, workpiece positioning fixtures, in-line inspection units, chip removal systems, and discharge conveyors. These components work together to create a continuous machining process, covering raw casting loading, rough and finish turning, end-face and internal bore machining, final dimensional inspection, and finished-part unloading.
Brake drums and other cast components often have uneven wall thicknesses and may deform during machining. To address these characteristics, we optimize the worktable clamping arrangement, cutting parameters, and toolpaths according to the workpiece structure. This helps reduce the number of clamping operations and minimize positioning errors caused by repeated workpiece setup.
The production line can also be configured for different brake drum models. By changing the corresponding fixtures and adjusting the machining program, manufacturers can switch between product specifications more efficiently. This makes the system suitable for high-volume production in automotive component manufacturing facilities.

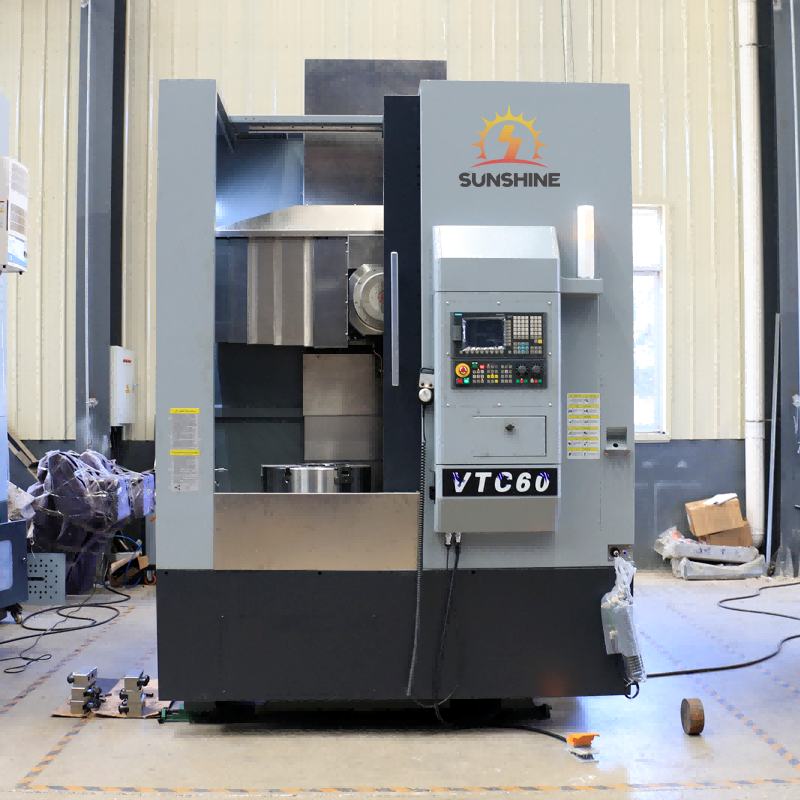

The automated CNC vertical lathe for brake drums can machine workpieces up to 700 mm in diameter and 700 kg in weight. Equipped with a CNC control system, the machine allows operators to manage machining operations with greater precision and consistency throughout the production process.
Built specifically for cast iron brake drum mass production, this vertical lathe delivers stable heavy-duty cutting while minimizing chatter and workpiece deformation common with thin-wall castings. It supports rough turning, finish turning, inner bore machining, face turning and groove cutting in a single clamping setup, which cuts down repositioning errors and shortens cycle time.
Paired with custom pneumatic or hydraulic clamping fixtures, automatic loading and unloading mechanisms, chip removal conveyor and in-process dimensional inspection station, it can be integrated into a full brake drum production line. Operators can store multiple part programs for quick model changeover between different brake drum specifications, ideal for automotive component factories with mixed batch orders.
Its rigid one-piece cast machine frame maintains long-term geometric accuracy even under continuous round-the-clock operation. We have supplied this automated CNC vertical lathe solution to automotive manufacturers across Europe, Russia, Turkey, the Middle East and Southeast Asia, complying with local safety and electrical standards for seamless on-site installation and commissioning.
CNC Lathe Parameters
X-axis travel: 700mm
Z-axis travel: 850mm
Maximum turning height: 850mm
Maximum swing diameter: 800mm
Maximum turning diameter: 700mm
Spindle motor power: 22kW
Spindle speed: 100-800rpm
Spindle outer diameter: 160mm
Turret: 4/8-station horizontal turret (optional)
Turret selection
CNC system selection
