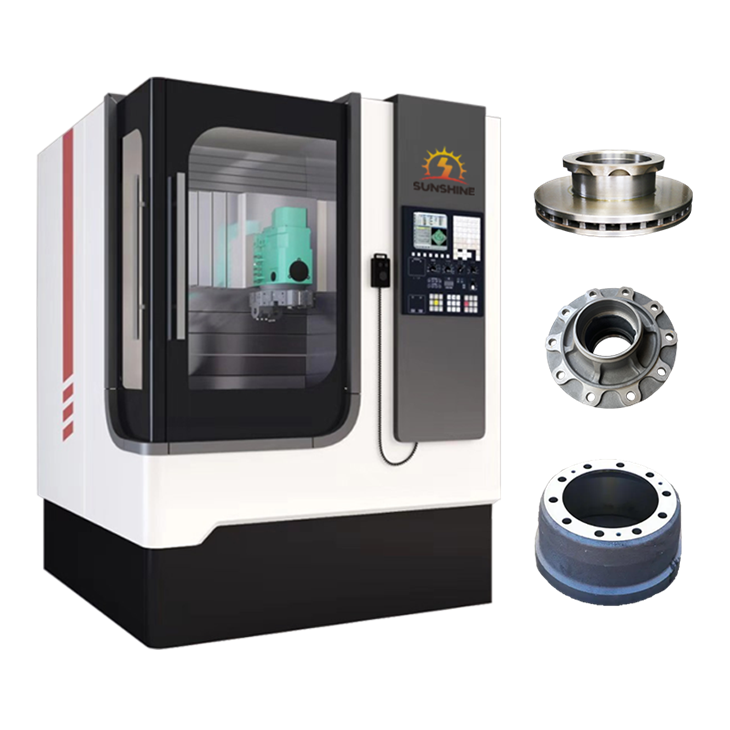

Cnc Lathe Machine For Wheel Hub And Discs

Our Services Pre-sales service: * We are providing ustomized service for our customer,our engineer will design according to your require. * Machine drawings are available. * Configuration is optional. * technical support every day. * View our factory. Selling service: * We will send to you...

Send Inquiry

Specification		unit	VTC50	VTC60	VTC70	VTC80A	VTC100A
Stroke	X axis	mm	500	425	700	670	850
Stroke	Z axis	mm	0-500	90-690	0-850	170-1020	0-1000
Processing capacity	Maximum rotation diameter	mm	φ650	φ650	φ800	φ1000	φ1200
	Maximum turning diameter	mm	φ500	φ600	φ700	φ800	φ1000
	Maximum turning height	mm	500	600	850	850	1000
Spindle	Spindle speed	rpm	100-1000	100-1000	100-800	100-800	100-800
	Spindle motor power	Kw	15	18.5	22	22	22
	Spindle diameter	mm	φ130	φ160	φ160	φ180	φ200
Hydraulic chuck + tool Turret	Chuck model	Hydraulic chuck
	Chuck diameter	inch	15"	18"	21"	24"	32"
	Turret station		Four workstations/ eight workstations	Four workstations/ eight workstations	Four workstations/ eight workstations	Four workstations/ eight workstations	Four workstations/ eight workstations
guide	X-axis rolling linear guide		2 pieces, width 45mm	2 pieces, width 45mm	2 pieces, width 45mm	2 pieces, width 45mm	2 pieces, width 55mm
guide	Z axis rolling linear guide		2 pieces, width 45mm	2 pieces, width 45mm	2 pieces, width 55mm	2 pieces, width 55mm	2 pieces, width 55mm
CNC system	Standard configuration		GSK	GSK	GSK	GSK	GSK
Cooling system	cooling motor	W	450+750	450+750	750+1.2kw	750+1.2kw	750+1.2kw
Cooling system	Pump output	m³/h	4m³/h	4m³/h	4m³/h	4m³/h	4m³/h
Accuracy	Repeatability	mm	±0.003	±0.003	±0.003	±0.005	±0.005
	positioning accuracy	mm	±0.06	±0.06	±0.06	±0.08	±0.08
	smallest positioning unit	mm	0.001	0.001	0.001	0.001	0.001
Weight and dimensions	Dimensions (approx.)	mm	2100×2500×2750mm	2200×2050×2910mm	2400×2100×3200mm	2400×2100×3600mm	3100×2650×3700mm
Weight and dimensions	Gross weight (approx.)	Kg	5500	7500	8000	9000	13500

SUNSHINE machinery offers a comprehensive range of press machine and CNC lathe.Including hydraulic press,compression molding press,deep drawing press,plastic molding machine,CNC vertical lathe machine,CNC drilling machine,CNC machining center etc.
