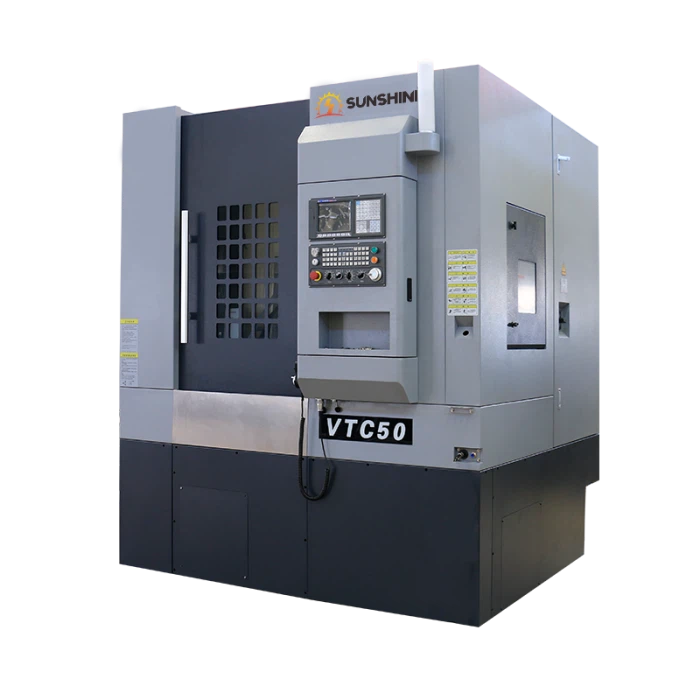

VTC50 CNC Vertical Lathe For Motor Housing
The bed of the VTC50 CNC Vertical Lathe for Motor Housings utilizes ultra-rigid, high-load-capacity roller-type linear guides, significantly enhancing positioning accuracy and load-bearing capacity in both the vertical and horizontal directions.
Equipped with a high-torque servo motor, the VTC50 CNC vertical lathe offers stepless speed control and a wide speed adjustment range, adapting to varying spindle speeds and accommodating both fine and rough machining of parts.
VTC50 Main Specifications
|
Model
|
||||
|
CNC System
|
Siemens/Mitsubishi/Fanuck etc.
|
|||
|
TRAVEL
|
||||
|
X-axis
|
500
|
|||
|
Z-axis
|
500
|
|||
|
CAPACITY
|
||||
|
Max.swing dia.
|
Φ650 mm
|
|||
|
Max.turning dia.
|
Φ500 mm
|
|||
|
Max.turing High
|
500 mm
|
|||
|
SPINDLE
|
||||
|
Max-Spindle speed
|
1000 rpm
|
|||
|
Spindle motor power(servo motor)
|
15 Kw/750 rpm
|
|||
|
Spindle type
|
A2-8
|
|||
|
Spindle shaft hardness
|
HRC58-62
|
|||
|
Dimension-Outside
|
Φ 130mm
|
|||
|
Dimension-inside
|
Φ 55mm
|
|||
|
Chuck &Automatic lathe turret
|
||||
|
Chuck type
|
Hydraulic chuck
|
|||
|
Chuck size
|
15 Inch
|
|||
|
Lathe turret work station
|
Horizontal 8-station
|
|||
|
SLIDE WAY
|
||||
|
X-axis slide way
|
2, width 45mm
|
|||
|
Z-axis slide way
|
2, width 45mm
|
|||
|
Ball screw
|
||||
|
Ball screw accuracy
|
Level P3
|
|||
|
Ball screw diameter X/Z
|
X-Φ40mm/Z-Φ40mm
|
|||
|
ACCURACY
|
||||
|
Repeat positioning
|
±0.005mm
|
|||
|
Positioning
|
±0.01mm
|
|||
|
Least input increment
|
0.001mm
|
|||
|
POWER REQUIRE
|
||||
|
Power source
|
3￠-AC 380V 50Hz±5%
|
|||
|
Working environment temperature and humidity
|
Temperature 5～38°C/humidity <85%
|
|||
|
OTHERS
|
||||
|
Cross weight
|
5.0T
|
|||
|
Packing dimensions
|
2100*2500*2750mm
|
|||
Parts Suitable for CNC Vertical Lathe
Product Details
◆ The CNC vertical lathe's tool turret is available in either a vertical or horizontal multi-station configuration, shortening tool change time and improving work efficiency.

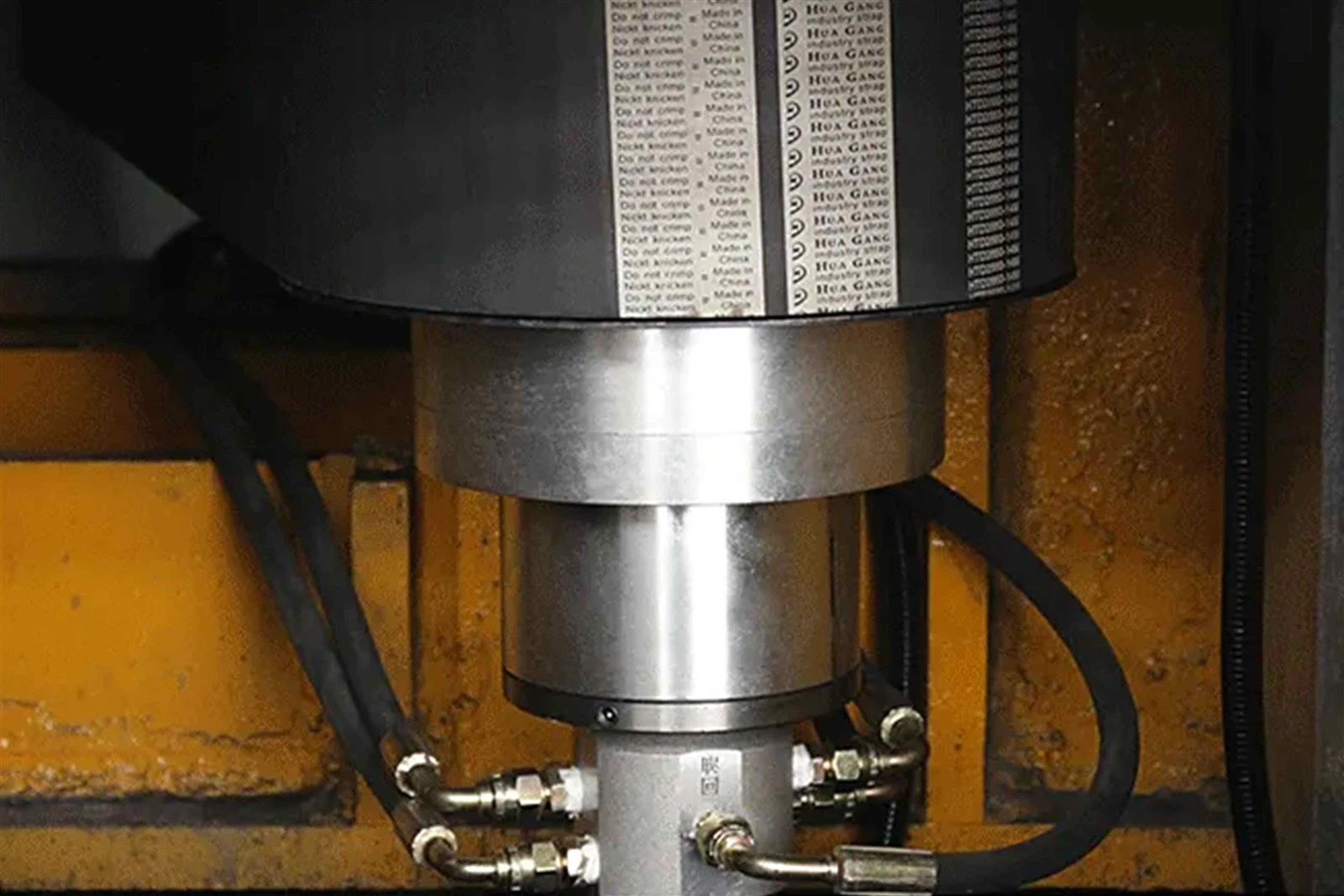

◆ The upper spindle end of the VTC50 CNC Vertical Lathe For Motor Housing can be equipped with a disc table or hydraulic chuck, depending on customer requirements. The lower spindle end can be equipped with a single or double piston cylinder for workpiece control and hydraulic chuck.
◆ The CNC system can be configured with brands such as FANUC, Siemens, Mitsubishi, and Guangzhou CNC, depending on customer requirements.
Main Structure
Horizontal Hydraulic Turret
Automobile manufacturing

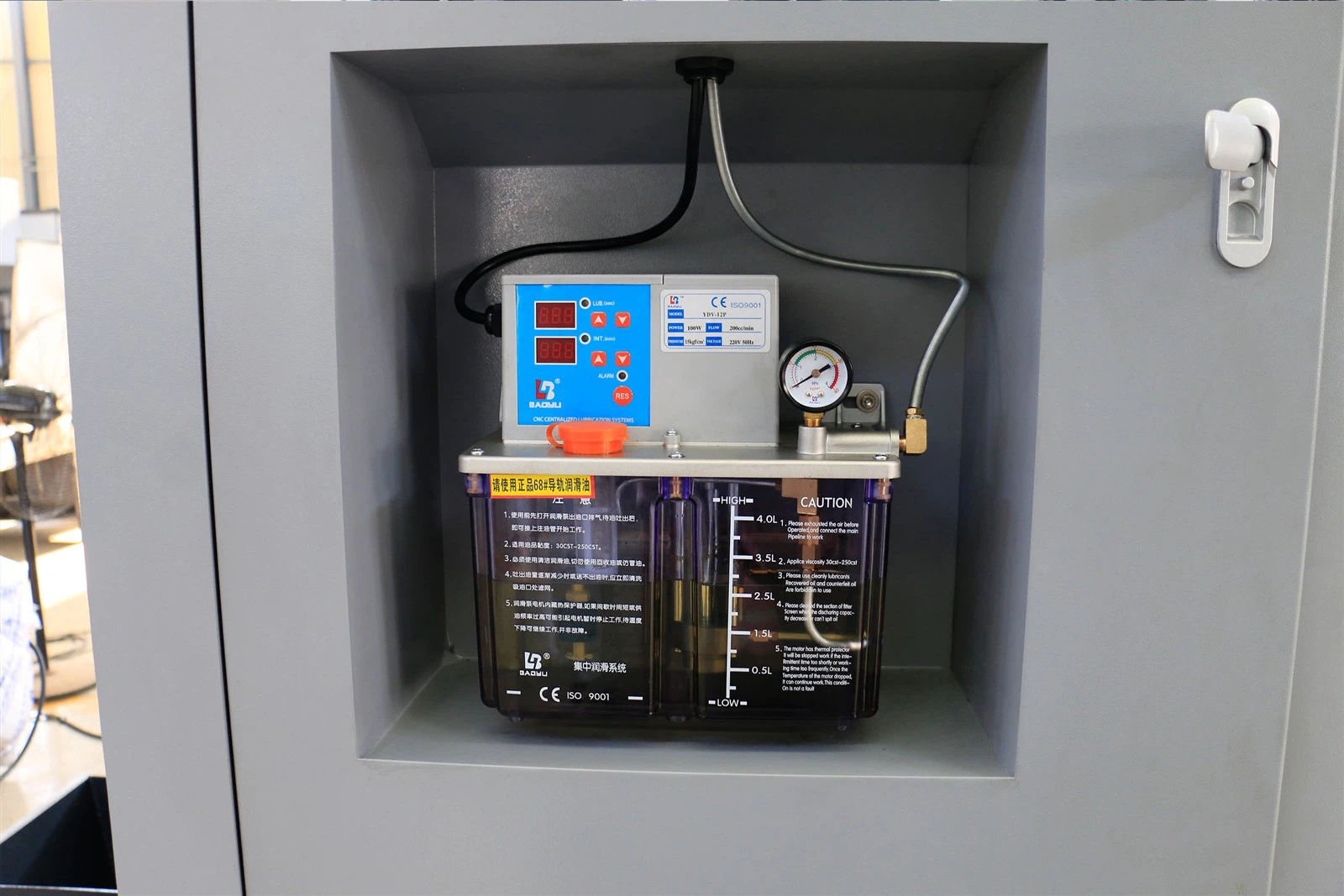

Automatic Lubrication System
Automatic Cutting Removal
Stable Power System
Packaging and Shipping
● Customized packaging available
● Booking services available
● Shipping options include sea, land, and air transportation
● On-site installation and commissioning available
● Trade with customers in over 150 countries worldwide
● Customs clearance services available, including documentation provided
