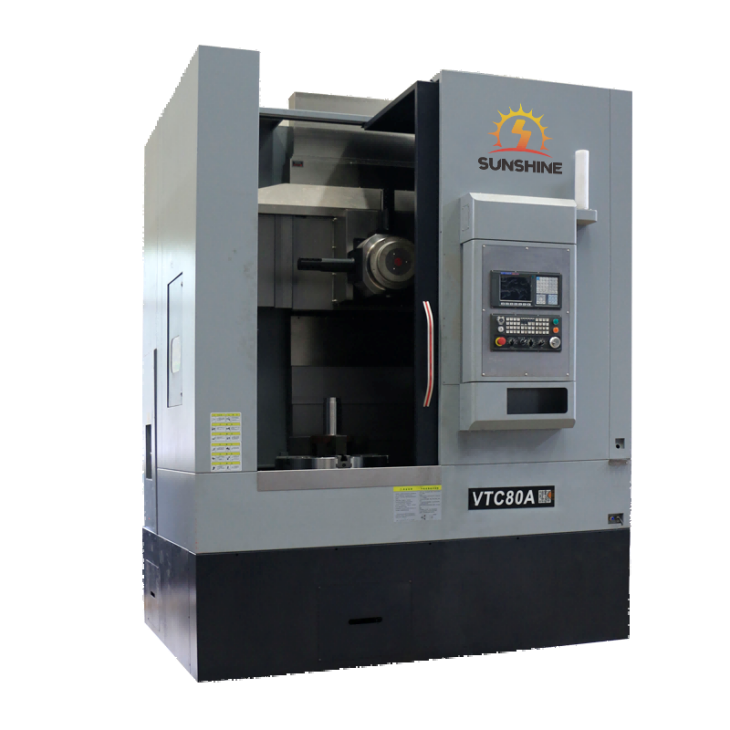

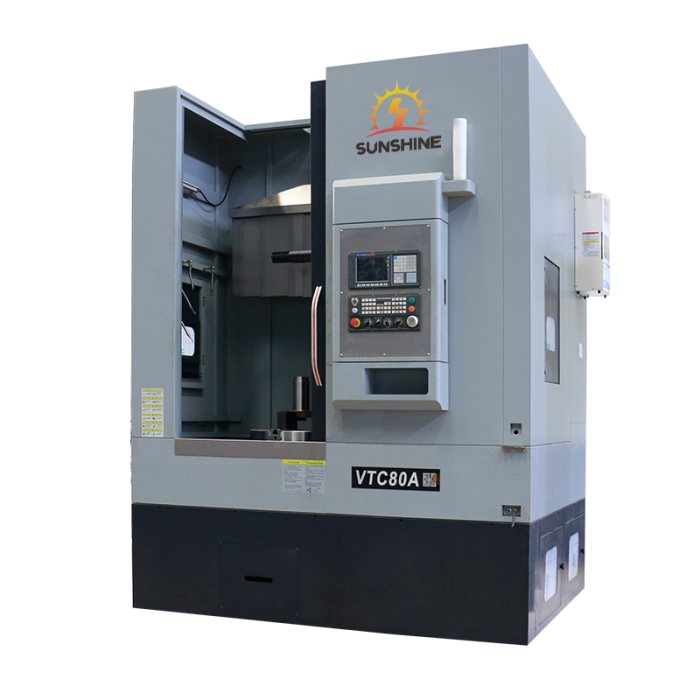

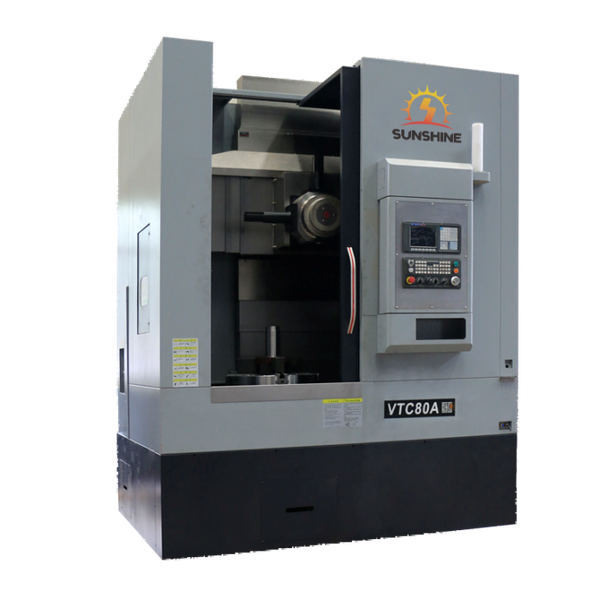

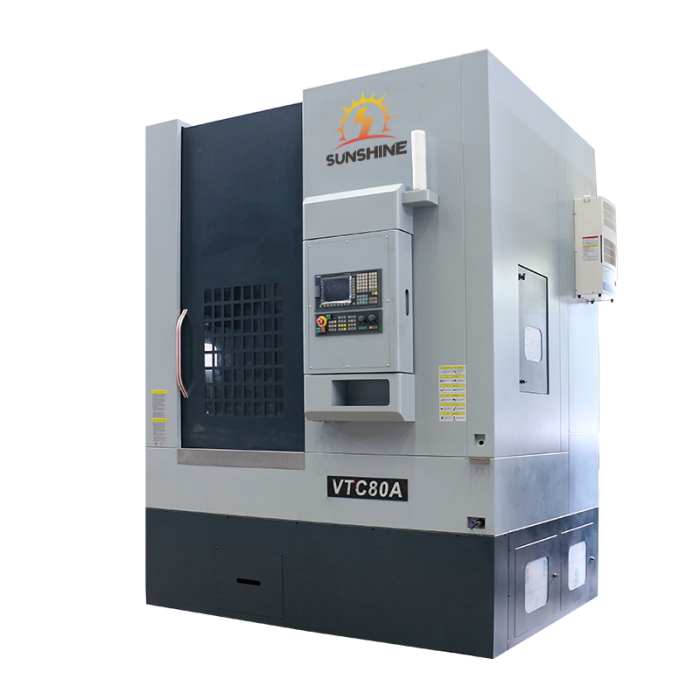

High-precision small and medium-sized CNC vertical lathe VTC80

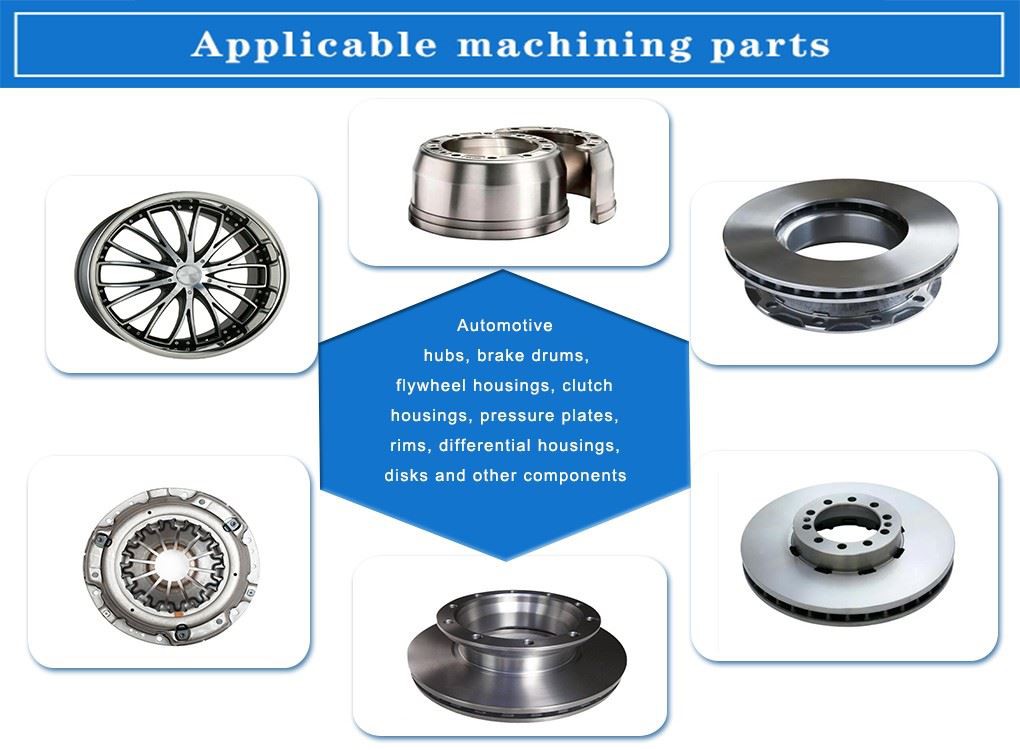

This machine tool is suitable for processing all kinds of large disk parts, and is an efficient, high-precision and high-quality machine tool. The machine tool adopts a double-tool holder structure, which can cut at the same time, which greatly improves the processing efficiency. The machine tool has high torque and high power, and is suitable for occasions that require high processing efficiency, such as large-scale wind turbine bearings, train wheels, etc. According to user needs, it can also be equipped with C-axis and power tool post, which can perform drilling, milling, boring, tapping and other processing on parts.
| Specification | unit | VTC80A | Specification | unit | VTC80A |
| X axis | mm | 670 | Turret station | Four stations/eight stations | |
| Z axis | mm | 200-1050 | X-axis rolling linear guide | 2 pieces, width 45mm | |
| Maximum turning diameter | mm | Φ1000 | Z axis rolling linear guide | 2 pieces, width 55mm | |
| turning diameter | mm | Φ800 | cooling motor | W | 450+750 |
| turning height | mm | 850 | Pump output | m³/h | 4m³/h |
| Spindle speed | rpm | 100-800 | Repeatability | mm | ±0.005 |
| Spindle motor power | Kw | 22 | positioning accuracy | mm | ±0.008 |
| Spindle diameter | mm | Φ180 | smallest positioning unit | mm | 0.001 |
| Chuck model | hydraulic chuck | Dimensions (approx.) | mm | 2400*2100*3600mm | |
| diameter | inch | 24″ | Gross weight (approx.) | kg | 9000 |
Product structure introduction:
The base is an integral base. The headstock and base are designed as a whole. The rigidity is good. The base and column ribs are arranged reasonably. The integral column is directly fixed on the base to make the machine tool have high rigidity; The material is made of high-strength cast iron, which has small deformation and good vibration absorption.
external structure:
We will adhere to the principle of honesty, proactiveness, responsibility, and cooperation, strictly abide by process quality, improve people-oriented management, pursue the management philosophy of customer first, and strive to create industry-famous brands, and provide customers with advanced technology, excellent product quality, perfection and thoughtfulness After-sales service, and strive to move forward to the goal of high-end intelligent equipment. In the future new products, we will meet the needs of our customers with rich experience, technology and highly competitive solutions. All units are welcome to choose the machine tool products produced by our company. We are willing to cooperate with you loyally and develop together.
