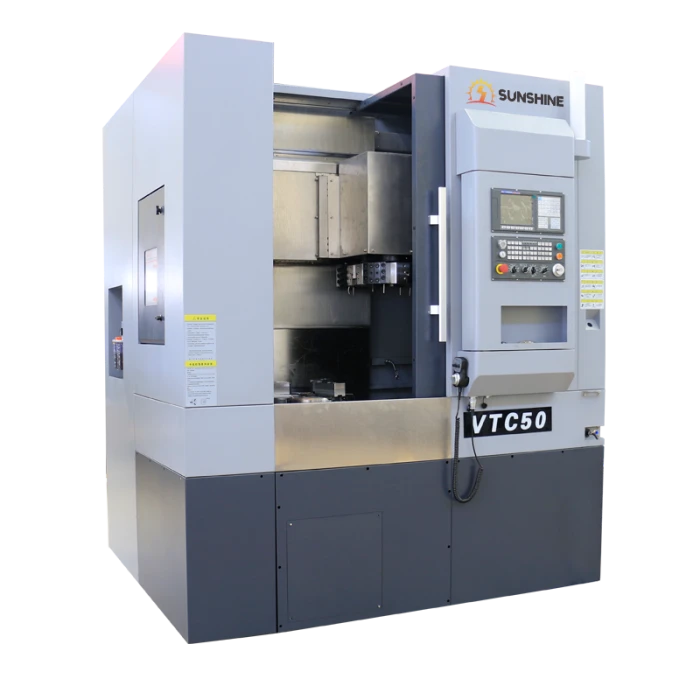

CNC Vertical Lathe for Internal and External Hole Machining

The VTC50 CNC Vertical Turning Lathe Machine is suitable for machining brake hubs, wheel hubs, reducer housings and other automotive parts, elevator wheels, engineering sprockets, valves, motor housings, etc. It can also be used for soft and hard turning of bearings, enabling turning instead of machining.

Products Video

Spindle and Rigidity

Equipped with a high-rigidity servo spindle that maintains powerful torque even during low-speed, heavy-duty cutting.
Spindle speed range: 100–1000 rpm, covering requirements from roughing to finishing.
The spindle nose features an A2-8/A2-11 standard interface; its high-rigidity design ensures vibration-free operation when turning large or irregularly shaped castings.

Multi-Process Composite Machining

Equipped with a high-performance 12/15-station servo turret (live tooling optional), enabling turning, drilling, tapping, and boring in a single setup. This significantly reduces cumulative errors caused by multiple re-clamping operations on large workpieces.

High Machining Precision

Repeatability (X/Z axes): ±0.005 mm.
Positioning accuracy (X/Z axes): ±0.010 mm.
Spindle runout: ≤ 0.003 mm.
Utilizes high-precision C3-grade pre-tensioned ball screws and linear roller guideways, ensuring stable Cpk values even during mass production and meeting the rigorous specifications of the automotive and aerospace industries.

Reliability and Ease of Maintenance

Key components (spindle bearings, ball screws, guideways) are sourced from world-class brands (e.g., NSK/SKF, THK/INA), offering a service life of 5–10 years without major overhauls.
A fully enclosed guarding design combined with a heavy-duty chain-plate chip conveyor effectively prevents chips from scratching the guideways, more than doubling their service life.
Features a centralized, metered lubrication system that eliminates the need for frequent servicing, greatly reducing the daily maintenance workload for operators.

VTC50 Main Parameters

Please contact us if you require configuration changes.

X-axis travel(mm): 500
Z-axis travel(mm): 0-500
Maximum swing diameter(mm): 650
Maximum turning diameter(mm): 500
Maximum turning height(mm): 500
Spindle speed(mm): 100-1000mm
Spindle motor power Power (kW): 15
Spindle Outer Diameter(mm): 130
Chuck Type: 15-inch Hydraulic Chuck

Tool Holder: 4/8-position
X-axis Linear Guides: 2, 45 mm wide
Z-axis Linear Guides: 2, 45 mm wide
CNC System: GSK
Repeat Accuracy(mm): 0.003
Positioning Accuracy(mm): 0.006
Minimum Positioning Unit(mm): 0.001
Dimensions(mm): 2100 x 2500 x 2750
Weight(kg): 5500

CNC Vertical Lathe Bed Structure Features

The VTC50 CNC Vertical Turning Lathe Machine utilizes a nitrogen balancing system that effectively ensures machining performance and extends the machine's service life, while also promoting energy efficiency and environmental sustainability.

It employs size-45 linear guideways, delivering rapid traverse capabilities, exceptional machining accuracy, and high reliability.

The machine features a high-rigidity bed optimized through multiple rounds of finite element analysis, with an enlarged chip discharge angle to ensure smoother chip evacuation.

High-rigidity bearing assemblies ensure stable spindle cutting, while a dual-labyrinth waterproof structure guarantees reliable spindle operation.
