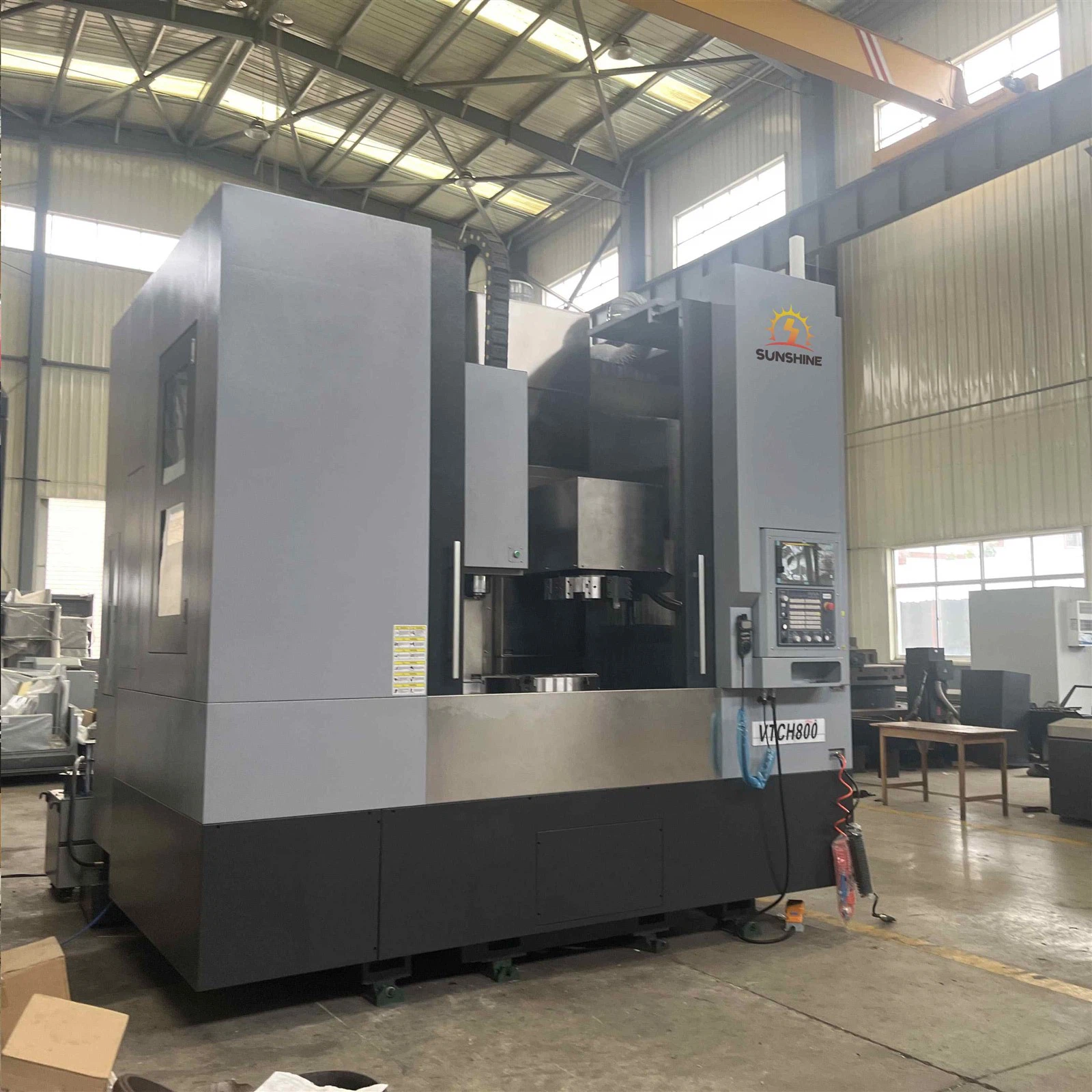

CNC Vertical Turning-Milling Machine Tool
If you are in need of cnc vertical turning-milling machine tool to help with your business, please rest assured to wholesale with us. We are one of the leading such manufacturers and suppliers in China with over 20 years' history. And the customized service is also available.
A CNC vertical turning-milling machine tool is a multi-functional machining equipment that integrates turning and milling functions. Through integrated design, it achieves high-precision machining of complex parts. The advantages of a CNC vertical turning-milling machine tool lie in its multi-process integration, high-precision control, high-rigidity structure, and intelligent operation. CNC vertical turning-milling machine tools are suitable for high-precision manufacturing fields such as aerospace, automotive manufacturing, mold processing, and electronic equipment.
| travel | X-axis, X'-axis | 450mm,450mm | Z-axis, Z'-axis | 600mm,600mm |
| Processing capacity | Maximum slewing diameter | φ700mm | Maximum machining diameter | φ600mm |
| Maximum turning height | 600mm | --- | --- | |
| Spindle | spindle speed | 100-2000rpm | Spindle motor power (direct drive) | 22Kw |
| Spindle end face form | A2-11 | Torque | Rated torque 600 N.M | |
| Minimum indexing of spindle | 1" | Subspindle speed | 50-6000 | |
| Subspindle taper | BT40 | Spindle power (servo motor spindle) | 7.5kw | |
| Distance from spindle nose to worktable surface | 100-700mm | --- | --- | |
| turret,Tool magazine | workstation | 8 | Central High | 125mm |
| Distance between opposite sides of the cutter head | 440mm | Tool magazine type | disc | |
| Tool magazine capacity, tool holder type | BT40-16 | Tool change time | 2.5sec | |
| guide | X-axis rolling linear guide | 2 pieces, width 55mm-1760mm | Z-axis rolling linear guide | 4 pieces, width 45mm-1250mm |
| Cutting cooling system | Cooling motor | 450W | Pump output | 30L |
| Cutting fluid tank capacity | 150L | --- | --- | |
| Factory precision | Repeatability | ±0.005mm | Positioning accuracy | ±0.01mm |
| Minimum positioning unit | 0.001mm | Spindle indexing and positioning accuracy | ±0.002° | |
| Spindle indexing repeatability | ±0.002° | --- | --- | |
| Other equipment parameters | net weight | 9500kg | Floor area (length × width × height) | 3200×2500×3200mm |
Structural Features of CNC Vertical Turning-Milling Composite Machine Tools
Vertical Structure: The spindle of a vertical turning-milling machine tool is perpendicular to the worktable, and the workpiece is typically mounted on a horizontal worktable. This structure is advantageous for machining heavy, large disc-shaped, and shell-shaped workpieces, and facilitates chip removal and cooling.
High-Precision Transmission System: Vertical turning-milling machine tools utilize high-precision ball screws, linear guides, and servo motors to ensure high-precision positioning and smooth movement.
Composite Machining Unit: Vertical turning-milling machines are equipped with a turning spindle and a milling spindle (or a powered turret), allowing for simultaneous or time-sharing turning and milling operations. The powered turret typically has multiple tool positions, accommodating various cutting tools such as turning tools, milling cutters, and drills.
CNC System: Vertical turning-milling machines are equipped with a modern CNC system that supports multi-axis linkage control, enabling the realization of complex machining trajectories and processes.
◆ Increased machining efficiency: Through composite machining, workpiece handling and waiting time are reduced, shortening the production cycle.
◆ Improved machining quality: Error accumulation caused by multiple clampings is reduced, improving workpiece machining accuracy and surface quality.
◆ Reduced production costs: Reduced equipment investment, floor space, and labor costs, improving production efficiency.
◆ High flexibility: Tool changes and machining parameters can be adjusted according to machining requirements, adapting to the machining of various workpieces.
Technical Highlights
1. One-time Forming: The CNC vertical milling-turning machine enables the one-time forming of complex curved surfaces.
2. High-Speed Cutting Technology: CNC Vertical Turning-Milling Machine Tool optimizes spindle speed and feed rate, balancing machining efficiency and surface quality.
3. Modular Design: The vertical lathe can be configured with a power turret, tool magazine, or gear machining module to expand machining capabilities.
4. Green Manufacturing: The CNC vertical milling-turning machine reduces energy consumption and waste emissions through rapid cutting and a centralized lubrication system.
Application Areas
1. Automotive Manufacturing: Used for machining complex parts such as automotive engine blocks, cylinder heads, crankshafts, and wheel hubs.
2. Aerospace: Used for machining high-precision parts such as aero-engine blades, turbine disks, and casings.
3. Mold Manufacturing: Used for machining complex curved surfaces such as mold cavities, cores, and sliders.
4. Energy Equipment: Used for machining large parts such as wind turbine main shafts and gas turbine blades.
5. General Machinery: Used for machining various shafts, discs, sleeves, and other mechanical parts.
