Precision CNC Machining Center
Precision CNC Machining Center

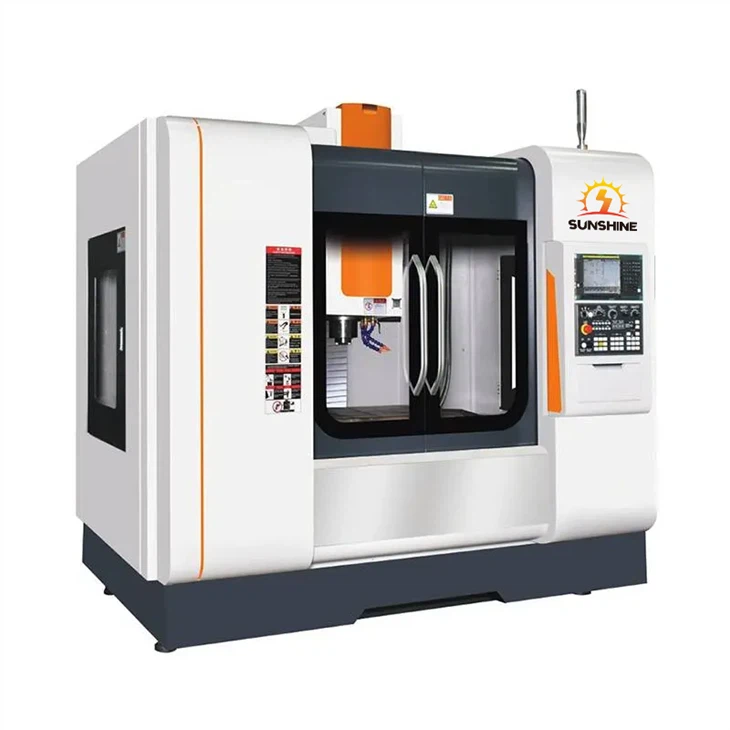

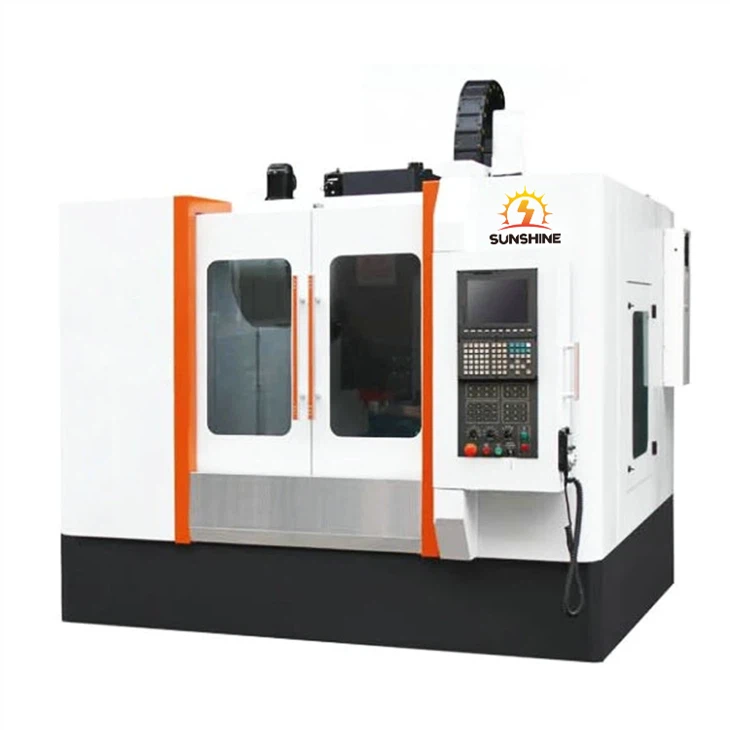

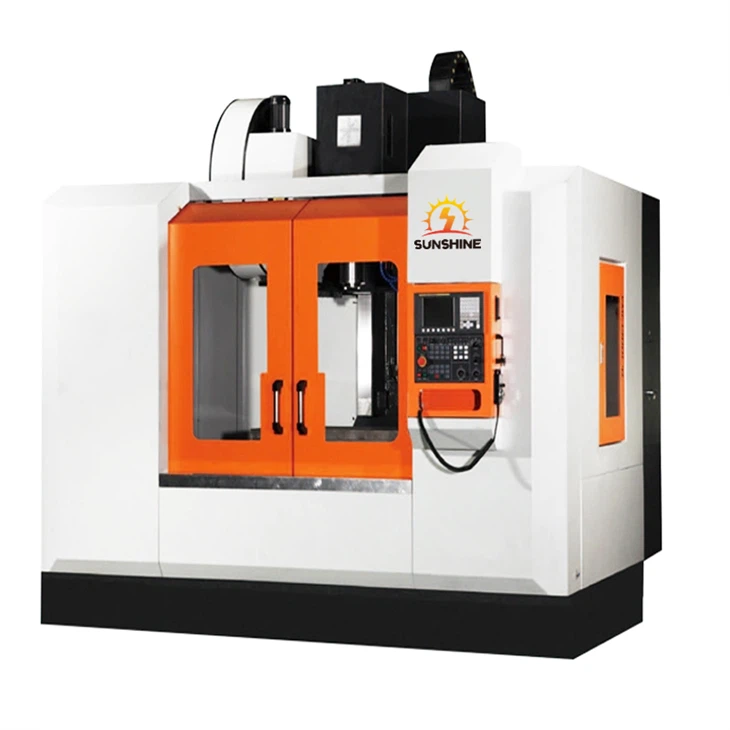

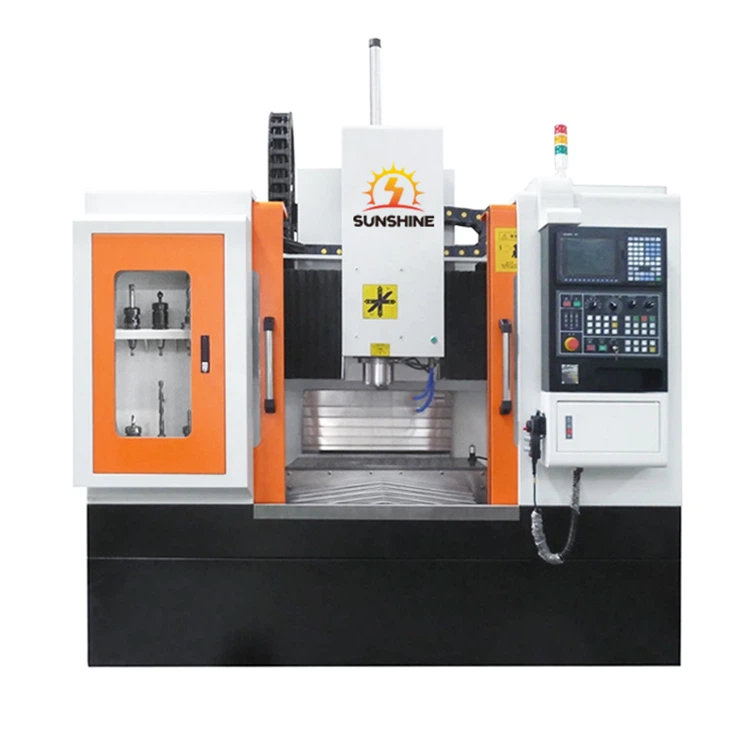

Vertical machining center
Precision machining centers have paved the way for the manufacturing of complex and intricate parts with high precision and accuracy, making it an indispensable tool in the machine industry.
Medium to high speed
Heavy cutting

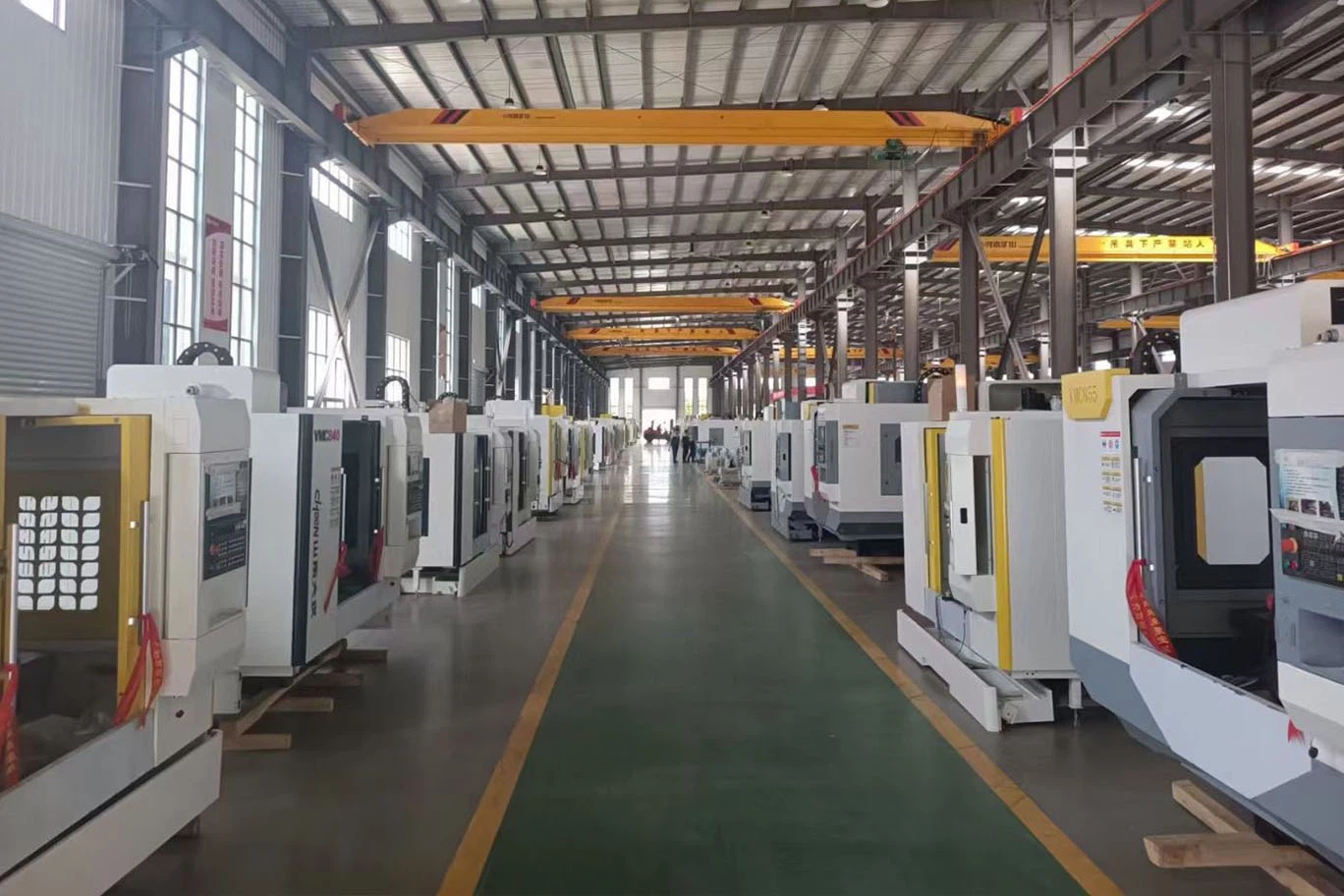

Comprehensive machining center
| Specifications | unit | VMC1160 |
| Table size | mm | 1200x600 |
| Table maximum load | kg | 1000 |
| X/Y/Z axis travel | mm | 1100x600x600 |
| Distance between spindle centerand column | mm | 650 |
| Distance between spindle endface and worktable surface | mm | 120-720 |
| X/Y/Z Max. feed speed | mm/min | 10000 |
| X/Y/Z Max. Rapid traverse | m/min | 32/32/30 |
| spindle speed | r/min | 8000 |
| spindle taper | type | BT40 |
| Spindle motor power | kW | 11/15 |
| X/Y/Z axis servo motor power | kW | 4/4/5 |
| X/Y/Z motor connection | Direct | |
| X/Y/Z Guide way type | third line | |
| T slot | mm | 5-18x100 |
| Repeat positioning accuracy | mm | ±0.005 |
| Tool magazine | disc type | |
| Tool capacity | 24T | |
| Maximum tool weight | kg | 8 |
| Max. tool length | mm | 300 |
| Electric capacity | kVA | 18 |
| Machine dimension(LxWxH) | mm | 3100x2490x2380 |
| Net. weight (about) | kg | 7000 |
Product Performance

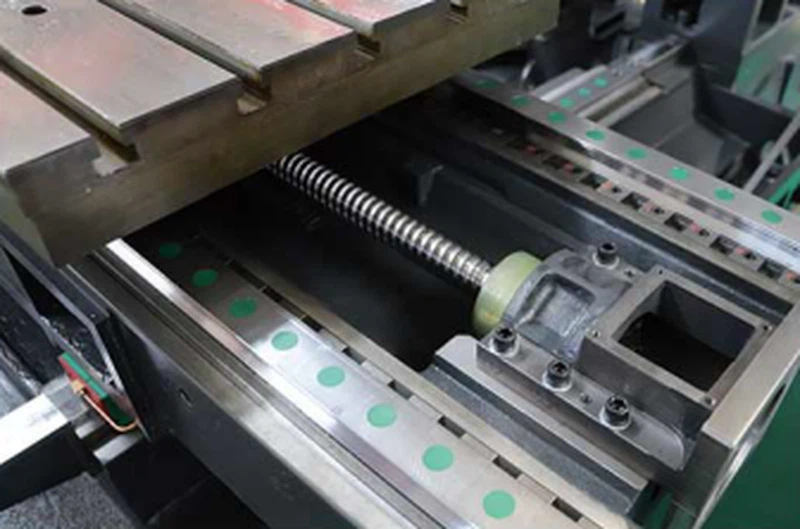

High-precision
transmission system
The machining center is equipped with a high-precision transmission system. The linear guide adopts the P4 precision standard, which ensures that the guide has extremely high straightness and stability during movement. It can provide precise guidance for each motion axis of the machining center and effectively reduce motion friction and vibration. The ball screw adopts the C3 precision standard, which can accurately realize the conversion of rotary motion to linear motion and has extremely high repeatability.
Well-known brand spindle
The Precision CNC Machining Center BT40/BT50 spindle has a high spindle speed, enabling rapid material removal during high-speed cutting, significantly shortening the machining cycle and greatly improving production efficiency. Simultaneously, the Precision CNC Machining Center spindle employs advanced manufacturing processes and precision assembly technology in its structural design, ensuring extremely high stability even during high-speed rotation and effectively reducing machining errors caused by vibration.
Suitable for batch parts processing
At its core, a precision machining center is a state-of-the-art machine with the ability to produce highly accurate parts with intricate details. The machining center is composed of several components such as a cutting tool, spindle, and workpiece holder that work in tandem to execute complex machining operations. These operations include milling, drilling, turning, and grinding, among others.
CNC system
One of the significant advantages of having a precision machining center is the accuracy it provides. With modern technology such as computer numerical control (CNC) programming, the machine can execute accurately specified dimensions and tolerances within fractions of a millimeter. As a result, it eliminates the error margin that comes with traditional machining methods, improving the overall quality of the product.
Machining Fields
Machining centers possess high precision, high efficiency, and automated processing capabilities, enabling them to process various types of workpieces. They are widely used in industries such as machinery manufacturing, automotive, aerospace, mold making, electronics, and energy.
Precision machining centers have revolutionized the manufacturing industry. With their high accuracy, efficiency, and versatility, they have become indispensable tools for producing complex and intricate parts. Whether it's for the aerospace, automotive, medical, or other industries, precision machining centers provide manufacturers with reliable solutions to meet their diverse needs.
