Products Description

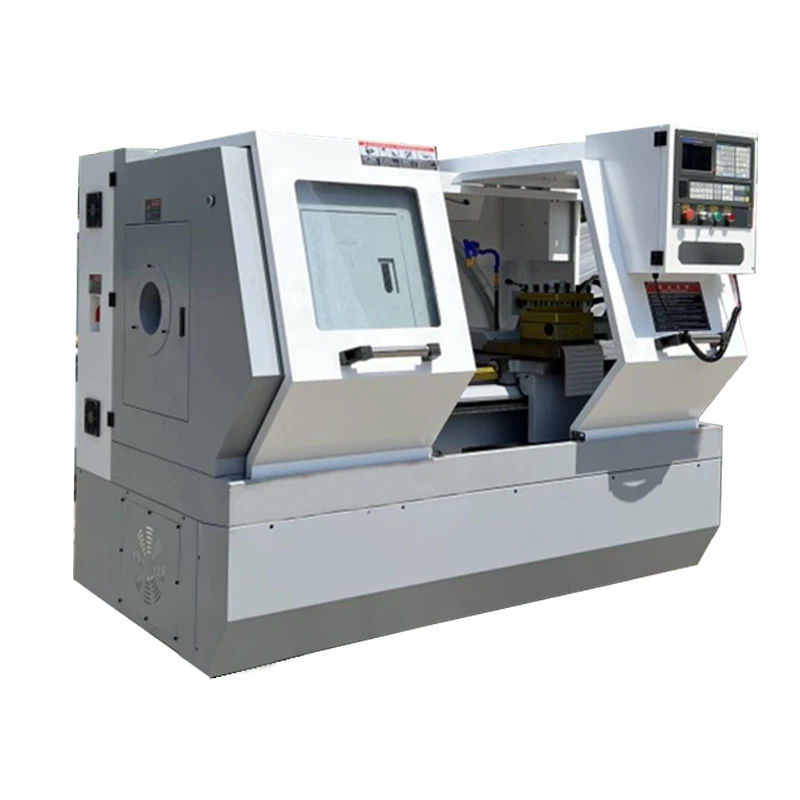

The CK series CNC lathes are CNC horizontal lathes with both vertical (Z) and horizontal (X) coordinate control. They can automatically perform machining operations on various shaft and disk parts, including internal and external cylindrical, conical, arc, end faces, grooving, and chamfering. They are also capable of turning metric straight and end threads, as well as imperial straight and tapered threads. The CK6150 horizontal CNC lathe is suitable for the production of a wide variety of products in small to medium batches, and is particularly effective for complex, high-precision parts.

Features

▲High-strength cast iron, integrally cast bed
▲Precision ball screw
▲High-frequency hardened guide rails with inlaid high-quality wear-resistant plates
▲Automatic centralized lubrication

▲Automatic centralized lubrication
▲Premium accessories and fully enclosed protective design
▲High-precision, high-rigidity feed shaft
▲Comprehensive machine configuration

Main Parameters

Maximum bed swing diameter: Φ500mm
Maximum carriage swing diameter: Φ275mm
Maximum cutting diameter: Φ500mm
Maximum machining length: 1000mm
Maximum X/Z axis travel: 275/1000mm
Minimum X/Z axis displacement unit: 0.001mm
Spindle through-hole diameter: 82mm

Spindle speed limit: 12-1600rpm
Spindle end: A2-8
Main motor power: 7.5kW
X/Z axis rapid traverse speed: 6/8m/min
Tool turret type: 4-station electric turret
Tool turret repeatability: ≤0.004mm
Tailstock quill diameter: Φ75mm
Tailstock quill travel: 130mm

Features of the CK6150 horizontal CNC lathe

●The CK6150 horizontal CNC lathe features an optional, unique electronically controlled automatic shift mechanism, enabling automatic switching between high, medium, and low gears and continuous program operation, significantly improving machining efficiency.

●The CK6150 horizontal CNC lathe's exterior protection design reflects international trends, offering a novel and unique design that is waterproof, chip-resistant, and easy to maintain, reflecting the spirit of the times.

●The CK6150 horizontal CNC lathe features a large spindle bore diameter, strong bar stock handling, and a wide range of applications.
