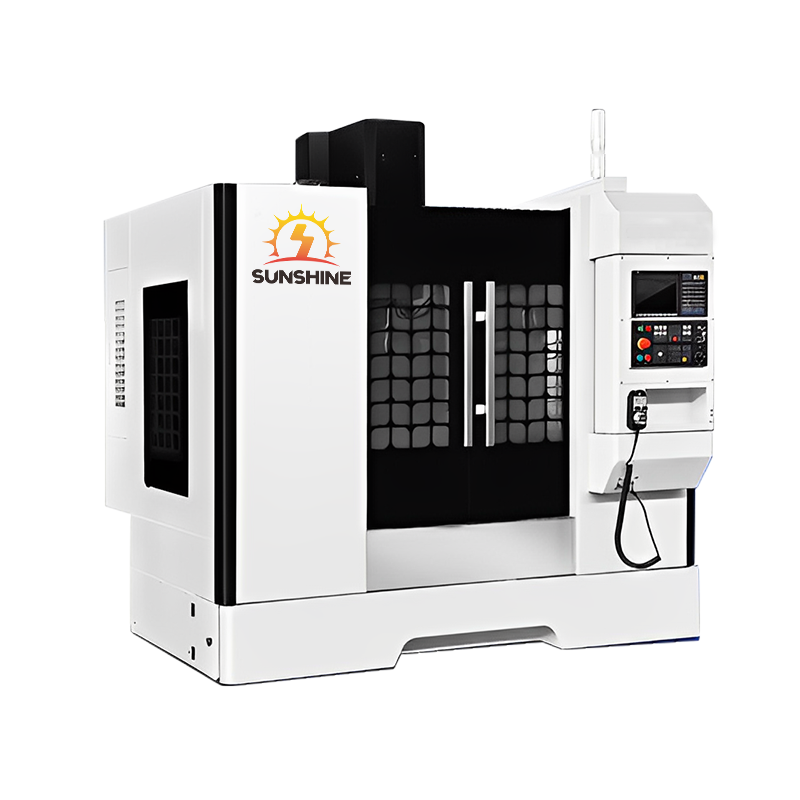

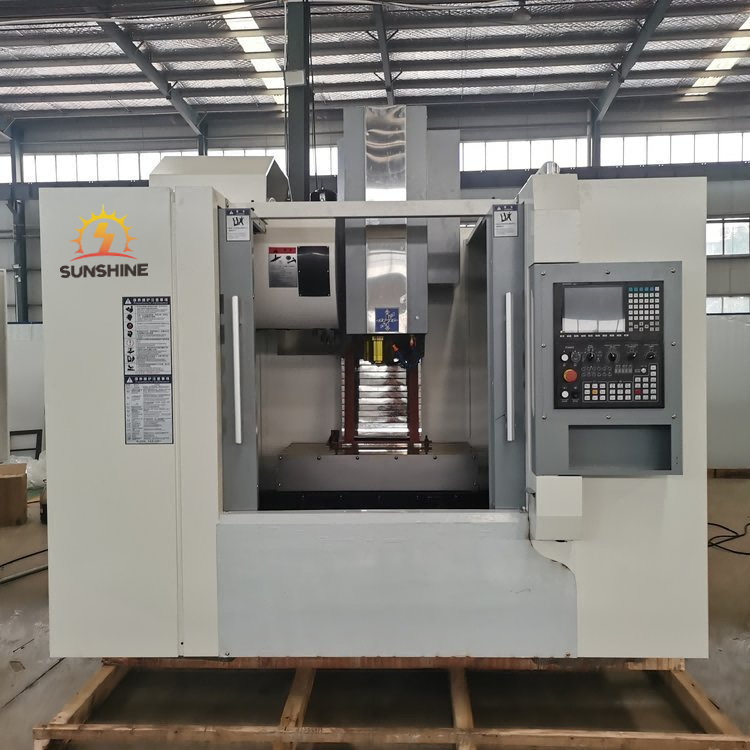

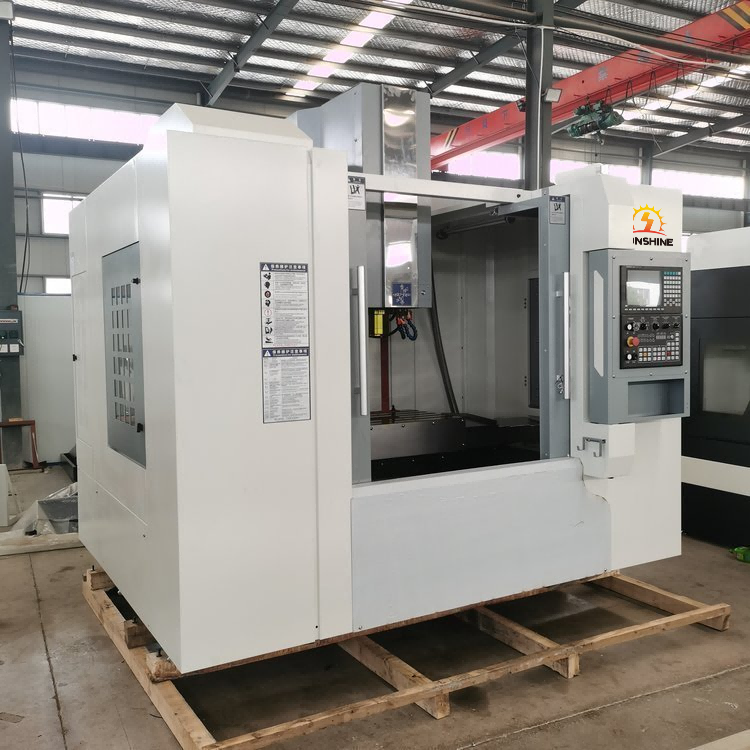

VMC CNC Machining Center

If you are in need of vmc cnc machining center to help with your business, please rest assured to wholesale with us. We are one of the leading such manufacturers and suppliers in China with over 20 years' history. And the customized service is also available.

VMC CNC Machining Centers feature an expanded working envelope compared to standard models, delivering far better structural rigidity.The table saddle adopts reinforced construction, while spindle motor power options include 5.5kW, 7.5kW, 11kW, 15kW and 18kW to match different machine specifications.Fitted with an extra-wide base and column, plus heavy-duty high-rigidity roller linear guides on all three axes, the machine maintains exceptional table stability throughout full travel movements.Both X and Z axes are equipped with six slide blocks, greatly boosting load capacity and structural rigidity. The design effectively dampens vibration during heavy cutting operations, resulting in superior workpiece precision and finer surface finish quality.Built with long travel and high rigidity as standard, this VMC model perfectly caters to the processing requirements of most steel components.

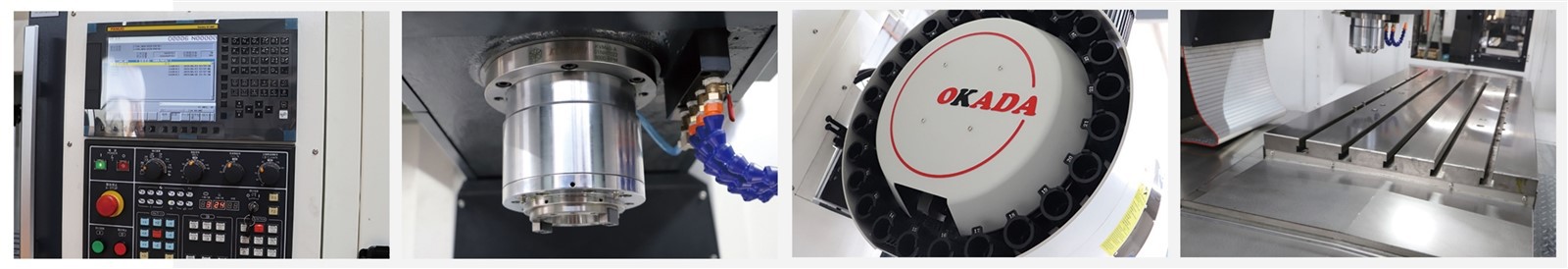

◆ Controller
This VMC machining center is equipped with GSK CNC system as standard configuration. Customers can also choose upgraded control systems including Mitsubishi, Siemens, FANUC and KND according to actual production needs. The control system delivers stable running performance and comprehensive functional support. Designed with crystal keys and an ergonomic operation layout, it provides a comfortable, safe and straightforward operating experience for operators.

◆ Tool Magazine
Adopting a base-mounted disc 24-tool magazine, this structure effectively lowers the weight load exerted on the machine column. Tool pot replacement is simple and time-saving. The built-in cam-driven tool change mechanism ensures steady tool switching and highly accurate positioning all the time.

◆ Electrical Box
The machine's electrical cabinet is fitted with an integrated heat exchanger, which keeps the CNC control system running steadily for long-term continuous operation. All external cables and pipelines are wrapped with serrated protective conduits, offering solid waterproof, heat insulation and oil leakage prevention performance.

◆ Belt-Driven 10,000rpm Spindle
The VMC CNC Machining Center comes standard with a belt-driven spindle reaching 10,000rpm. It operates smoothly with low noise and minimal vibration, ideal for high-speed precision machining tasks.

◆ Automatic Pressure Relief Lubrication System
Multiple coolant nozzles arranged around the spindle efficiently dissipate cutting heat generated during machining. The machine adopts a centralized oil supply design equipped with a premium pressure relief intermittent lubrication system. It supplies lubricant to each lubrication point in timed, quantitative and pressure-regulated mode separately, making sure every moving part gets sufficient and timely lubrication.

Application Areas

Click to contact us and we'll recommend suitable equipment for you.

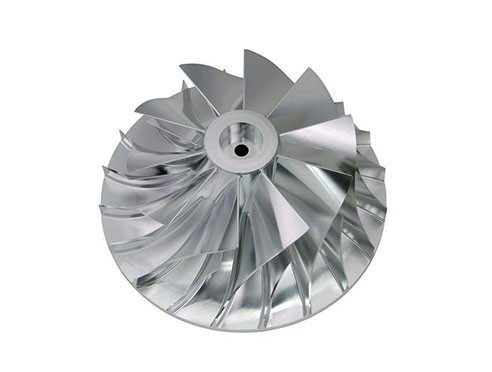

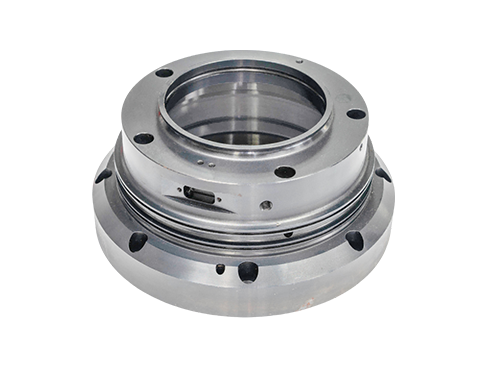

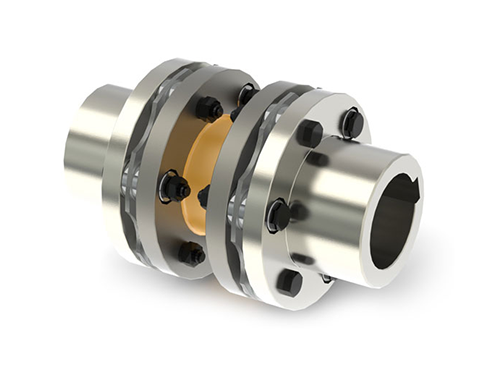

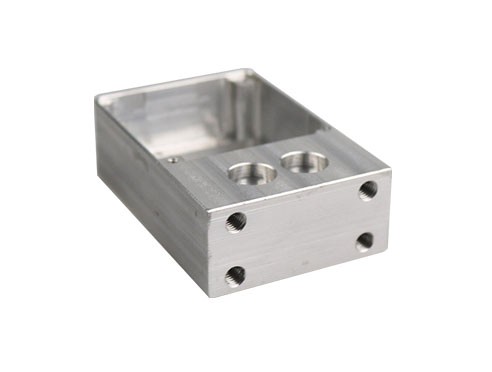

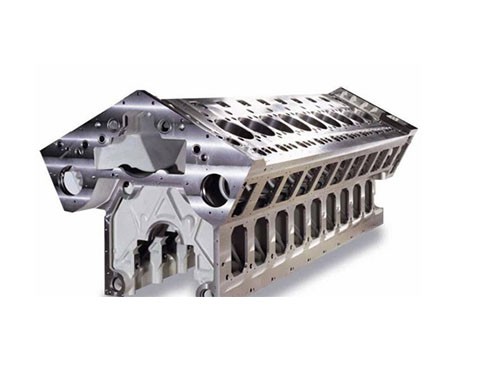

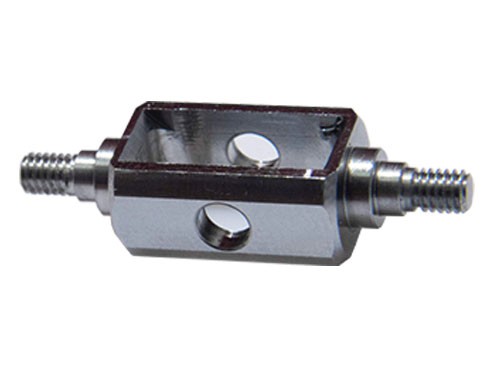

VMC CNC machining centers integrate milling, drilling, boring and tapping functions, enabling one-setup completion of cavity and surface machining tasks.They are ideal for batch production of non-rotational workpieces, complex profiled parts, multi-face and multi-hole components, as well as mold-related parts.Typical application parts include watch housings, pump housings, valve bodies, end covers, flanges, gear and similar mechanical components.



Main parameters of popular models



We can provide drawings or product images to help you choose the equipment you need.

VMC850

Table size: 1000*500mm

Maximum Table Load: 500kg
X/Y/Z axis travel: 800x500x500mm
X/Y/Z maximum rapid traverse speed: 32/32/30mm/min
Spindle speed: 8000r/min
Spindle motor power: 7.5/11kw

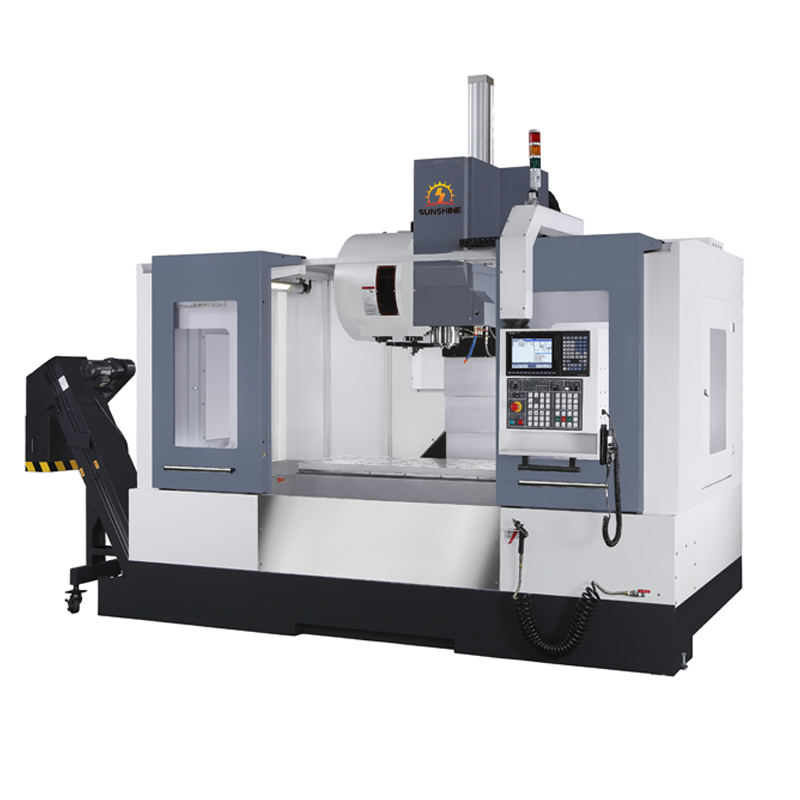

VMC855

Table size: 1000*550mm

Maximum Table Load: 500kg
X/Y/Z axis travel: 800x550x550mm
X/Y/Z maximum rapid traverse speed: 32/32/30mm/min
Spindle speed: 8000r/min
Spindle motor power: 7.5/11kw

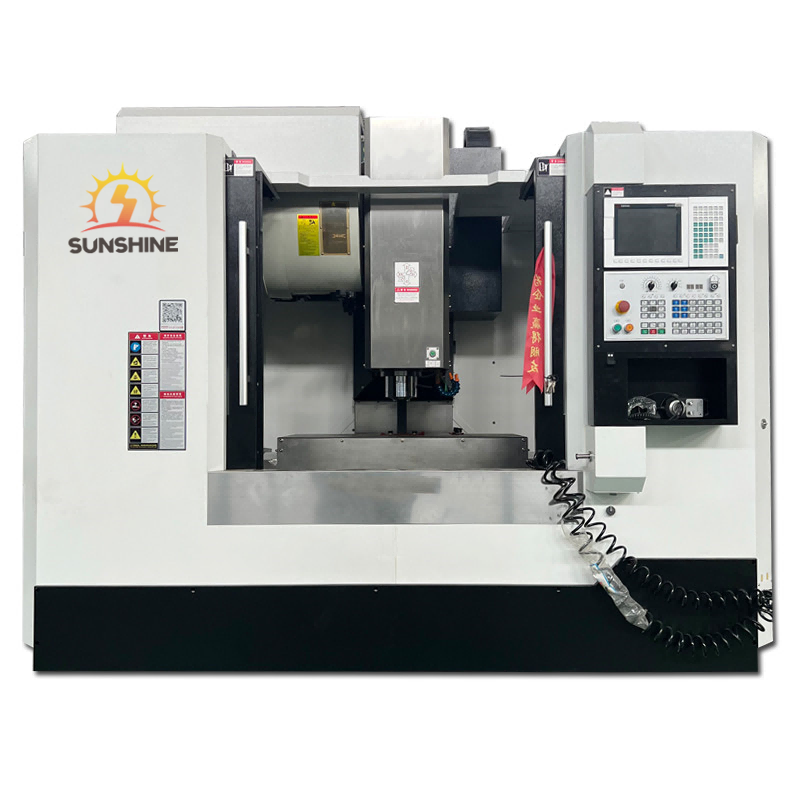

VMC1160

Table Size: 1200*600mm
Maximum Table Load: 1000kg
X/Y/Z Axis Travel: 1100x600x600mm
Maximum Rapid Traverse Speed ​​(X/Y/Z): 32/32/30mm/min
Spindle Speed: 8000r/min
Spindle Motor Power: 11/15kw

VMC1370

Table Size: 1500*700mm
Maximum Table Load: 900kg
X/Y/Z Axis Travel: 1300x700x700mm
Maximum Rapid Traverse Speed ​​(X/Y/Z): 20/20/15mm/min
Spindle Speed: 8000r/min
Spindle Motor Power: 11/15kw

We can supply all required certification documents in compliance with regulatory standards across different countries, including CE certification.

■ Round-the-clock online support is always available. We customize VMC CNC machining centers to match your actual production output and machining requirements.

■ We offer a 24-month warranty. All replacement parts are provided free of charge during the warranty term.

■ We deliver one-stop full solutions for all machining projects.

■ Free trial machining and workpiece testing are provided for your verification.

■ We provide global on-site installation, commissioning and technical training services for customers worldwide.
