We provide customization service according to our customer needs.

All electrical parts are using international brand,such as:Schneider,etc.

Sealing element adopt imported material.

All machine parts are using international brand,such as:Rexeoth,Siemens,etc.

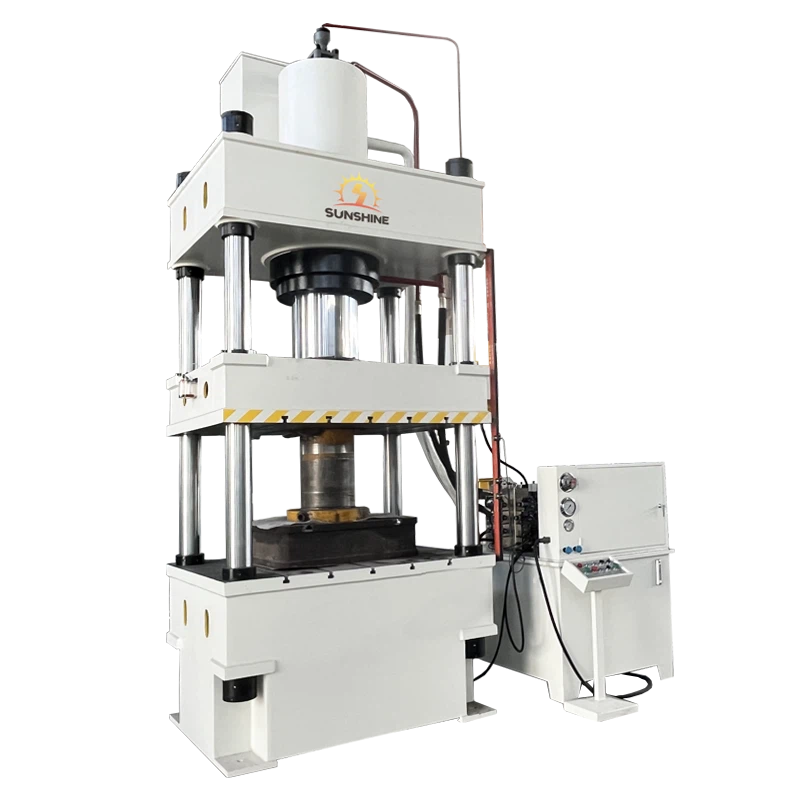

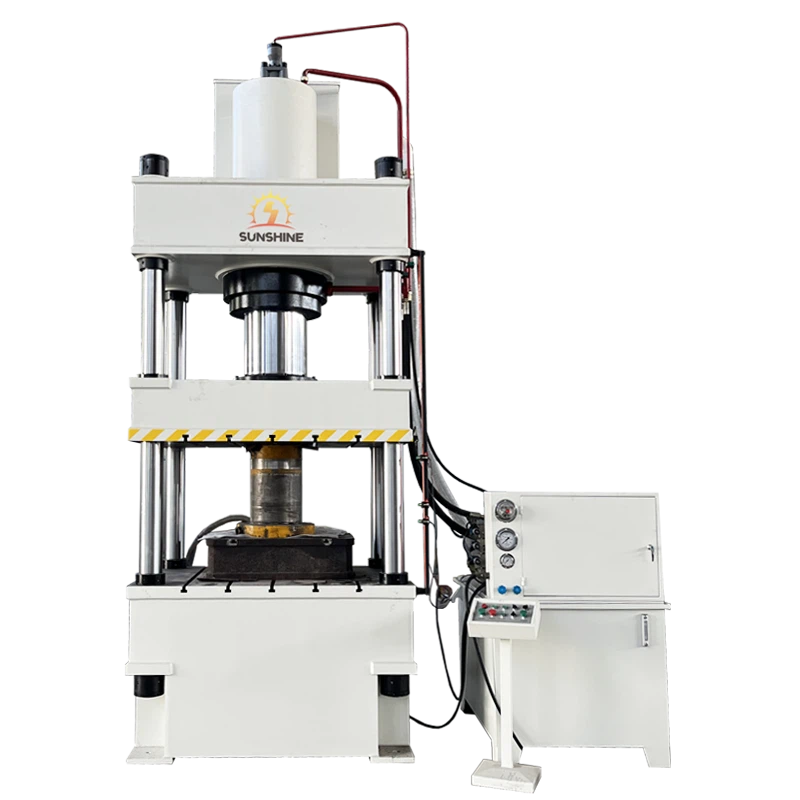

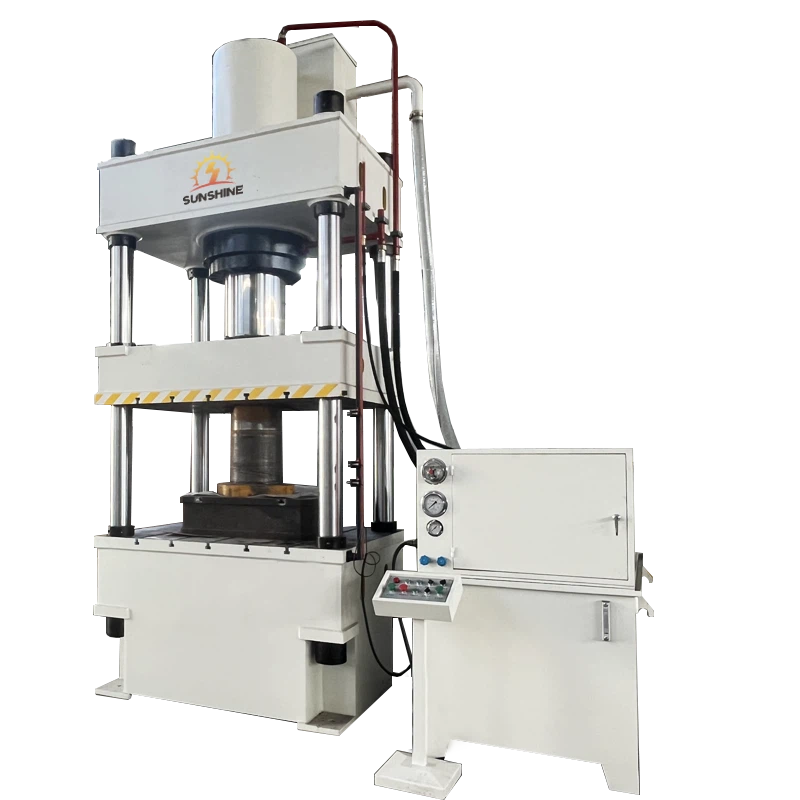

Multi-Angle View

Main parameters

Technical Parameters		Y32-500T High Pressure Hydraulic Press
Nominal pressure(KN)		5000
System pressure(Mpa)		25
Slider stroke(mm)		700
Maximum opening height(mm)		1000
Effective size of workbench	The left and right sides	1400
	The front and rear sides	1400
Slider speed(mm/s)	ldle stroke	120
	Feeding	15
	Back tracking	130
Ejection force(KN)		630
under cylinder stroke(mm)		260
Motor power(KW)		22×2

Products video

Main Details

Equipped with a Hopper and Automatic Feeder

Simply pour the powdered raw material into the hopper; the automatic feeder will then convey the material directly into the mold, completely eliminating the need for manual feeding.

PLC Control System

Every stage of the compression process is precisely controlled by a PLC (Programmable Logic Controller). The entire operation is automated and continuous, requiring no constant manual supervision.

Modular Mold Frame Design

The molds are mounted within a dedicated frame structure. When switching to a different product model, the mold can be swapped out in just a few minutes - offering unparalleled convenience.

Integrated Cartridge Valve Technology (Minimized Leak Points)

We utilize an integrated hydraulic control system featuring cartridge valves, rather than relying on traditional, spliced piping assemblies. Fewer pipes naturally result in fewer potential leak points; additionally, the integrated valve block design minimizes hydraulic shock, thereby enhancing the equipment's overall durability. Should a specific valve ever fail, only that individual valve needs to be replaced - eliminating the need to dismantle an entire network of pipes.

Core Hydraulic Components from International Brands

For critical components - such as the oil pump, seals, and valve assemblies - we exclusively employ products from top-tier international brands or those of equivalent quality. The seals are capable of withstanding a system pressure of 25 MPa, ensuring leak-free performance even during prolonged use. Furthermore, the high-quality oil pump and valve assemblies guarantee rapid response times, achieving approach speeds of 120 mm/s and return speeds of 130 mm/s.

Hydraulic Circuit Optimized for Sustained Pressure Holding

Unlike the compression of standard industrial parts, the production of salt blocks requires the hydraulic system to maintain high pressure for extended periods. Our hydraulic circuit is specifically engineered to meet this requirement: it ensures stable, leak-free pressure retention during the holding phase; maintains reasonable oil temperatures (preventing overheating during continuous operation); and utilizes a variable-displacement pump to supply hydraulic fluid on demand during the holding phase, thereby minimizing electricity consumption.

Our advantage

Rapid Response

The idle travel and return speeds of this high pressure hydraulic press exceed 120 mm/s, ensuring high production efficiency.

Energy-Efficient

Despite being equipped with a dual-motor system, its energy consumption is lower than that of comparable older-generation equipment, resulting in significant long-term savings on electricity costs.

Hydraulic System Designed to International Standards

Utilizing the ISO 4413 international standard - combined with PLC-based alarm diagnostics and a modular cartridge valve design - this system is familiar to engineers worldwide. Regardless of the client's location, local technical personnel can easily understand and service the equipment. The system features established protocols for piping connections and component selection, minimizing the likelihood of operational issues.

Labor-Saving

Featuring automatic feeding and PLC control, a single operator can monitor multiple machines simultaneously, thereby substantially reducing labor costs.

Compact Footprint

Compared to other hydraulic presses of the same tonnage currently on the market, our machine boasts a more compact design; it delivers the same 500-ton pressing force while occupying a significantly smaller floor area.

Application Scope

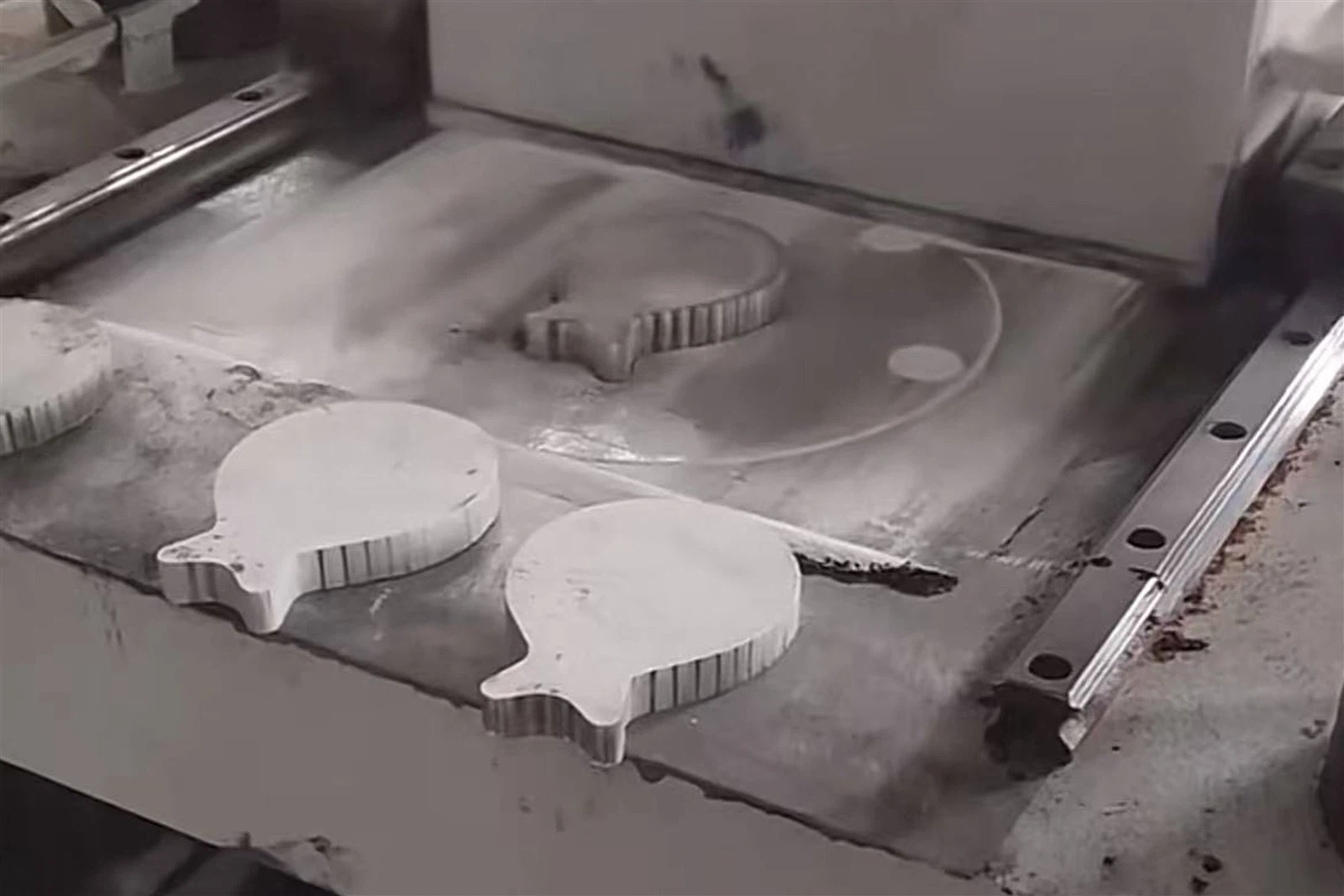

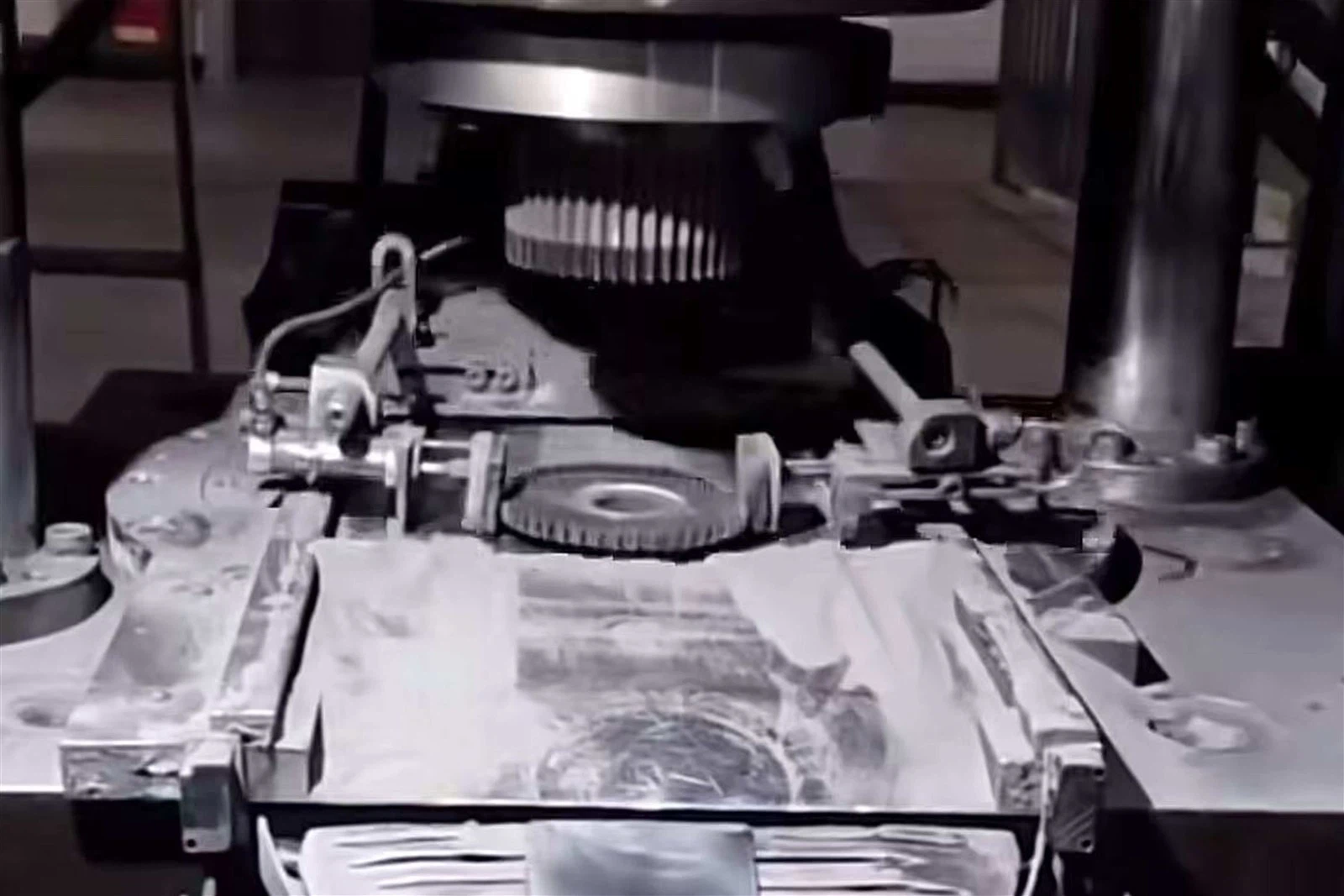

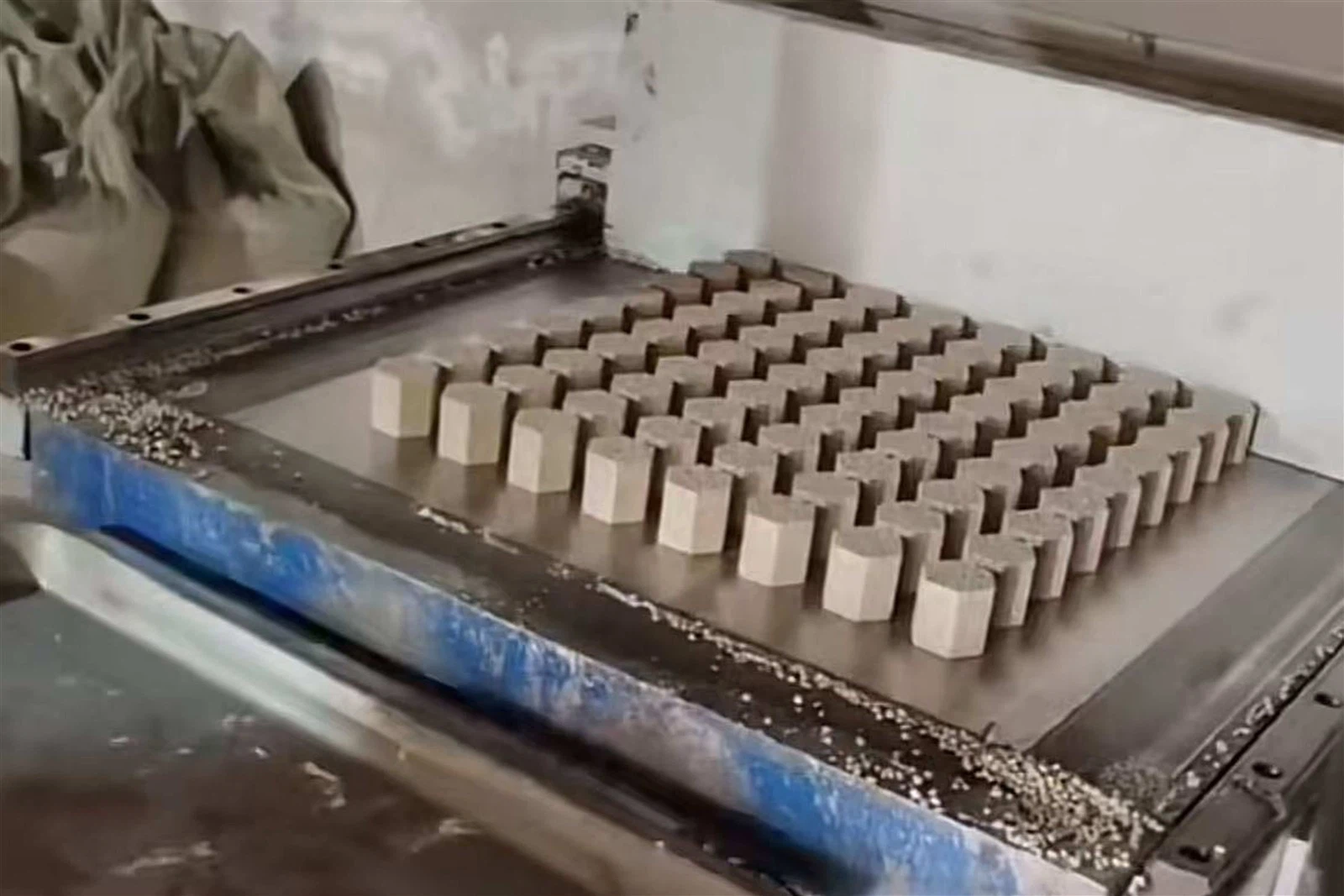

This High Pressure Hydraulic Press apply to compression molding about powder products,abrasive products,plastic products as well as insulating materials.

Such as:animal feeding blocks, fertilizer tablets, livestock salt licking blocks, Animal Licking Block,seeding nutrition soil tablet, calcium tablet,effervescent tablets, bath salts tablets.
