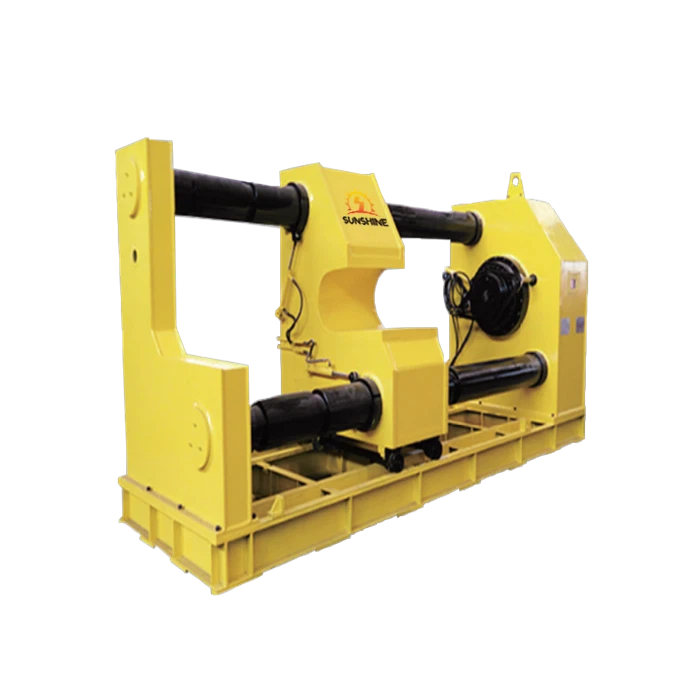

500T Train Axle Hydraulic Press Machine

External Cylindrical Grinding

The column, cylinder, and piston rod are made of 45# round steel and undergo external cylindrical grinding to ensure roundness and surface finish.





Annealing Treatment

The crossbeam is made of high-quality steel plate and then annealed to eliminate internal stress.

Medium-Frequency Hardening

The column, cylinder, and piston rod undergo medium-frequency hardening, significantly increasing surface hardness, reducing losses during operation and transportation, and extending service life.





Vibration Aging

Structural components undergo vibration aging treatment to eliminate internal stress and prevent deformation.

500T Axle press, also called axle press and train axle press, is a new type of mechatronics confidential machine tool, a type of hydraulic press, which is widely used for pressing, assembling and disassembling various parts, such as bearings It is a high-performance, high-precision, high-performance, high-precision, high-performance, high-performance, high-precision Efficient press equipment.

The axle press is mainly composed of: cylinder seat, sliding beam, pull column, support beam, machine seat, electrical part and hydraulic part. The cylinder seat and the movable beam form a tension frame by two columns. The rear bracket plays the role of supporting the column. The movable beam is driven by a motor and can travel on the guide rail to meet the pressing and disassembly of workpieces of different lengths. There is a card on the left side of the movable beam. Iron, fix it in a certain position, when the disassembly and assembly of the workpiece is fixed, the assembly and disassembly of the workpiece are completed by the expansion and contraction of the hydraulic cylinder.

The train axle hydraulic press is a specialized hydraulic press designed and manufactured for forming and straightening relatively large parts. The machine tool has a horizontal C-type body structure with two worktables, one horizontal and one vertical. It features adjustable single-cycle pressure and stroke settings, with adjustable stroke, pressure, and holding time.

The horizontal motor stator hydraulic press is a press-fitting device specifically used to press motor stators into motor housings. The train axle hydraulic press adopts a horizontal structure, thus solving the problem of poor stability in vertical motor stator press-fitting. This machine tool is fully CNC electrically controlled, allowing control over the distance the stator is pressed into the motor housing, thereby minimizing the number of fixtures and saving costs. (Optional PLC control and optical encoder protection device)

1. Automotive Industry: Press-fitting of engine components (cylinder heads, cylinder liners, oil seals, etc.), steering gear components (gears, pins, etc.), drive shaft components, gearbox components, brake disc components, etc.

2. Motor Industry: Press-fitting of micro-motor components (spindles, housings, etc.), motor components (bearings, spindles, etc.).

3. Electronics Industry: Press-fitting of circuit board components (plug-ins, etc.), press-fitting of electronic components.

4. Home Appliance Industry: Press-fitting of home appliance parts, riveting of home appliance parts, etc.

5. Machinery Industry: Press-fitting of mechanical parts, automated assembly lines, life testing of vulnerable parts, etc.

6. Other Industries: Other applications requiring precision CNC press-fitting displacement and force.
