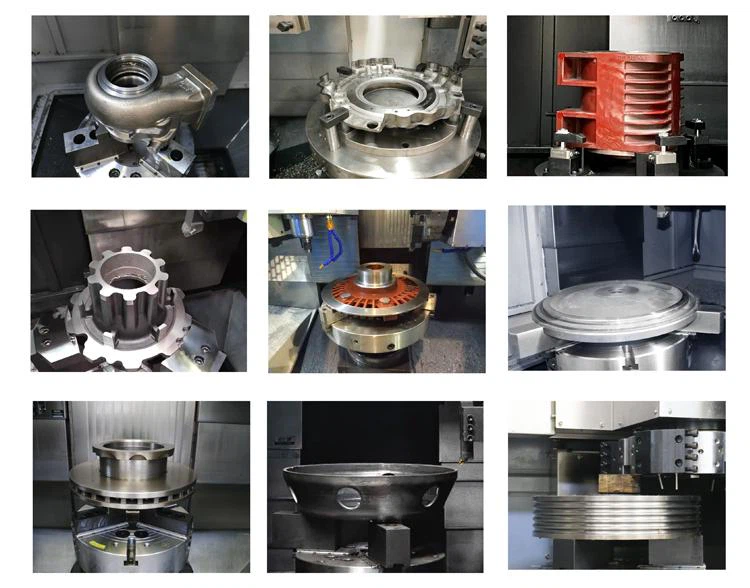

Vertical automatic lathes are among the most widely used machines in manufacturing. CNC vertical lathes are versatile, capable of producing a wide variety of parts and components quickly and efficiently. Furthermore, the ease of operation and high-precision machining capabilities of CNC machine tools make them a preferred choice for high-precision parts, widely applicable to components required in the aerospace, automotive, and medical industries.

The single-column vertical automatic lathe is equipped with advanced domestic and international functional components, achieving powerful cutting, heavy-duty worktable load capacity, high dynamic and static rigidity, safe and reliable operation, long service life, and high processing efficiency. CNC machine tools are suitable for high-speed steel tools, carbide tools and various high-performance tools to process ferrous metals, non-ferrous metals and some non-metallic materials. On the machine tool, roughing and finishing of internal and external cylindrical surfaces, internal and external conical surfaces, end faces, grooving, steps and arcs can be completed.

We provide processing solutions and free processing testing

Direct manufacturer, stable performance, and guaranteed quality

A robust after-sales service system eliminates any worries

Taiwanese ball screw linear guide

The X and Z axis servo motors of the CNC vertical lathe are directly driven by precision ball screw pairs via flexible couplings, reducing backlash and ensuring high positioning accuracy. The X and Z axes of the CNC vertical lathe utilize precision ball screw pairs and bearings from Taiwan, meeting the requirements for high rigidity and precision cutting. The screw support employs a preloaded structure, significantly reducing the impact of thermal deformation on accuracy during long-term machine operation.

VTC40 Main Technical Parameters

X-axis travel	400mm	Z-axis travel	500mm
Maximum turning diameter	φ600mm	Maximum turning diameter	φ400mm
Maximum turning height	500mm	Spindle speed	100-1000rpm
Spindle motor power	15kw	Spindle outer diameter	φ130mm
Chuck diameter	12 inches	Cooling motor	450+450w
Pump flow rate	4m³/h	Positioning accuracy	0.006mm
Dimensions (approx.)	200019603500mm	Gross weight (approx.)	4500kg
