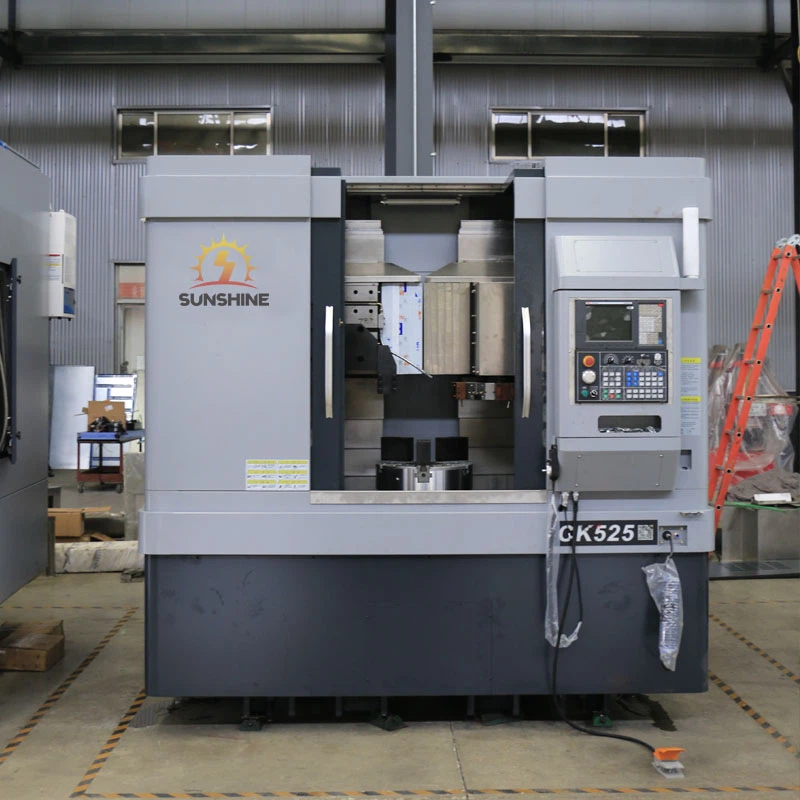

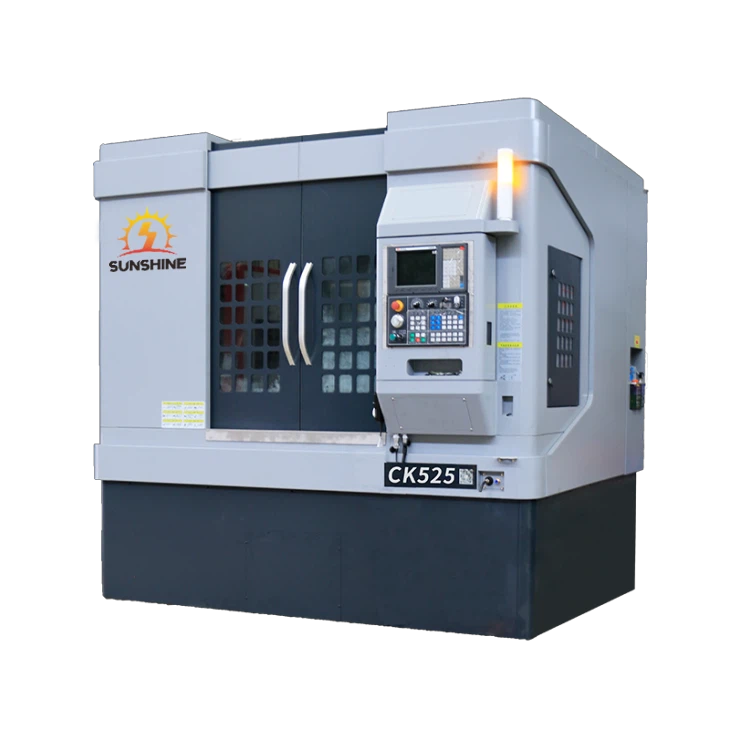

Double-column CNC Vertical Lathe CK525

● Our professional team has years of practical experience and can meet your individual needs.

● Products can be customized upon request; please contact us if needed.

● On-site installation, commissioning, and training are available.

● Our equipment comes with a 24-month warranty. During the warranty period, spare parts will be sent free of charge if damaged due to non-human factors.

● CE and other certifications are available.

● English operating manual included.

● We can assist with customs clearance procedures in various countries and provide customs clearance documentation.

● The standard guide rails for the twin-column CNC vertical lathe are two-gauge rollers. Two-gauge rollers or one-gauge-one-gauge rail configurations are also available upon request.

● The twin-column CNC vertical lathe's X/Z-axis feed is automatically controlled by servo motors. Both vertical and horizontal feeds are automatically controlled by servo motors. Stainless steel guards are installed on both axes, and a load-balancing mechanism is installed in the vertical axis to reduce the load on the leadscrew, ensuring a reliable structure and low failure rate.

● The twin-column CNC vertical lathe is equipped with a 24-inch hydraulic chuck, which is waterproof and dustproof, offers high precision, and strong clamping force.

●The CK525 Double-column CNC Vertical Lathe is an automated CNC machining center. The CK series double-column CNC vertical lathe utilizes a dual-column structure and can process internal and external cylindrical surfaces, conical surfaces, end faces, grooves, and chamfers. The CK series double-column lathe is particularly suitable for both rough and finish machining of parts such as clutch covers, brake shoes, and brake discs.

The multi-process composite machining capabilities of twin-column CNC vertical lathes are widely used in industries such as automotive, aerospace, energy equipment, and mold manufacturing, meeting the core industrial demands for high-precision, efficient, and automated machining.

X-axis travel (mm): 280
Y-axis travel (mm): 500
Maximum swing diameter (mm): 750
Maximum turning diameter (mm): 550
Maximum cutting height (mm): 550
Spindle speed (rpm): 100-1000
Main motor power (kW): 18.5
Chuck type: 24-inch hydraulic turret
Turret stations: Eight stations + gang tool (dual horizontal turrets are also available)
Overall dimensions (mm): 2900*2400*2800
Gross weight (kg): 7000

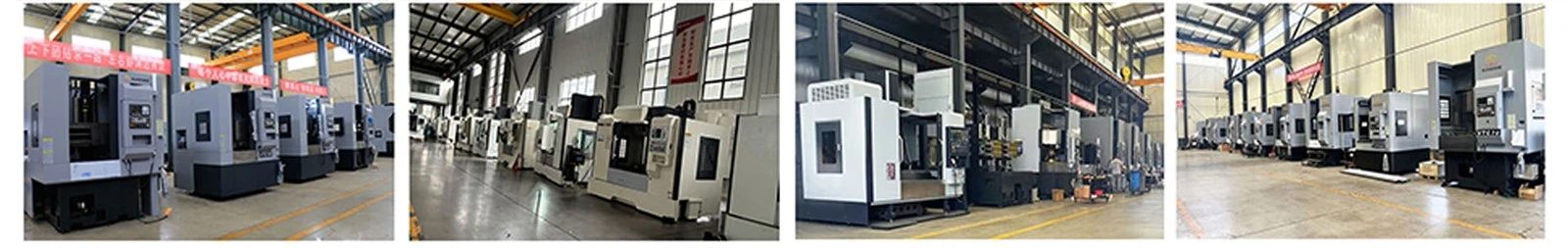

We have a highly qualified CNC equipment manufacturing team, specializing in the production and manufacturing of vertical machining centers, horizontal machining centers, five-axis machining centers, CNC vertical lathes, hydraulic presses, sawing machines and other mechanical equipment. Our products are exported to many countries and regions, including Russia, Australia, Vietnam, India, Algeria, Bangladesh, Thailand, Iran, Turkey, Nepal, Saudi Arabia, Nigeria, and South Africa.
