Aluminum Press
This four-column hydraulic press can compress dry granular and powdered materials into various general and irregular shaped tablets, suitable for large-scale tablet production, especially for products with high density requirements. The hydraulic press adopts a multi-module design, can be used in large-scale production industries, offers high precision, is easy to learn, facilitates mold replacement and installation, and has a high degree of automation.
Hydraulic press details
Custom production is available upon request; stroke, opening height, and tonnage/pressure can be customized.
Hydraulic cylinder
Made of integral forging, it is not easily broken or deformed, has a long service life, and excellent cylinder sealing.
Worktable
The hydraulic press worktable is hardened, has good rigidity, and has T-slots on the surface for easy clamping of workpieces; the worktable can be customized according to customer needs.
Thickened plates
The overall design strength of the hydraulic press is increased, and the integral welding makes the hydraulic press more durable.
Cartridge Valve System
The hydraulic press employs an integrated cartridge valve system, reducing leakage points, ensuring reliable operation, and extending service life.
| Technical Parameters | Y32-315T | |
| Nominal pressure(KN) | 3150 | |
| System pressure(Mpa) | 25 | |
| Slider stroke(mm) | 500 | |
| Maximum opening height(mm) | 800 | |
| Effective size of workbench | The left and right sides | 800 |
| The front and rear sides | 700 | |
| Slider speed(mm/s) | ldle stroke | 120 |
| Feeding | 14 | |
| Back tracking | 69 | |
| Ejection force(KN) | - | |
| under cylinder stroke(mm) | - | |
| Motor power(KW) | 15 | |

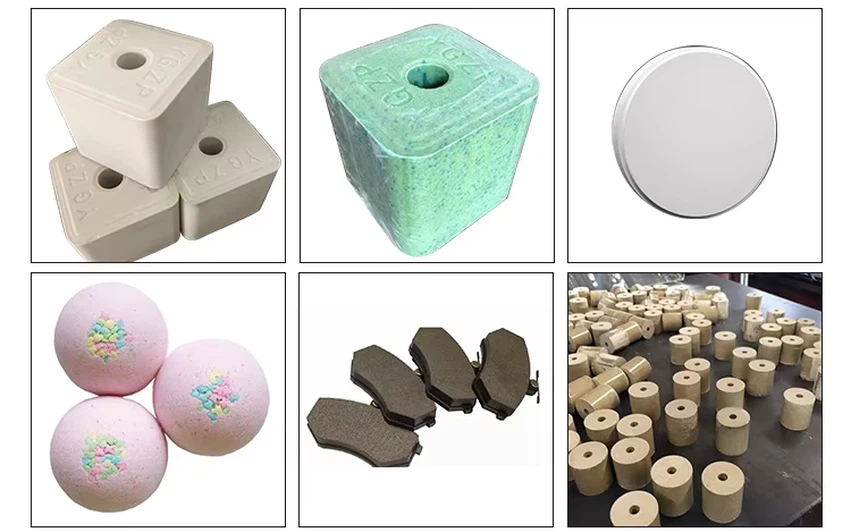

Hydraulic press finished product display
A powder forming hydraulic press is a specialized piece of equipment that uses hydraulic transmission technology to press metal powder, ceramic powder, cemented carbide powder, or other granular materials into parts of specific shapes and sizes under high pressure. The powder forming hydraulic press combines the high-pressure output of a hydraulic system with the precision forming characteristics of powder metallurgy.
Application areas of powder forming hydraulic press
● Powder metallurgy parts: High-precision, high-density parts such as gears, bearings, connecting rods, and valve seats.
● Ceramic products: Ceramic bearings, seals, electronic ceramic substrates, structural ceramics, etc.
● Hard alloys: Cutting tools, molds, mining tools, wear-resistant parts, etc.
● Magnetic materials: Permanent magnets, soft magnetic cores, sensor cores, etc.
● Other applications: Pharmaceutical tableting, food compression molding, etc.
