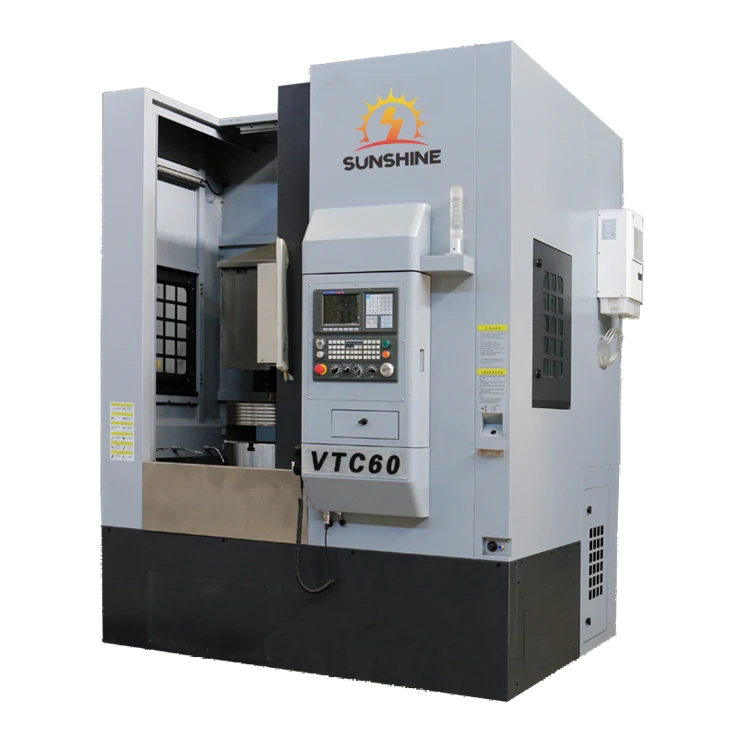

Single-column CNC Vertical Lathe VTC60
Cost-effective CNC lathe
Product Features
Vertical CNC lathe can process a variety of short shaft and disc parts, and can turn various threads, arcs, and internal and external curved surfaces, end faces, and grooves on rotating bodies. The VTC60 CNC vertical lathe is suitable for processing parts with high production volumes, high precision, and strict dimensional consistency. The VTC series CNC vertical lathes are widely used in the automotive industry both domestically and internationally, offering high-quality, high-precision, and cost-effective machine tools.
Vertical CNC lathe offer significant advantages for machining heavy parts with large diameters and short lengths, as well as parts that cannot be clamped on horizontal lathes. These parts can be easily machined on a CNC vertical lathe, while maintaining machining accuracy.
This CNC vertical lathe features a stable power system.
The hardware power system is stable.

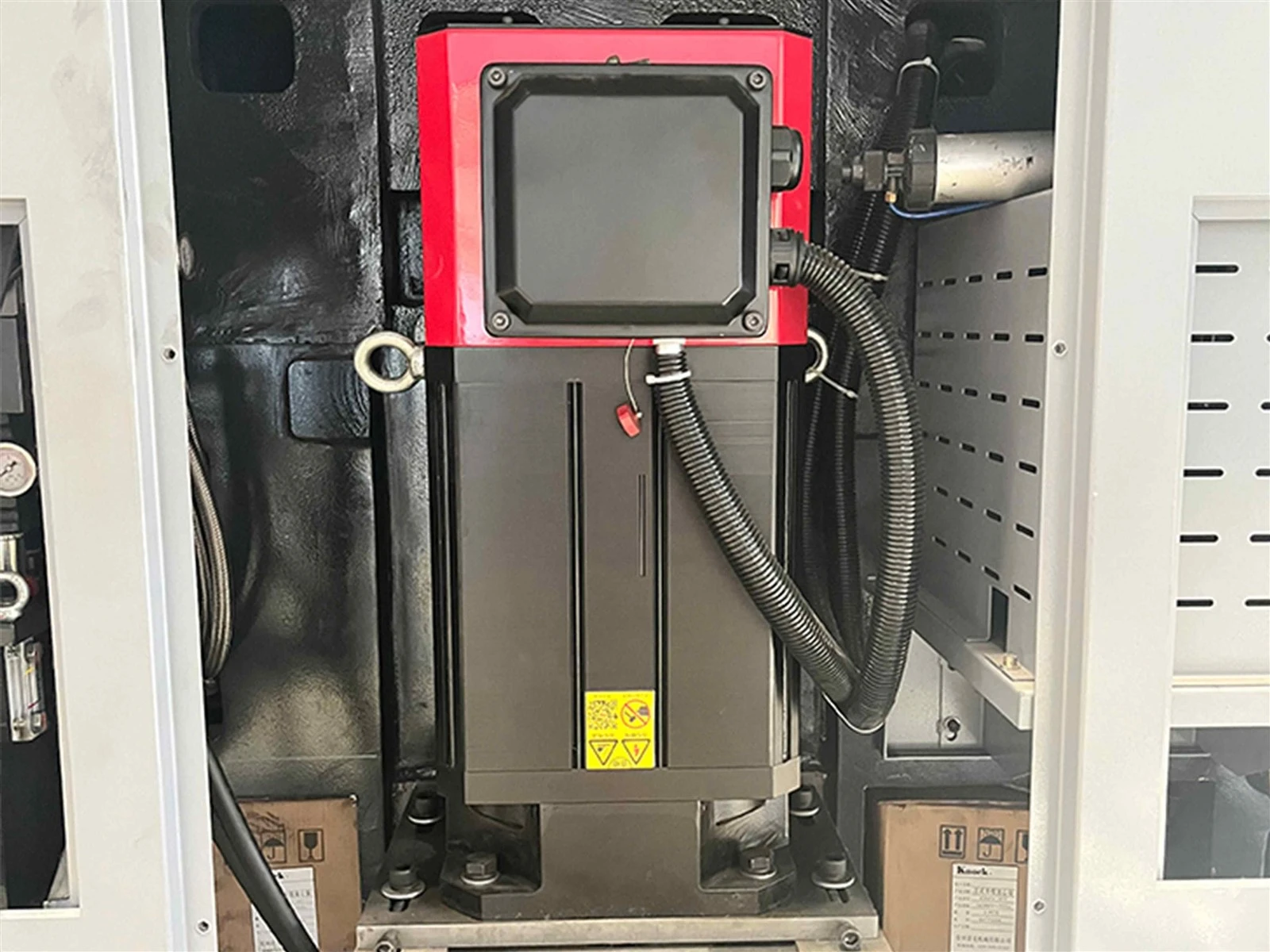

A servo motor improves power output, positioning accuracy, and continuously variable speed.
The CNC vertical lathe utilizes a hydraulic turret. Its internal structure utilizes a cam design, resulting in precise cut angles and fast tool changes, making it ideal for precision cutting. The turret's rotation utilizes a hydraulic motor, providing high and stable torque. The hydraulic turret's tightening and loosening, coupled with the hydraulic power source, results in smooth movement, making it suitable for heavy cutting.
The standard hydraulic chuck is 18 inches, with optional 15-, 18-, 24-, and 32-inch chucks available. Three T-slots are located on the chuck end, facilitating the replacement of various fixtures and fixtures. It offers quick adaptability and can meet the needs of users processing a wide range of parts.
Applications
The application fields of CNC vertical lathes are very wide, such as aerospace, medical equipment, energy, transportation, automobile manufacturing, mold manufacturing, heavy machinery manufacturing, new energy and many other industries and fields. They can process gearboxes, clutch housings, engine cylinders, crankshafts, gearboxes, transmission gears, discs, pulleys and other parts.
● Machining of disc-type (or short shaft) parts with complex geometries, a wide variety of dimensions, and high precision requirements.
● Machining of cylindrical, conical, stepped, spherical, and other rotary curved surfaces.
● Machining of various metric and imperial internal and external threads.
● In addition to turning, the machine can also perform drilling, reaming, reaming, rolling, and boring.
Structural Features of CNC Lathe
Cutting Cooling System
The VTC series CNC vertical lathe is equipped with a high-flow cooling pump with a power of 1 kW and a large-capacity water tank to ensure circulating cooling. The CNC vertical lathe tool turret is equipped with cooling nozzles, and the cooling process can be controlled via M-codes or the control panel. A water jet is also included for cleaning the machine.
Lubrication System
The guideways and ball screws of the CNC vertical lathe utilize centralized automatic thin oil lubrication. Each node is equipped with a metered oil distributor, which delivers lubricating oil to each lubricating area at a fixed time and quantity. This ensures uniform lubrication of all sliding surfaces, effectively reducing friction, improving motion accuracy, and ensuring the service life of the ball screw and guideways.
Laser inspection
Lorem ipsum dolor sit, amet consectetur adipisicing elit.
