How to choose between linear and hard tracks for CNC vertical lathe?

1.Structural Comparison

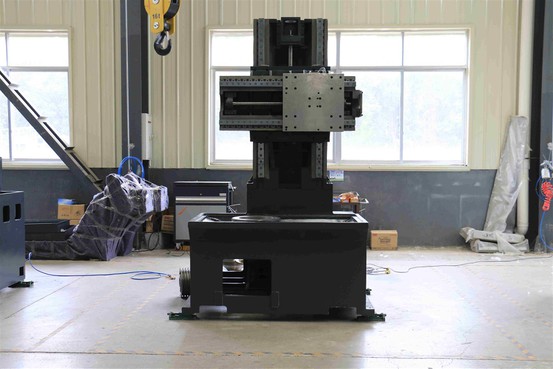

Linear Track CNC Vertical Lathe

● Linear CNC vertical lathes utilize a modular design, consisting of guide rails and slides, with internal rolling friction achieved through balls or rollers.
● The guide rails of linear CNC vertical lathes are typically made of high-carbon steel, heat-treated, and precision-ground; the slides utilize steel balls/rollers.
● Linear CNC vertical lathes offer a compact structure, easy installation and adjustment, and are suitable for standardized production.

Hard guide CNC vertical lathe

● The guide rails of hard guide CNC vertical lathes are integrally cast with the CNC vertical lathe bed and formed through a scraping process, resulting in direct contact between the sliding surfaces.
● The base of hard guide CNC vertical lathes is typically made of cast iron or hardened steel, coated with a wear-resistant coating.
● While hard guide CNC vertical lathes offer high structural rigidity, they are challenging to manufacture and require specialized assembly techniques.

2.Performance Comparison

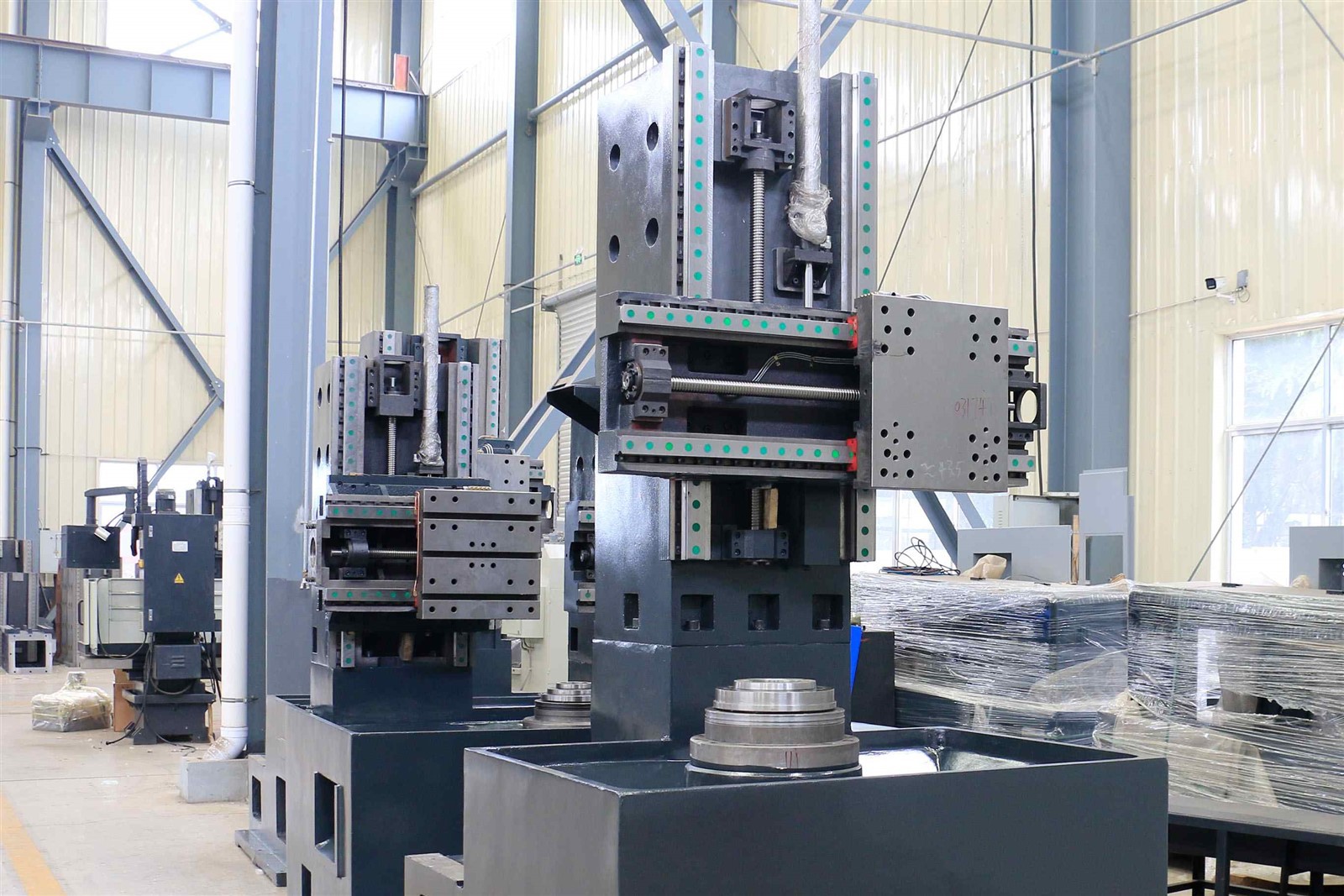

Linear Guide

CNC Vertical Lathe

● Linear Guide CNC Vertical Lathes offer low rolling friction and high speed.
● They offer high precision, achieving zero clearance between the rails, making them suitable for high-precision machining.
● Linear Guide CNC Vertical Lathes offer a long lifespan, low rolling friction and wear, and can last for many years with proper maintenance.
● Linear Guide CNC Vertical Lathes offer high speed, making them suitable for high-speed machining.

Hard Guide

CNC Vertical Lathe

● Hard-Guide CNC Vertical Lathes offer high rigidity and can withstand heavy loads, making them suitable for heavy cutting.
● Hard-Guide CNC Vertical Lathes offer strong vibration resistance, making them suitable for intermittent cutting or high-vibration conditions.
● Hard-Guide CNC Vertical Lathes achieve ultra-high rigidity and strong damping and impact resistance through a large-area sliding friction structure.
● Hard-Guide CNC Vertical Lathes offer low maintenance costs thanks to their hardened guide rails and self-lubricating design.

3.Use Scenario Comparison

Linear Guide CNC Vertical Lathe

Linear Guide CNC Vertical Lathes are suitable for machining parts with complex machining requirements, such as aluminum alloy wheels, precision discs, precision parts, electronic components, and small precision molds, as well as for surface contour machining.

Hard Guide CNC Vertical Lathe

Hard Guide CNC Vertical Lathes are suitable for heavy-duty rough machining of parts such as forged steel wind turbine spindles, mining crusher rotors, and cast steel valve bodies, and are suitable for turning in harsh environments.

4.Maintenance Cost Comparison

Linear Guide CNC Vertical Lathe

● Linear Guide CNC Vertical Lathes feature modular replacements and built-in sealing and lubrication systems for easy maintenance.
● While the initial purchase cost of a Linear Guide CNC Vertical Lathe is higher, the maintenance cost is low, making it suitable for long-term use.

Hard Guide CNC Vertical Lathe

● Hard Guide CNC Vertical Lathes require regular scraping, repair, and manual lubrication, making maintenance complex and costly.
● Hard Guide CNC Vertical Lathes have a lower initial purchase cost, but high long-term maintenance costs and are difficult to repair (may require disassembly of large machine components).
