Brake Drum Boring and Shoe Special Machine
Machine Functions
1. High efficiency and automation: CNC machining centers integrate multiple machining functions such as milling, boring, drilling, and tapping. Through the automatic tool changer, multiple processes can be completed in one clamping, reducing production preparation and machine tool adjustment time. For batch workpieces with medium machining difficulty, its efficiency is 5 to 10 times that of ordinary equipment.
2. High precision and high stability: CNC machining centers have high-precision position control and speed control, high machining accuracy and high repetition accuracy, and can stably meet the machining requirements of complex parts, such as parts machining in the aerospace field.
3. Reduce the number and cost of tooling: When machining parts with complex shapes, complex tooling is not required. The shape and size of the parts can be changed by simply modifying the program, which is suitable for the development and modification of new products, saving a lot of time and cost.
Standard Configuration
CNC System
Standard confiugration uses GSK CNC system
Guide Rails
Three axes use Taiwan guide rails

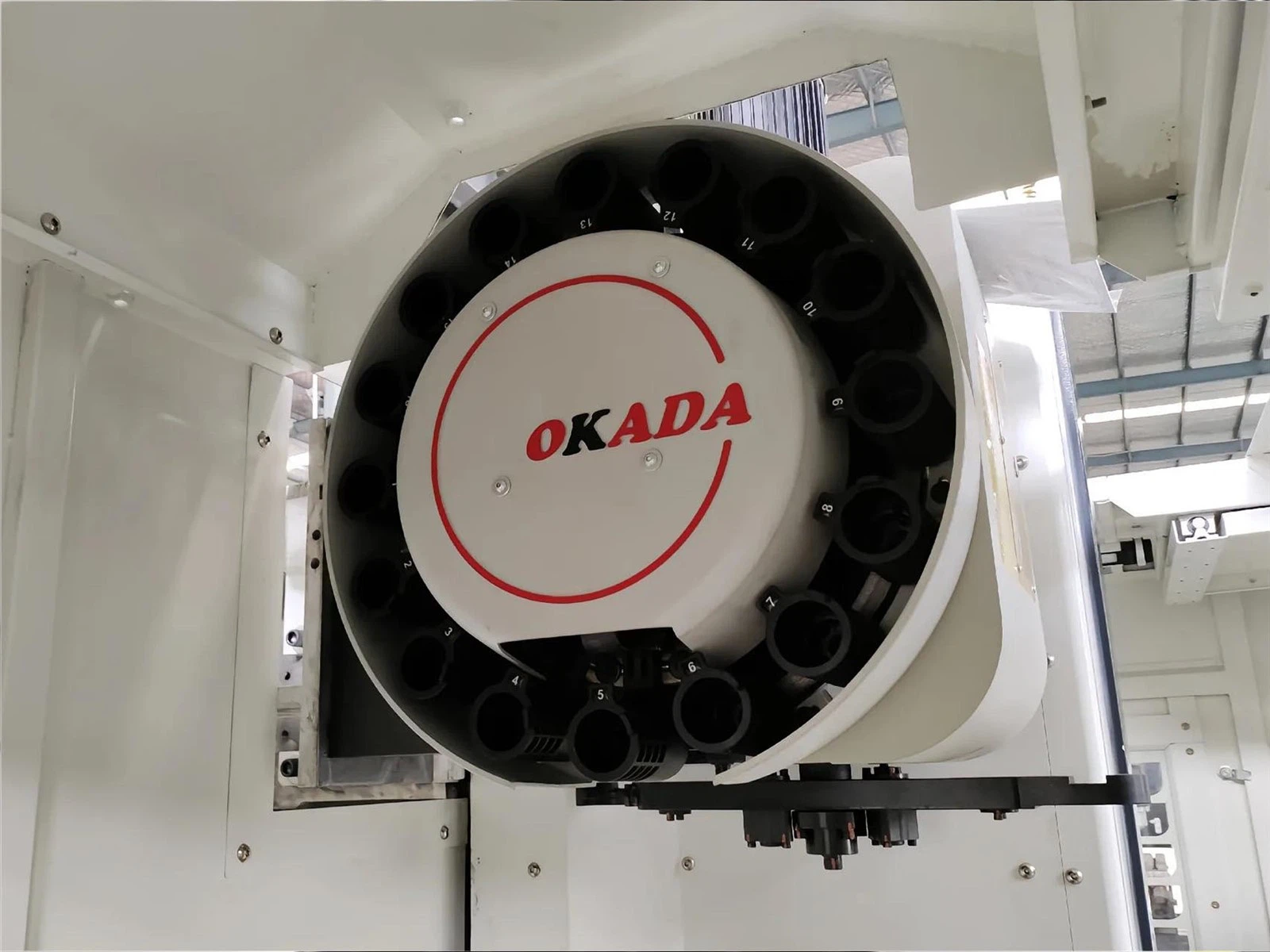

Tool Magazine
Tool magazine uses a servo ATC tool changer or dual servo
Enclosed Protection
Fully enclosed machining area to prevent metal chips from splashing out
Main parameters
| Specifications | unit | VMC855 |
| Table size | mm | 1000x550 |
| Table maximum load | kg | 500 |
| X/Y/Z axis travel | mm | 800x550x550 |
| Distance between spindle centerand column | mm | 590 |
| Distance between spindle endface and worktable surface | mm | 120-670 |
| X/Y/Z Max. feed speed | mm/min | 10000 |
| X/Y/Z Max. Rapid traverse | m/min | 32/32/30 |
| spindle speed | r/min | 8000 |
| spindle taper | type | BT40 |
| Spindle motor power | kW | 7.5/11 |
| X/Y/Z axis servo motor power | kW | 3.9/3.9/3.6 |
| X/Y/Z motor connection | Direct | |
| X/Y/Z Guide way type | Line rail | |
| T slot | mm | 5-18x90 |
| Repeat positioning accuracy | mm | ±0.004 |
| Tool magazine | disc type | |
| Tool capacity | 24T | |
| Maximum tool weight | kg | 8 |
| Max. tool length | mm | 300 |
| Electric capacity | kVA | 15 |
| Machine dimension(LxWxH) | mm | 2600x2380x2700 |
| Net. weight (about) | kg | 5000 |
√ Stable and efficient
√ Fast, accurate, and stable processing
√ Intelligent control
√ Stable performance
Stringent Factory Inspection Standards
