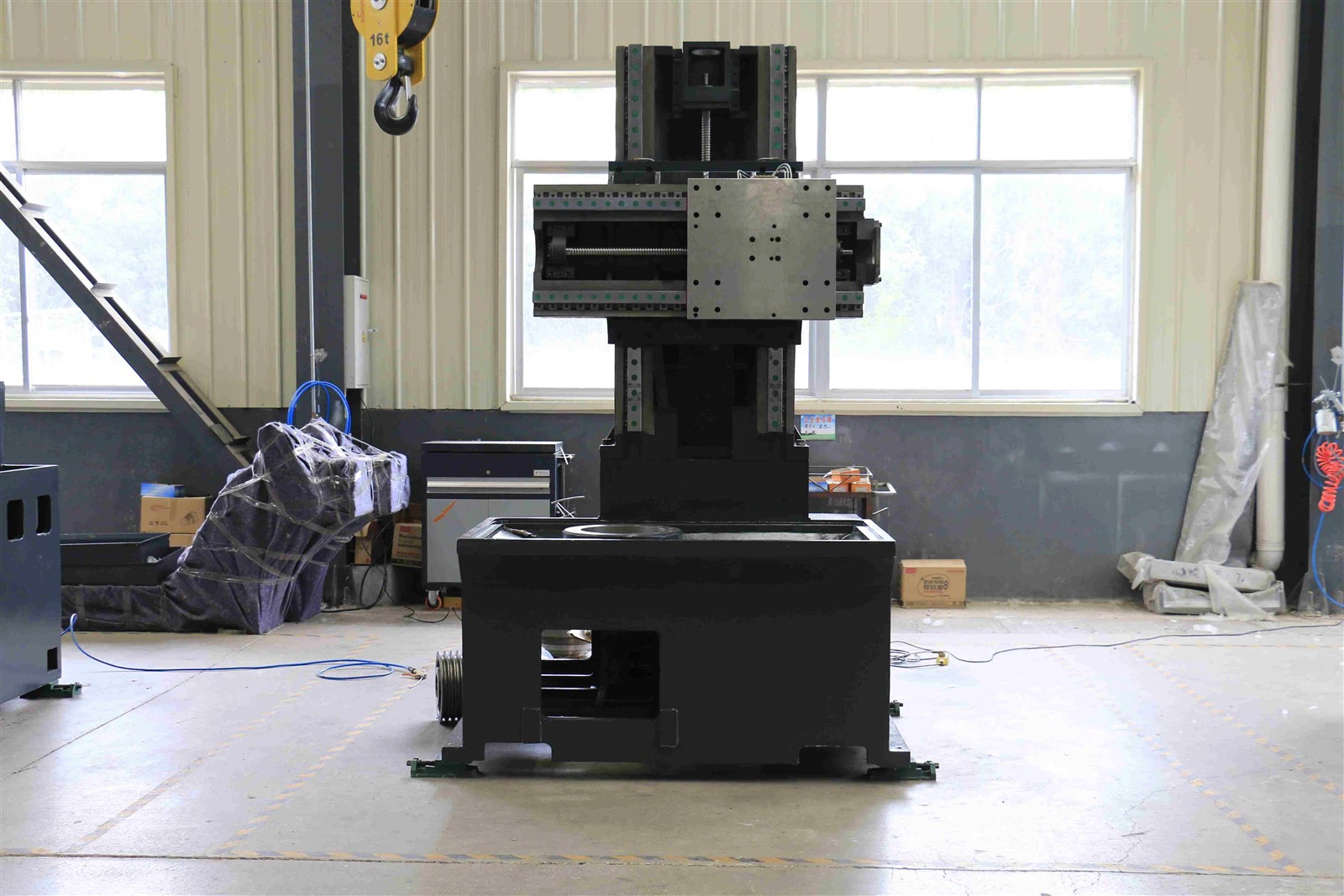

Single-column CNC vertical lathes utilize a single vertical column to support the crossbeam and toolholder system. The column is rigidly connected to the base, forming a stable frame structure. This single-column CNC vertical lathe design is suitable for machining small and medium-sized workpieces. By optimizing the column's cross-sectional shape (e.g., box-shaped, with diagonal rib arrangement) and material (HT250 cast iron), bending and torsional rigidity are enhanced.

The worktable of a single-column CNC vertical lathe is mounted horizontally on the base, supported by high-precision bearings (such as NN30 double-row cylindrical roller bearings) and hydrostatic guideways, achieving low friction and high rotational accuracy. The CNC vertical lathe toolholder offers a variety of configurations, allowing users to freely choose according to their specific needs and usage habits, effectively improving tool changing efficiency and processing flexibility.

Standard CNC vertical lathe configuration

Configurations are optional. Please contact us immediately if configuration changes are required.

Turret

Standard Configuration

Taiwan horizontal 8-station tool turret. This series of tool turrets is indexed by a servo motor, enabling rapid bidirectional tool selection, hydraulic locking, and extremely high rigidity.

Chuck

Standard Configuration

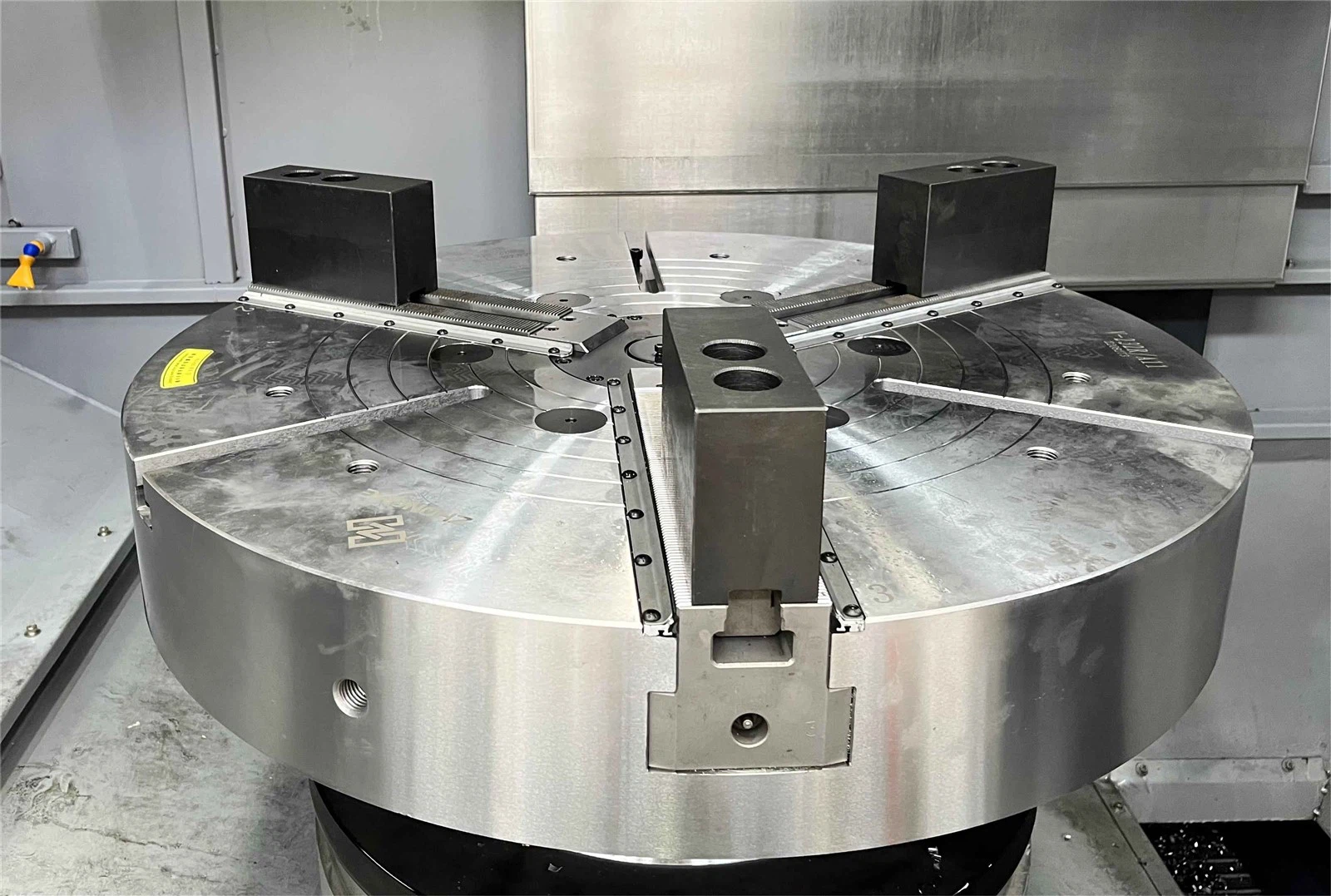

The standard chuck for a CNC vertical lathe is a hydraulic chuck in an 18-inch, waterproof configuration. There are three T-slots on the end face of the chuck, which makes it convenient for customers to replace various fixtures and can meet the user's requirements for processing a variety of parts.

Product Details

Spindle

The spindle unit of our single-column CNC vertical lathe incorporates internationally advanced and proven structures. The front spindle support consists of a double-row cylindrical roller bearing and a double-direction thrust angular contact ball bearing, while the rear support utilizes a double-row cylindrical roller bearing. Our CNC vertical lathes utilize imported precision spindle bearings, lubricated with imported high-speed grease.

Taiwan Guides

Both axes of the single-column CNC vertical lathe utilize Taiwan cylindrical roller guides, offering high precision, high load capacity, and high roller traverse speeds. Taiwan roller guides are compact, highly accurate, and require low maintenance, making them particularly suitable for applications requiring high part dimensional consistency.

Chip Conveyor

The single-column CNC vertical lathe is equipped with a drag-chain chip conveyor. The chip conveyor is used to collect and transport various rolled, lumpy, and blocky chips, as well as scraps of copper, aluminum, and cast iron.

Hydraulic System

The single-column CNC vertical lathe is a highly automated CNC machine tool equipped with a hydraulic system. The main hydraulic control components of the hydraulic system are all selected from renowned brands or high-quality domestic products.

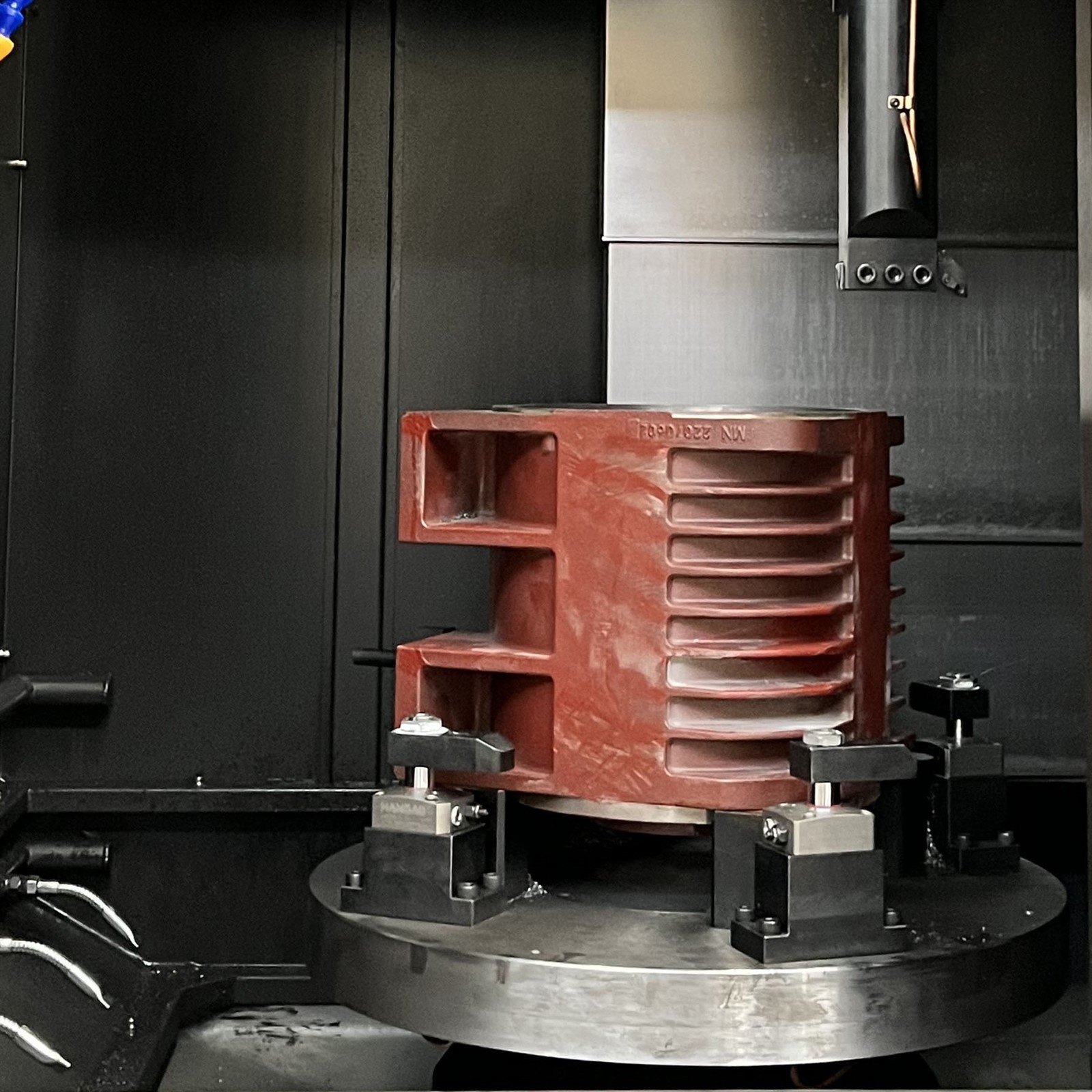

Processing Cases

Equipment Testing

Each equipment undergoes multiple measurements and inspections, and is not shipped until the inspection results meet the requirements.

Lead Screw Inspection

To improve the geometric accuracy of CNC vertical lathe lead screws and extend the service life of the lead screws and bearings, all components are manually scraped and polished to ensure mechanical accuracy within 0.01 mm, meeting industry standards.

Machine Tool Taper Inspection

The straightness of a 300mm long inspection rod is within 0.005mm, far exceeding the industry standard of 0.01mm.

Laser Inspection

Minimizes leadscrew pitch error and achieves higher positioning accuracy. Each moving axis is inspected with a laser interferometer to ensure higher positioning accuracy, and the inspection standards meet ISO standards.
