CNC Single-column Small Vertical Lathe
The difference between a vertical lathe and a conventional lathe lies in the fact that the spindle of a vertical lathe is vertical, essentially turning a conventional lathe into an upright machine. Conventional lathes, with their horizontal worktables, are better suited for machining heavy parts with large diameters and short lengths. Vertical lathes can machine internal and external cylinders, conical surfaces, end faces, grooves, chamfers, etc. The clamping and alignment of workpieces are also more convenient.
The CNC Single-column Small Vertical Lathe uses an electric smooth-running oil pump, ensuring smooth operation. The machine tool adopts a domestically produced centralized automatic lubrication system and features level and pressure alarms.
| Specifications | VTC80 | Specifications | VTC80 |
| X-axis travel | 670mm | Z-axis travel | 850mm |
| Maximum turning diameter | Φ1000mm | Maximum turning diameter | Φ800mm |
| Spindle speed | 50～800rpm (belt) | Spindle motor power Servo Spindle Motor | 22kW |
| Spindle End Face Type | Straight Edge | Motor Torque | 560N.M |
| Spindle Hardness | HRC58-62 | Spindle Outer Diameter | φ180mm |
| Reduction Ratio | 1:2 (Belt) | Standard CNC System Configuration | GSK 980TC3 |
| Spindle Motor | 22kW/375rpm | XZ Rapid Feed Rate | 15m/min |
| Cooling Motor | 750W | Pump Output | 4m³/h |
| Repeat Positioning Accuracy | ±0.005mm | Positioning Accuracy | ±0.01mm |
| Minimum Positioning Unit | 0.001mm | Power Supply | 3￠-AC 380V 50Hz±5% |

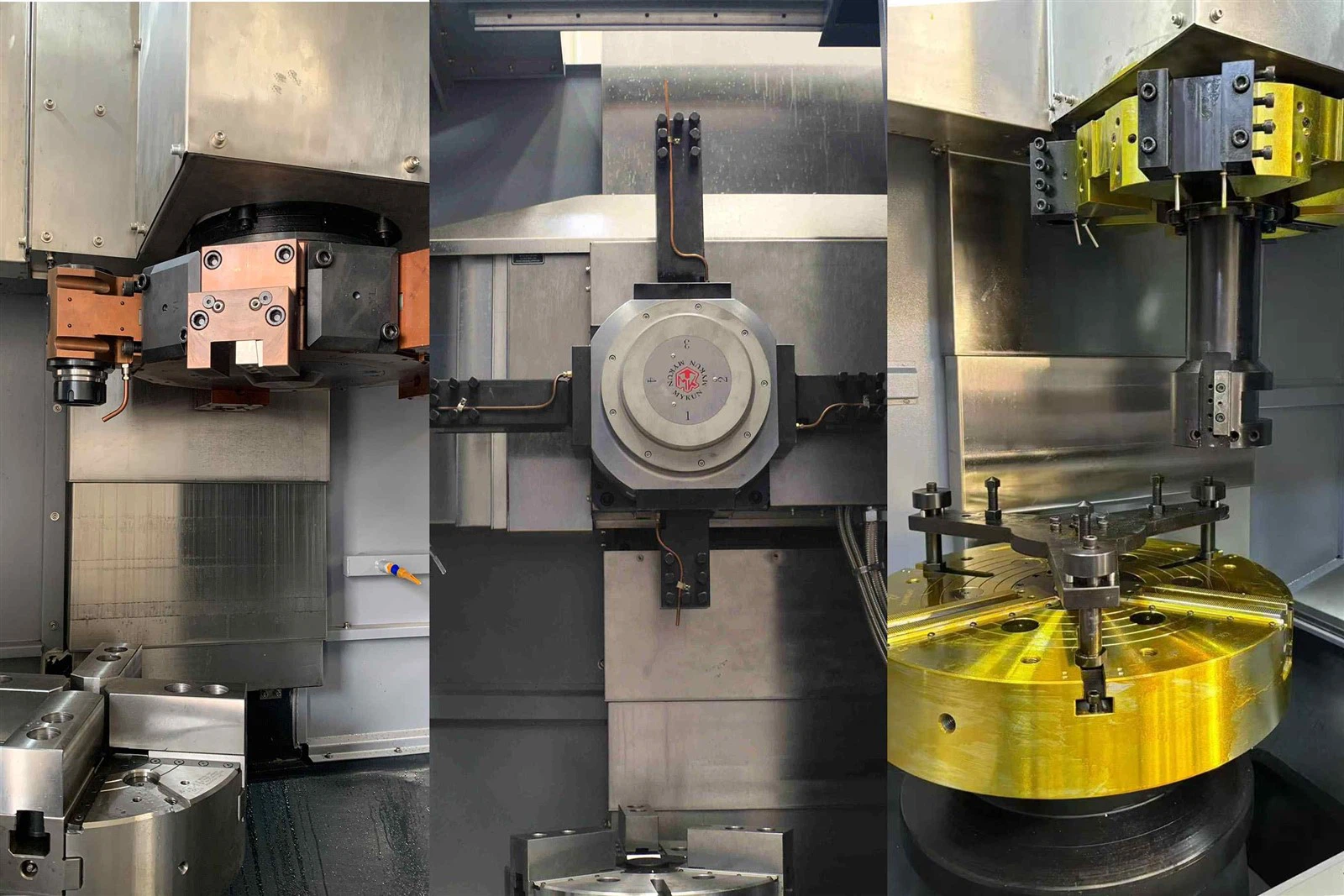

The CNC Single-column Small Vertical Lathe machine tool uses a Taiwanese-style horizontal 8-station tool post. This series of tool posts is controlled by a servo motor for indexing, allowing for bidirectional rapid tool selection, hydraulic locking, and extremely high rigidity. Horizontal or vertical multi-station tool posts can be selected according to the workpiece machining requirements, and quick changes are possible, greatly improving work efficiency and achieving high machining accuracy and efficiency.
Configuration can be changed according to customer requirements.

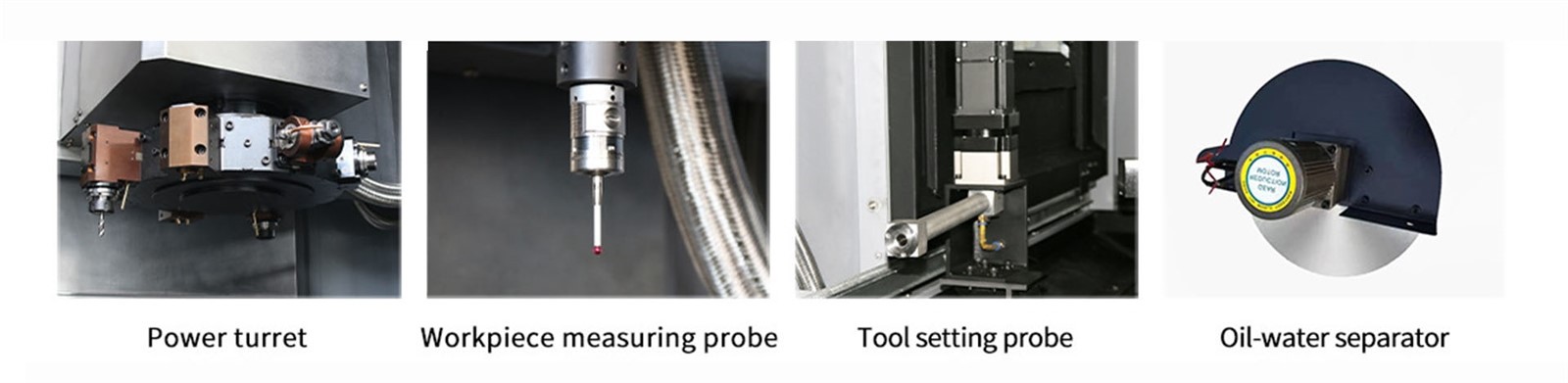

The single-column CNC vertical lathe can be equipped with metric or electric turrets, hydraulic chucks, coolant pumps, chip conveyors, and chip removal devices according to customer requirements.

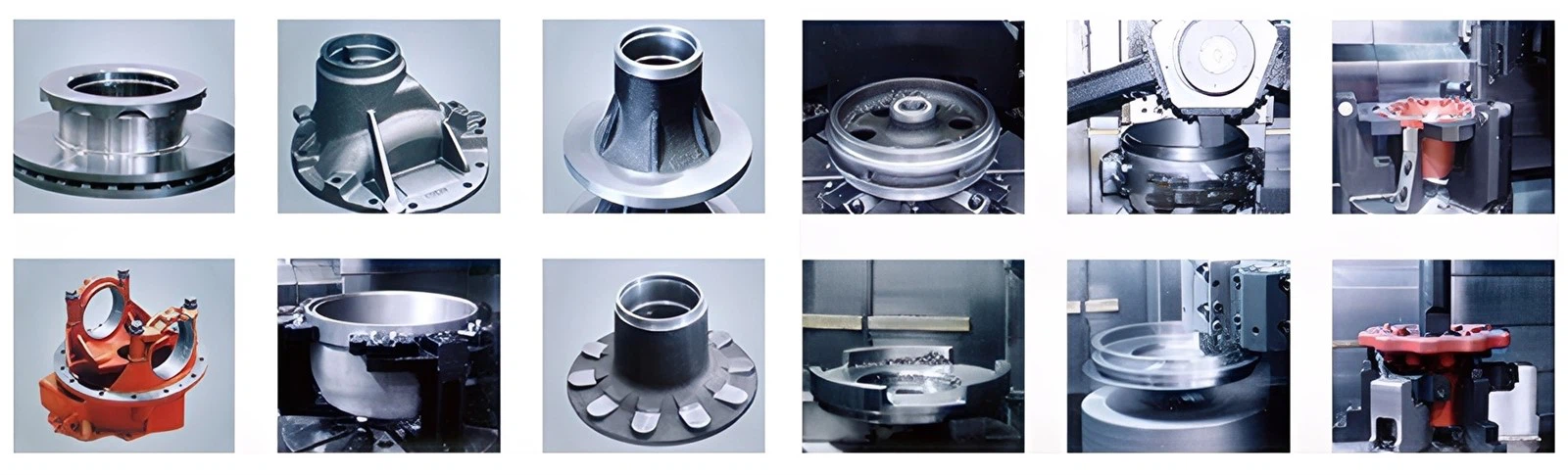

CNC Machine Tool Processing Examples
CNC Vertical Lathe Application Range
Machining of Large Rotating Parts
Wind Power Equipment (Hub, Main Shaft, Gearbox)
Aerospace Components (Engine Casing, Turbine Disc)
Energy Equipment (Nuclear Power Pressure Vessel, Steam Turbine Rotor)
Precision Machinery Manufacturing
Hydraulic Components (Pump Body, Valve Body)
Mold Manufacturing (Injection Mold, Die Casting Mold)
Precision Bearing Housings, Flanges
Automotive Industry
Engine Block, Cylinder Head
Transmission Housing, Differential Housing
Hub, Brake Disc
Energy and Heavy Machinery
Mining Machinery (Crusher Rotor, Mill End Cover)
Cement Equipment (Rotary Kiln Shell, Grinding Roller)
Oil Drilling Equipment (Derrick Base, Mud Pump Body)
Our Partners
Sunshine Machinery has won worldwide acclaim for its excellent reputation, superior quality, and comprehensive after-sales service, standing out among numerous domestic and international companies!

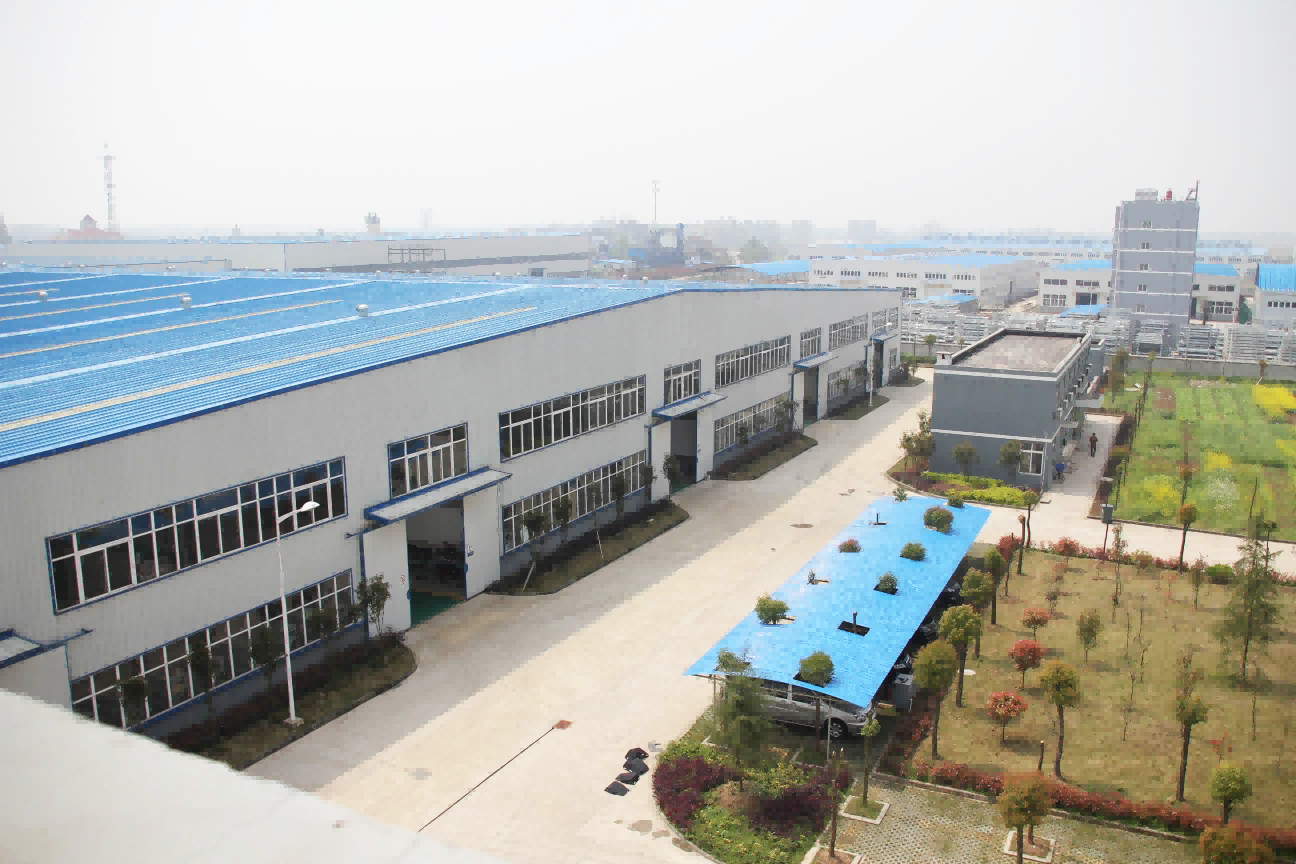

Understanding Sunshine
