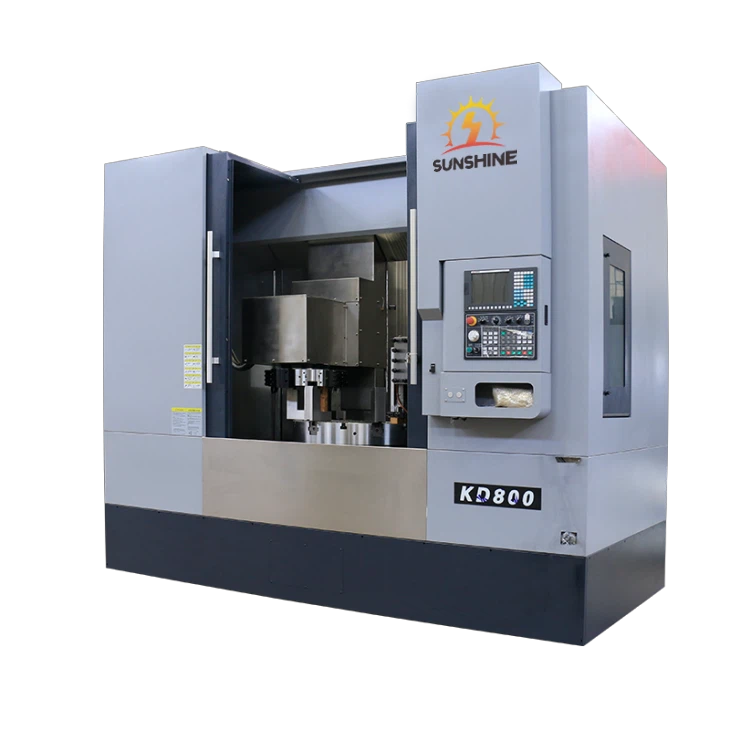

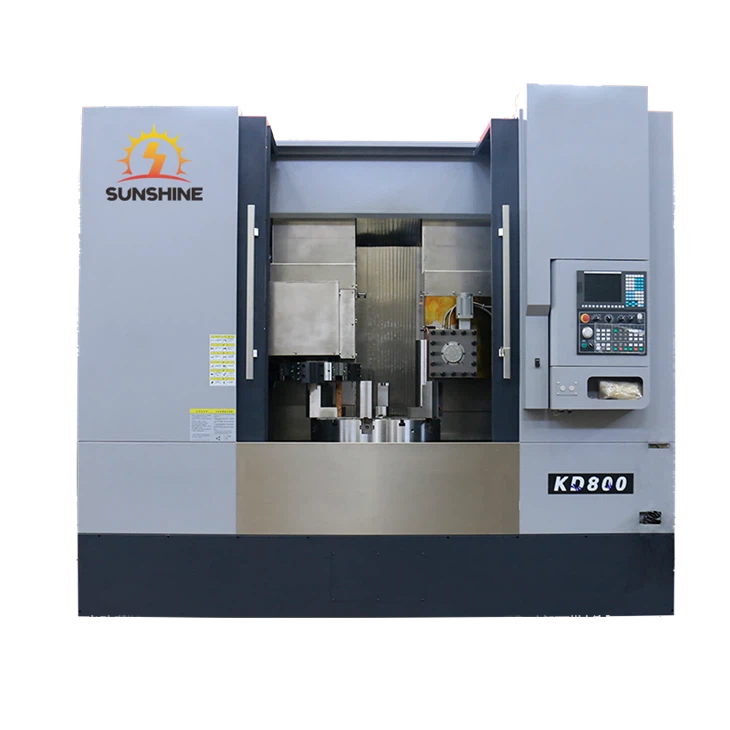

Turning And Milling CNC Vertical Lathe
●Source factory ●Complete range of models ●Customization supported
----Customized single-column and double-column vertical lathes
Products Description
| Specification | unit | KD800 | Specification | unit | KD800 |
| X axis | mm | 450 | Ball screw accuracy | Level C3 | |
| Z axis | mm | 500 | Lead screw size | x：φ50 z: φ50 | |
| Maximum turning diameter | mm | Φ950 | X motor | 23NM | |
| turning diameter | mm | Φ850 | Z motor | 23NM | |
| Spindle speed | rpm | 50-300 | Repeatability | mm | ±0.02 |
| Spindle motor rated power | Kw | 22 | positioning accuracy | mm | ±0.04 |
| Spindle diameter | mm | Φ180 | smallest positioning unit | mm | 0.001 |
| Chuck model | hydraulic chuck | Dimensions (approx.) | mm | 3000*2800*2800mm | |
| Turret specifications | Turret center height 125mm | equipment weight | t | 12t | |
| Turret station | Eight workstations + eight workstations (optional) |
Features of High-precision Turning And Milling Composite CNC Vertical Lathe
(1) High-precision Turning And Milling CNC Vertical Lathe can effectively shorten the time of part processing and improve production efficiency. Turning and milling composite processing can complete all or most of the processing steps at one time, thereby greatly shortening the product manufacturing process chain. Turning and milling composite CNC lathes can reduce the time caused by fixture replacement, and on the other hand, reduce the time for fixture replacement and reduce the error caused by replacement, thereby significantly improving production efficiency.
(2) High-precision Turning And Milling Composite CNC Vertical Lathe can reduce the number of clamping times and improve processing accuracy. The reduction in the number of clamping times avoids the accumulation of errors caused by positioning reference conversion. Turning and milling composite processing equipment all have online detection functions, which can realize online detection and precision control of key data in the manufacturing process, thereby improving product processing accuracy.
(3) High-precision Turning And Milling Composite CNC Vertical Lathe reduces floor space and reduces production costs. Although the price of a single turning-milling composite processing equipment is relatively high, due to the shortening of the manufacturing process chain, the reduction of equipment required for the product, and the reduction in the number of tooling and fixtures, it can achieve high efficiency, high productivity and low cost.

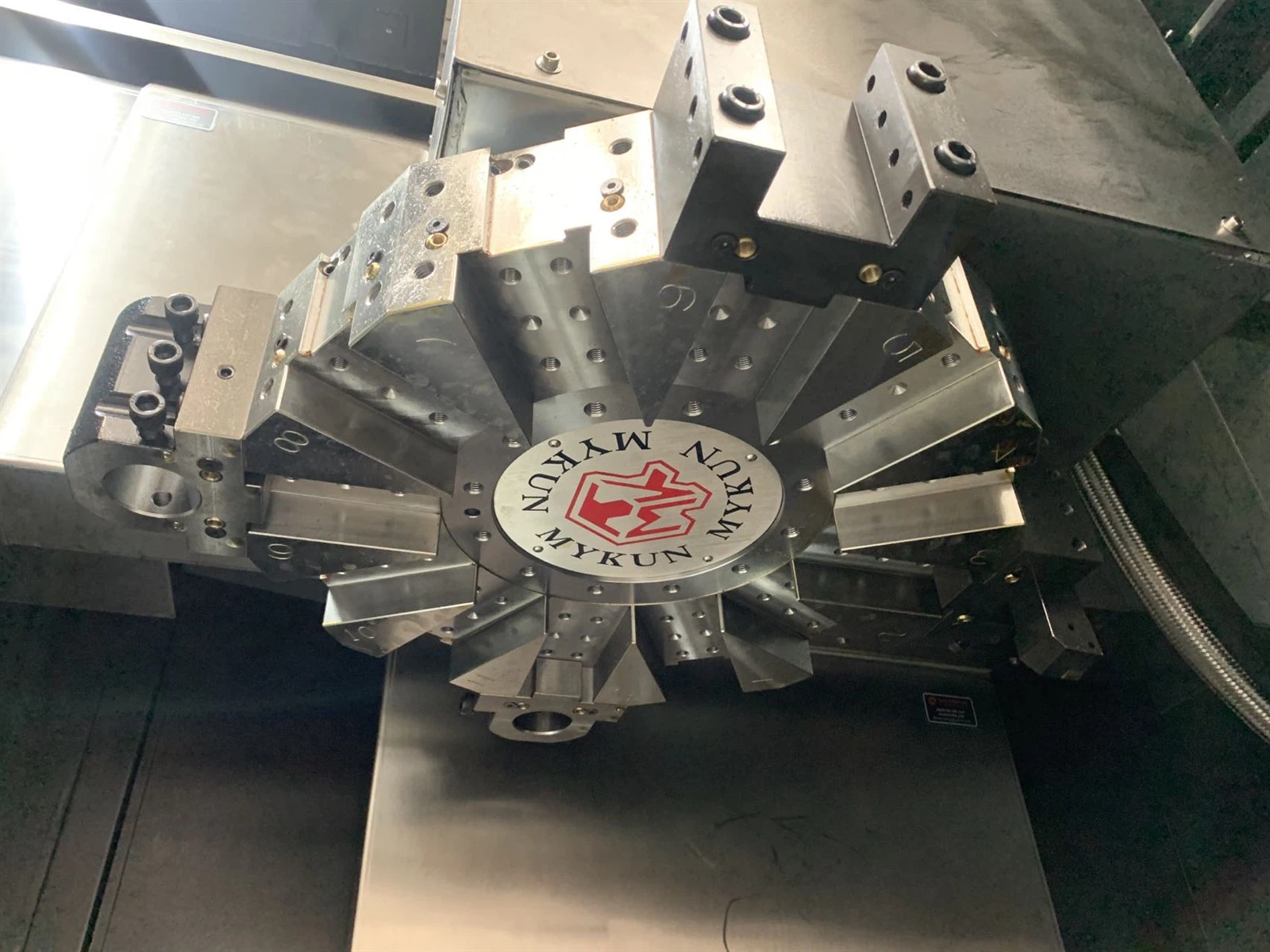

Vertical or horizontal turrets
are available
Tool change times are short
● 4, 8, 10, or 12 station options available.
● Standard configuration: eight-station horizontal hydraulic turret.
● Capable of meeting diverse applications in complex working conditions
Machinable parts
User reviews
Our company's Turning And Milling CNC Vertical Lathe, with their high-rigidity structure, precise machining performance, and intelligent operating system, have won widespread praise from customers in the fields of machining, energy equipment, and automobile manufacturing. Users generally report stable operation and significantly improved efficiency, with particular emphasis on the one-time forming accuracy of complex workpieces and their long-term reliability.
Partner customers
Shandong Sunshine Machinery Co., Ltd. provides customized innovative products to meet the diverse needs of our clients, along with lifetime service, ensuring your peace of mind. Our main products include standard and non-standard CNC equipment such as CNC vertical lathes, CNC slant lathes, machining centers, and hydraulic presses. Our sales network covers the entire country and extends overseas, with a stable customer base in Europe and Southeast Asia.
