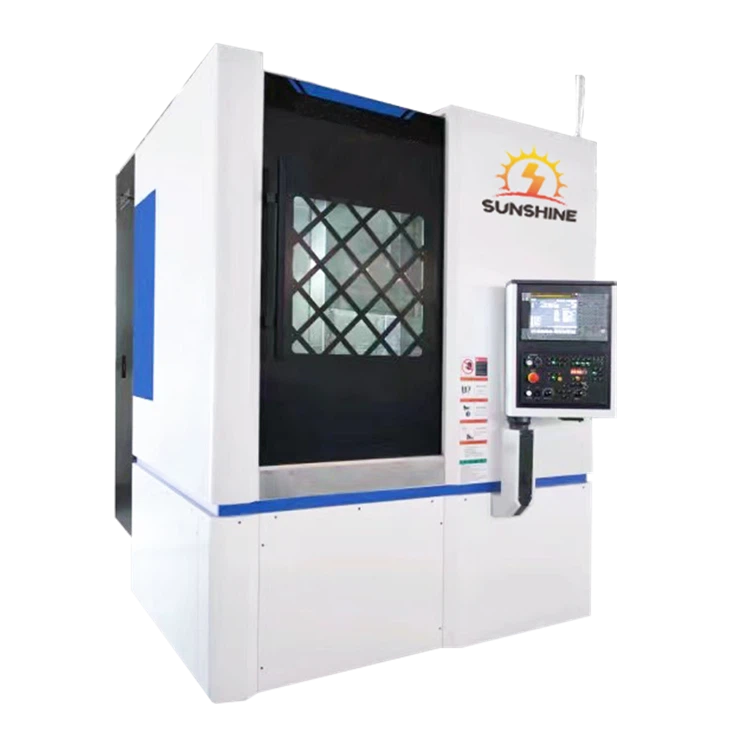

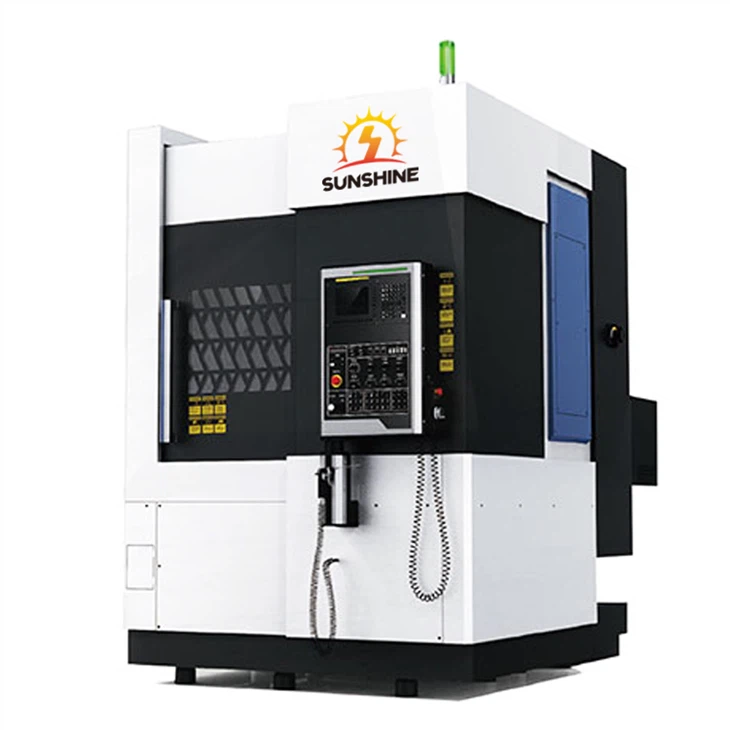

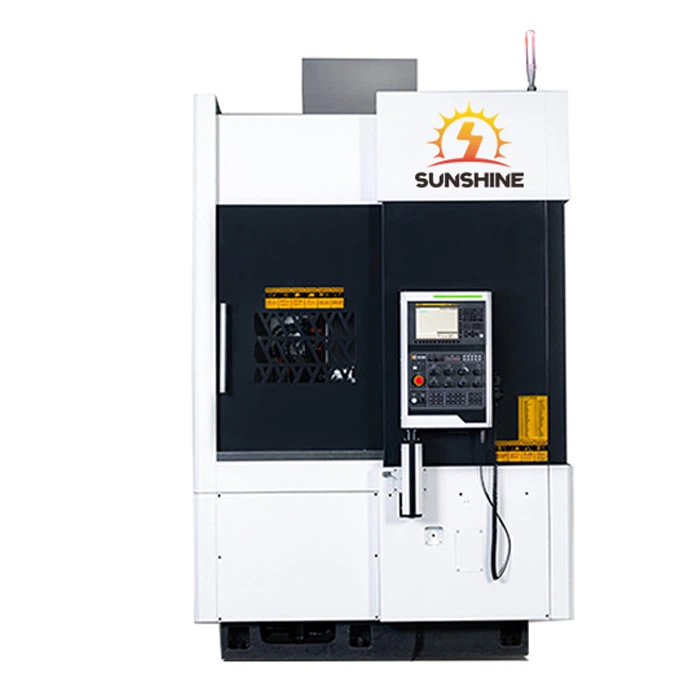

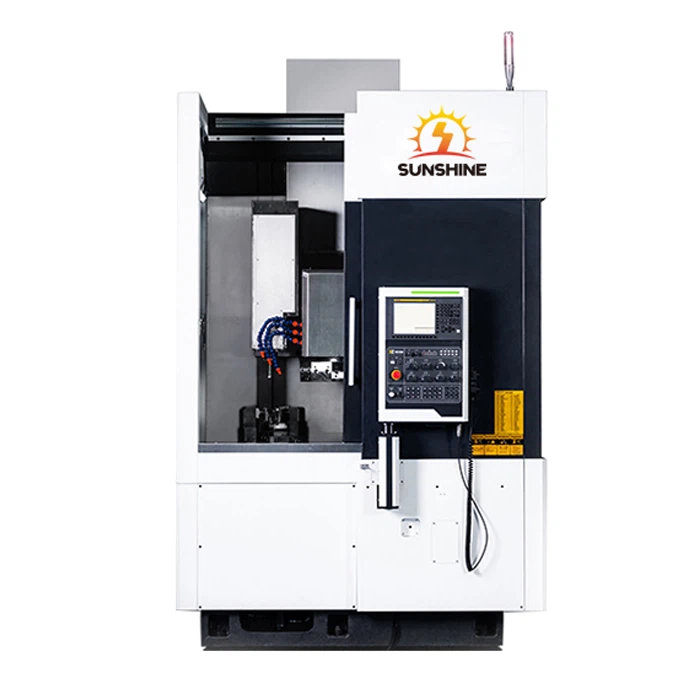

Siemens 808d CNC Vertical Lathe



01

Source supplier

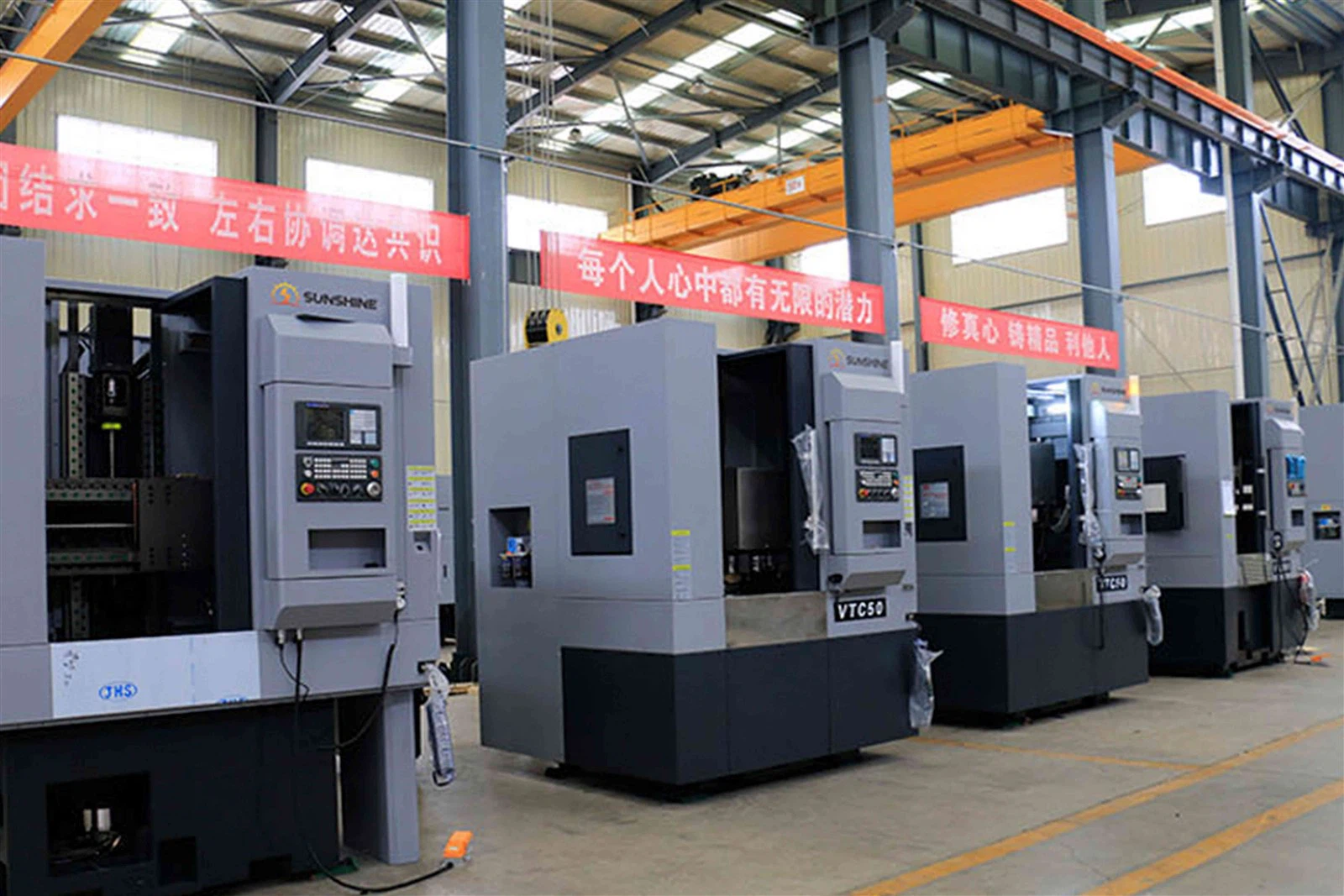

Complete range of CNC machine tool models and varieties from our manufacturers



02

Affordable prices

No middlemen, choose the right CNC machine tool equipment according to your budget



03

Quality guaranteed

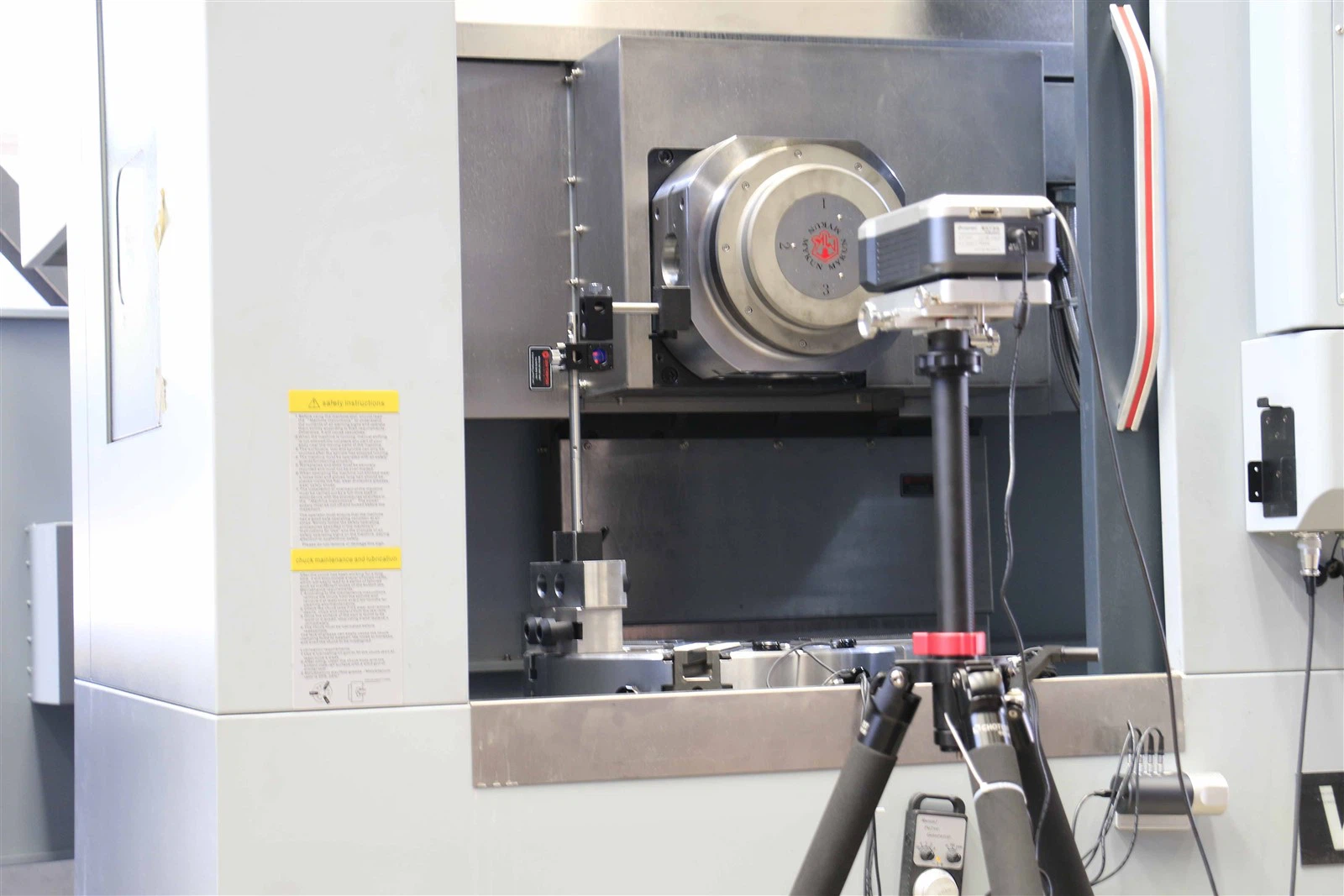

All CNC vertical lathes undergo laser testing before shipment to ensure equipment quality



04

Fast shipping

Multiple shipping options available, customs clearance documents provided

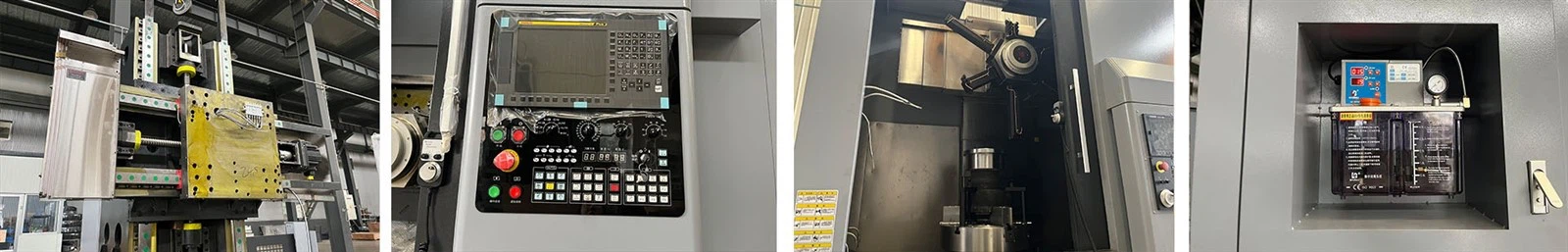

The VTC series CNC vertical lathes utilize heavy-duty linear rolling guideways for their column guideways, offering excellent dynamic response and high precision retention. The X/Z axes employ high-precision ball screws and dedicated ball screw bearings, ensuring excellent precision retention. The entire structure is fully enclosed for environmental protection and cleanliness. The CNC vertical lathe is equipped with a high-quality six-position vertical electric tool post, offering high rigidity and fast tool change speeds. A reliable centralized machine tool control panel makes operation more convenient and efficient. The CNC vertical lathe's spindle sleeve features a fully symmetrical suspension design, better eliminating the impact of thermal deformation on machining accuracy. A high-power AC spindle motor enhances the machine tool's operational stability. The spindle is lubricated with imported high-grade grease, and the saddle is fully enclosed and maintenance-free.

Custom tooling or electric tool post, hydraulic chuck, coolant pump, chip conveyor, and chip flushing device can be configured according to customer requirements.

The VTC series CNC vertical lathes are primarily designed for machining complex disc-shaped, shell-shaped, and short shaft-shaped parts. They can also machine various threads, arcs, and internal and external curved surfaces, full surfaces, and grooved parts of rotation. The main components of the CNC vertical lathe, such as the spindle, base, and crossbeam, have a rational structure. Key components, such as the tool post, chuck, and ball screws, are sourced from well-known domestic and international manufacturers to ensure the machine tool possesses high rigidity, high precision, and high reliability.

● The CNC vertical lathe offers a range of tool post options, encompassing a four-station electric tool post, or alternatively, you can choose from a six-station or eight-station hydraulic turret, as well as a vertical turret configuration.

● The Siemens 808d CNC Vertical Lathe is built with HIWIN ball screws that are matched with FAG ball screw bearings, organized in a three-front and two-rear arrangement.

● For the purpose of cleanliness preservation, the X and Z axis guideways and screws on the Siemens 808d CNC Vertical Lathe are installed with protective mechanisms.

● A centralized automatic volumetric lubrication system is integrated into the Siemens 808d CNC Vertical Lathe.

● The machine tool's external protective design is simple yet functional, facilitating easy, adaptable, and dependable operation.

Automotive parts

wheel hubs, brake discs, flywheel discs, flanges, pulleys, brake drums, etc.

Mechanical transmission components

such as short shafts, drive shafts, etc.

General-purpose parts

bearing rings, main bearing caps, cylinder blocks, transmission housings, etc.

Special purpose parts

such as engine components, turbine blades, wheel rims, shock absorber seats, etc.

● Equipment is shipped using moisture-proof film or vacuum packaging. Metal surfaces are coated with a sealing-type rust-preventive oil and sealed with vapor-phase rust-preventive paper to withstand the high humidity of sea transport.

● Fumigation or heat treatment and internationally labeled wooden crates ensure smooth customs clearance.

● Fumigation-free plywood crates can be used, offering advantages such as lightweight design and excellent moisture resistance.

● After CNC machine tools are loaded into containers, high-density EPE foam, custom air column bags, or EPS foam linings are used, precisely designed according to the shape of the equipment.
