Perform all machining operations in a single setup

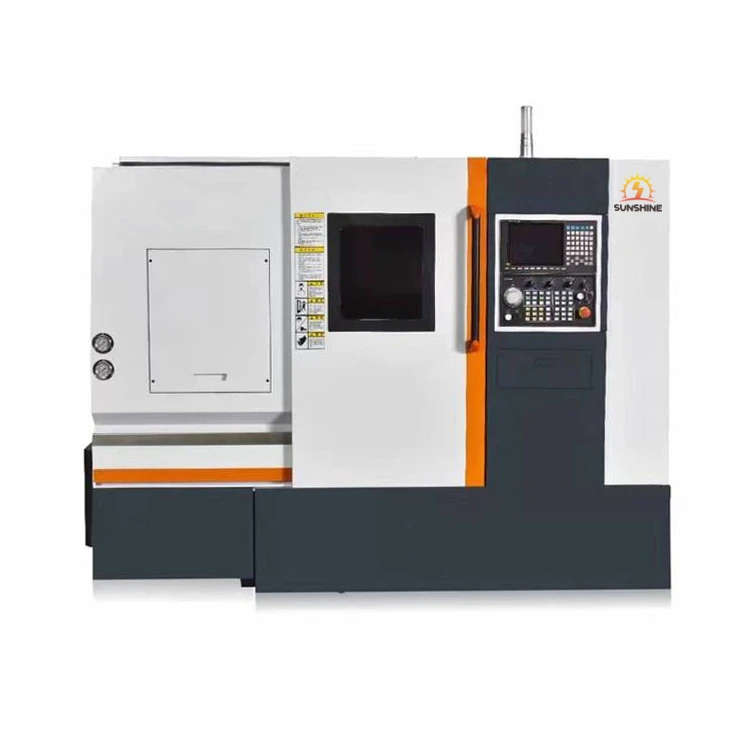

----TCK Series

CNC inclined lathes designed for disc parts processing deliver robust multi-tasking capabilities, supporting the machining of a wide range of large and long workpieces. These lathes are extensively utilized across key industries including aviation, energy, shipbuilding, and medical equipment manufacturing-sectors where precision and reliability are non-negotiable.

Featuring a modular design and highly flexible configuration options, these CNC inclined lathes unlock diverse machining possibilities. They enable complete one-stop machining of complex components, covering everything from basic general turning operations to the precise machining of intricate, high-precision parts. This versatility eliminates the need for multiple machine setups, reducing production time and improving overall machining efficiency.

Shortened Production Time Reduced Floor Space Reduced Staffing

75% 3/2 3/2

Product Details

Safe Processing

The fully enclosed protective processing area effectively prevents the escape of chips, coolant, mist, and other materials generated during processing, while also isolating noise, providing a safe and healthy working environment for operators.

Centralized Maintenance Area

The slant-bed CNC lathe's adjustment and maintenance functions are centralized in one location, facilitating daily maintenance and upkeep.

Remote Pulse Handwheel

The housing is constructed of high-strength, impact-resistant material, and the encoder utilizes a non-contact optical detection mechanism, ensuring consistent accuracy even after millions of cycles.

Multi-Color Cables

The electrical cabinets on the slant-bed CNC lathe are color-coded according to their intended use, enabling easy reference and quick maintenance, saving time.

Product Features

●Taiwan Roller-Type Linear Guides
●High-Speed, High-Precision, High-Rigidity Spindle Unit
●High-Power Y-Axis Motor
●Built-In Lubrication System
●High-Rigidity Integral Slant Bed

Spindle Options

Electric spindle

Compact structure, light weight, low noise, low moment of inertia

Space-Saving: Electric spindles eliminate the need for belts and gears, minimizing intermediate transmission losses while significantly reducing the overall footprint of slant-bed CNC lathes-ideal for workshops with limited space.

High Precision: Digitally controlled electric spindles deliver fast response times and exceptional rotational accuracy, making slant-bed CNC lathes a top choice for high-precision machining applications where tight tolerances are required.

High Efficiency: With electric spindles as the core drive system, slant-bed CNC lathes cut machining time dramatically-reducing it to as little as 25% of standard machining cycles, which boosts overall production throughput.

High Quality: Slant-bed CNC lathes equipped with electric spindles produce superior machining finishes, eliminating the need for additional post-machining processes such as polishing or secondary cutting.

Mechanical spindle

High-Speed, High-Precision, High-Rigidity Spindle

High Speed: Slant-bed CNC lathes incorporate high-speed, precision-matched bearings paired with rigid or elastic preload mechanisms. This design achieves consistent high rotational speeds while ensuring optimal cutting performance for demanding machining tasks.

High Precision: High-precision bearings, combined with precision-manufactured components, guarantee that radial runout of the 7:24 taper bore relative to the mounting surface stays within 0.005mm-meeting the strict tolerance requirements of high-precision machining.

High Efficiency: The mechanical spindle of slant-bed CNC lathes supports continuous speed fine-tuning, allowing instantaneous adjustment of cutting speed throughout the entire machining process to maximize production efficiency and reduce cycle times.

Low Noise: Spindles are dynamically balanced to G1 or G0.4 (per ISO 1940-1) standards, ensuring low noise operation even at maximum rotational speeds-enhancing workshop comfort and compliance with workplace noise regulations.

Turret Optional

Servo Turret

●The servo turret for the slant-bed CNC lathe utilizes a high-precision triple-end gear lock, providing strong locking force and high precision.
●The servo turret for the slant-bed CNC lathe features bidirectional indexing, allowing for the selection of any nearby tool, resulting in efficient tool changes.
●The servo turret for the slant-bed CNC lathe allows for release, indexing, and anchoring without lifting the tool.
●The servo turret for the slant-bed CNC lathe features a compact and rational structure, stable mechanical performance, and high cost-effectiveness.
●The servo turret for the slant-bed CNC lathe utilizes imported proximity switches for rapid tool change signal sensing.

Drive Turret

●The servo motor drives the tool turret for slant-bed CNC lathes, enabling rapid bidirectional tool selection and high tool change efficiency.
●The tool turret drive for slant-bed CNC lathes utilizes a high-precision triple-end gear lock, providing strong locking force and high precision.
●The locking force is hydraulically driven to lock the gear disc, ensuring reliability.
●A driven tool holder enables integrated turning, milling, and drilling.
●The tool turret drive for slant-bed CNC lathes utilizes a driven tool holder, enabling axial, radial, and special fixed-angle machining.
