High Precision High Efficiency High Rigidity

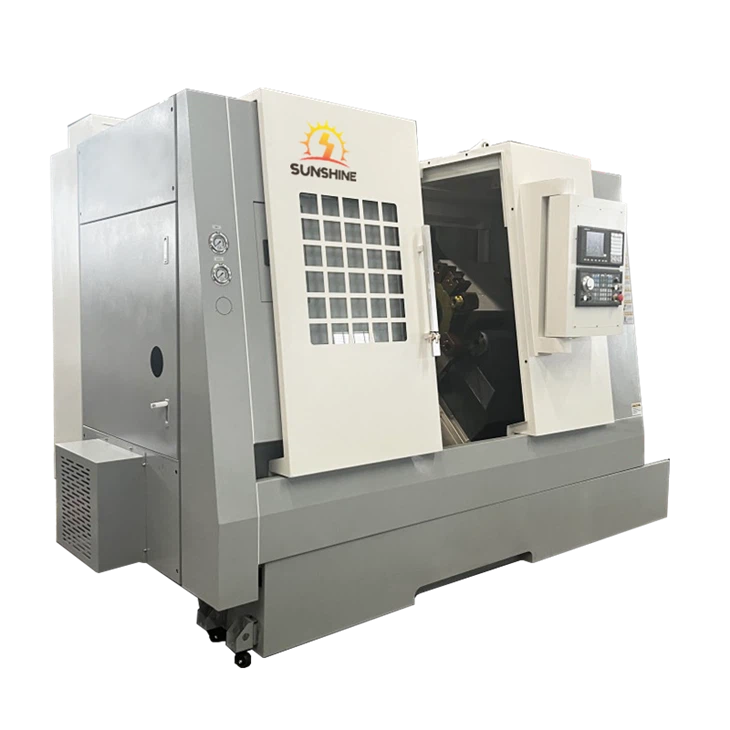

High-Speed Inclined Bed Lathe

CNC slant bed lathes are designed to achieve higher precision, efficiency, and rigidity compared to traditional machines. With high-precision linear and arc interpolation and various compensation functions, these machines are capable of producing complex, high-quality parts with minimal operator input.

With fast tool changes and rapid traverse speeds, CNC slant lathes minimize cycle times and maximize productivity. Furthermore, their fully automated processes enable long periods of unattended operation, further enhancing efficiency.

Application Areas

CNC slant lathes are widely used in a wide range of industries and fields, including aerospace, medical devices, energy, transportation, automotive manufacturing, mold making, heavy machinery manufacturing, and new energy. They can process parts such as gearboxes, clutch housings, engine blocks, crankshafts, transmissions, drive gears, discs, and pulleys.

Product Parameters

Specification	unit	TCK4556-1000
Swing over bed	mm	560
Swing over slide	mm	350
Max machining length	mm	1000
Spindle motor power	KW	30-37
Diameter of spindle through hole	mm	65
Max spindle speed	rpm	50-4500/177
Tilt angle	deg	45
Hydraulic chuck	-	15"/18"/21"
X-axis travel	Kw	200
Z-axis travel	mm	1050
Tailstock sleeve diameter / travel	mm	900
Sleeve taper	MT	6
X/Z fast movement	m/min	30/30
Overall dimensions	mm	500024002800
Machine weight (approx)	Kg	4500

Product Features

●High-precision Taiwanese linear guides
●High-speed spindle unit
●High-strength cast iron
●Automatic centralized lubrication
●Integral slant bed
●Optional powered turret

Product Advantages

Excellent safety and protection

The slant-bed CNC lathe features superior safety features, automatic chip removal, automatic cooling, and automatic lubrication, significantly improving operator working conditions.

Low Labor Intensity

Slant-bed CNC lathes require only loading and unloading parts, changing tools, and automated machining controlled by the operator panel. Complex, repetitive manual operations are eliminated, significantly reducing labor intensity.

Excellent Flexibility

Slant-bed CNC lathes utilize CNC machining program control. When parts are changed, simply modify the CNC machining program to automatically process the new part.

Low Error

Slant-bed CNC lathes automatically machine according to pre-set procedures, eliminating the need for manual intervention and eliminating operator error or mistakes.
