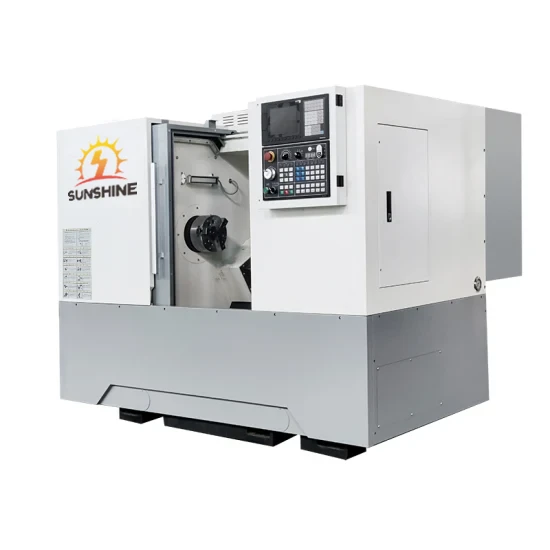

CNC Inclined Lathe For Shaft Parts Processing
Low vibration, high-rigidity bed
Product Display
MAIN FEATURES
●The processing area has a single-layer pull cover and independent guide railswithhigh reliability.
●The non-processing area has armor protection withsmall footprint.
●The sleeve is extended and tightened, and the radial hydraulic locking isconducive tothe processing of long-axis workpieces.
●The flat sliding guide rail, high-rigidity manual bottom plate locking, highreliability.
●The enlarged chip removal port arranged directly below the spindle ismoreconvenient for the discharge and cleaning of cutting chips.
Product Features
Casting Machine Beds
All castings for CNC Inclined Lathes for Shaft Parts are analyzed using advanced testing equipment to ensure excellent material quality. They undergo secondary annealing and primary aging to eliminate vibration effects, resulting in a stable metallographic structure and excellent precision retention.
Quilted Spindle Box
The quilled spindle box for CNC Inclined Lathes for Shaft Parts utilizes a large-span, symmetrical structure, minimizing thermal drift and ensuring stable precision.
The interface between the spindle box and the lathe bed utilizes a paired scraping process to ensure contact rigidity.
Tool Turret
The tool turret for CNC Inclined Lathes for shaft parts machining features a large-span turret and a rigidly locked geared disc structure, providing strong load-bearing capacity.
The tool turret for CNC Inclined Lathes for shaft parts machining has a 350mm tool setting range and eight M16 mounting screws, ensuring full tool turret rigidity.
Compact Structure
The tailstock upper and lower sections of the CNC Inclined Lathes for shaft parts machining feature a compact design and are equipped with a 100mm diameter lockable quill. The tailstock of the CNC inclined lathe for machining shaft parts adopts a sliding guide structure, and the strict scraping and grinding process ensures the contact stiffness of each joint surface.
Processing Case Studies
Customer Cooperation
