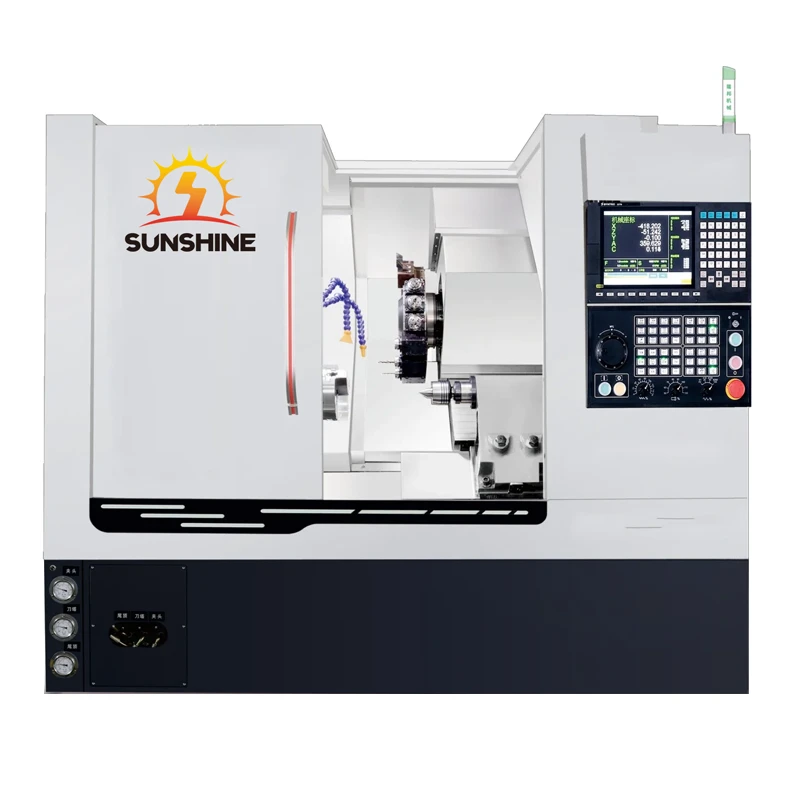

CNC Inclined Lathe
High Speed ▎High Precision ▎High Reliability
Products Description
CNC inclined lathes are suitable for machining various small and medium-sized shaft and disc parts. They can turn various threads, arcs, cones, and internal and external curved surfaces of rotating bodies.
CNC inclined lathes are widely used in industries such as plumbing equipment, valves, electrical appliances, instruments, automobiles, motorcycles, and bearings.
Equipment Features
Hydraulic chuck
The CNC inclined lathe utilizes a hydraulic chuck, which offers high precision, a wide clamping range, and fast clamping speed, ensuring reliable operation.
Hydraulic Tailstock
The hydraulic system of the CNC inclined lathe uses a cylinder to drive the center, enabling micron-level adjustment of the clamping force, eliminating the workpiece bending and vibration caused by the backlash of traditional screw drives.
Bed guide rails
Hardened guide rails ensure fast toolholder indexing, high positioning accuracy, and high tangential torque. The CNC inclined lathe bed is made of high-quality cast iron, medium-frequency hardened, and molded.
Quenched tailstock
The design of the quenched tailstock helps reduce the number of clamping times. The tailstock sleeve undergoes high-frequency quenching treatment and is carefully ground to prevent wear and tear.
Tailstock Optional
Manual Tailstock
The tailstock is supported by linear guides and automatically clamped by a dedicated clamp. The tailstock offers high rigidity, stable accuracy, and simple and flexible manual operation, greatly improving machining efficiency and making it suitable for heavy cutting and high-precision machining.
Hydraulic Tailstock
A servo motor drives the movement and tightening of the tailstock, achieving automated and intelligent tailstock operation, improving machining efficiency and ease of operation. Tailstock travel and tailstock thrust can be configured on the CNC system interface, making it suitable for unmanned machining in various applications. The tailstock spindle can be configured with a built-in dead center (MT4) upon request. The tailstock spindle is supported by bearings and rotates.
●The CNC inclined lathe saddle is made of high-density cast iron, integrally cast in a single operation. The small triangular structure enhances the saddle's rigidity.
●The CNC inclined lathe adopts 35 specification live ball guide rails and the lead screw adopts high-precision ball screw, which has high precision and accurate transmission.
● CNC inclined lathes are specially designed to minimize equipment footprint, making them the best choice among machines with similar footprints.
Optional Configurations
This machine can be customized. Please contact us if you require additional configurations.
