200T Special Hydraulic Press For Brake Pads
Equipped with Siemens PLC for fully automatic control. High efficiency, energy saving, and environmentally friendly operation.
Productivity: 8 pieces per mold, mold cycle approx. 4 minutes. One operator can manage three machines simultaneously, significantly saving labor and material costs.
Send Inquiry
Product Details of200T Special Hydraulic Press For Brake Pads
Forging / stamping / straightening / flanging: mechanical equipment that uses the static pressure of hydraulic oil delivered by an oil pump to process metal, plastic, rubber, wood, powder, and other materials.
Reasonable design
Simple operation
Easy maintenance
Brake pads produced using the 200T Special Hydraulic Press
200T Hydraulic Press Main Parameters
| Technical Parameters | YJH-200T | |
| Nominal pressure(KN) | 2000 | |
| System pressure(Mpa) | 25 | |
| Slider stroke(mm) | 500 | |
| Maximum opening height(mm) | 800 | |
| Effective size of workbench | The left and right sides | 720 |
| The front and rear sides | 700 | |
| Slider speed(mm/s) | ldle stroke | 120 |
| Feeding | 14 | |
| Back tracking | 72 | |
| Ejection force(KN) | - | |
| under cylinder stroke(mm) | - | |
| Motor power(KW) | 11 | |
Hydraulic Press Main Structure and Configuration

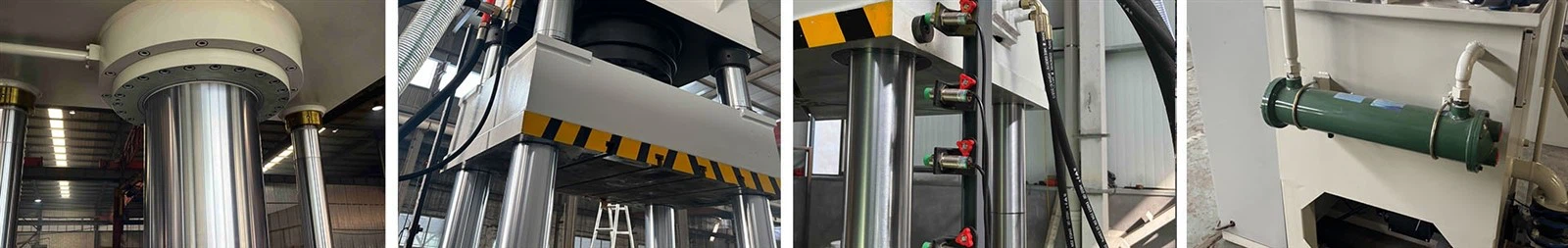

Crossbeams and Frame
The upper and lower crossbeams and the slide are manufactured from one-piece cast steel, ensuring no deformation or damage during long-term use. The columns feature a hard-chrome plated surface for wear and rust resistance. The entire machine utilizes an integrated steel structure to guarantee stability under long-term heavy-load operations.

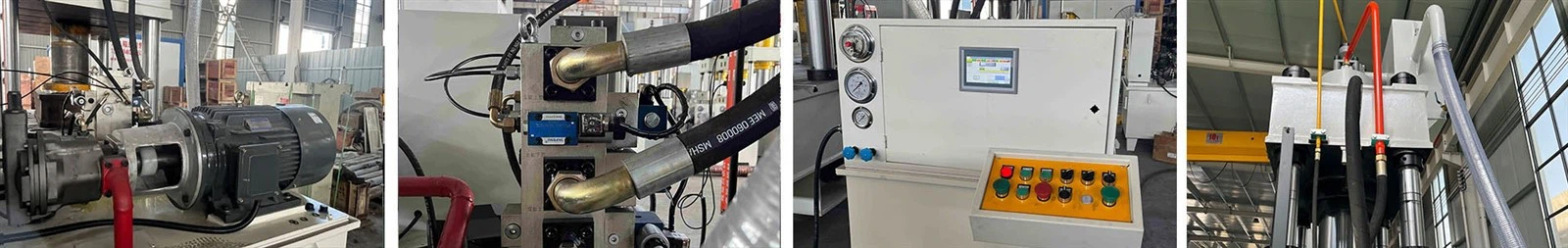

Hydraulic System
The system employs an optimized design integrating high-flow cartridge valves and electro-hydraulic proportional valves to minimize pressure loss and hydraulic shock. It operates smoothly with low heat generation and utilizes high-quality hydraulic components and high-pressure, leak-proof piping to extend equipment service life.
Electrical Control
Equipped with an imported PLC system, the machine offers strong anti-interference capabilities and a low failure rate. Process parameters can be adjusted via an LCD screen, and the system supports push-button operation. It can be connected to factory loading/unloading devices or software systems, allowing for customized configurations.
Molding Dies
The molds are made from special wear-resistant steel, ensuring high precision and durability. Certain mold components are detachable, helping to reduce operating costs.
Performance Features of Brake Pad Hydraulic Press
Rapid Action: Utilizes an advanced rapid-action mechanism and a tandem cylinder design to increase movement speed and production efficiency.Highly Integrated Valve Block: Features an extra-large flow diameter valve block to reduce system pressure loss, prevent leakage, and lower oil temperature.Automation Expansion: Optional automatic screw feeders or chain conveyors can be added based on operational needs, reducing manual labor intensity.Ease of Operation: A highly automated control panel allows key operational sequences to be completed with a single button press.
Other details of 200T Special Hydraulic Press For Brake Pads
Shandong Sunshine Machinery Co., Ltd. boasts a stable global customer base. Its products are widely used in high-end manufacturing fields such as precision mold making, automotive parts processing, electronic communication equipment production, and aerospace component manufacturing, gaining recognition from domestic and international customers for their superior performance. The company actively expands its global market, exporting its products to over 40 countries and regions including Russia, Thailand, Iran, Vietnam, India, Algeria, Bangladesh, Saudi Arabia, Nigeria, and South Africa. It has established long-term and stable cooperative relationships with customers worldwide, gradually building a market network covering Asia, Africa, Europe, and Australia.
Whatsapp
+8617863752766
Email
linna.sunshinemachinery@gmail.com
Wechat
+8618769237879
Telephone
+8617863752766
Certificates
Shipping Photos
Customer Visit Photos
FAQ
Q: How is oil temperature controlled?
Standard automatic cooling system activates when oil temperature exceeds 55°C. Optional oil heater available for cold environments. Temperature rise is kept within 15°C under normal operation.
Q: What is the noise level?
≤75dB (idle), ≤80dB (working). Compliant with EU and US workplace safety standards.
Q: Is remote diagnostics supported?
Yes. Siemens PLC has an Ethernet port. With user authorization, our technicians can remotely diagnose most electrical faults within 2 hours.
