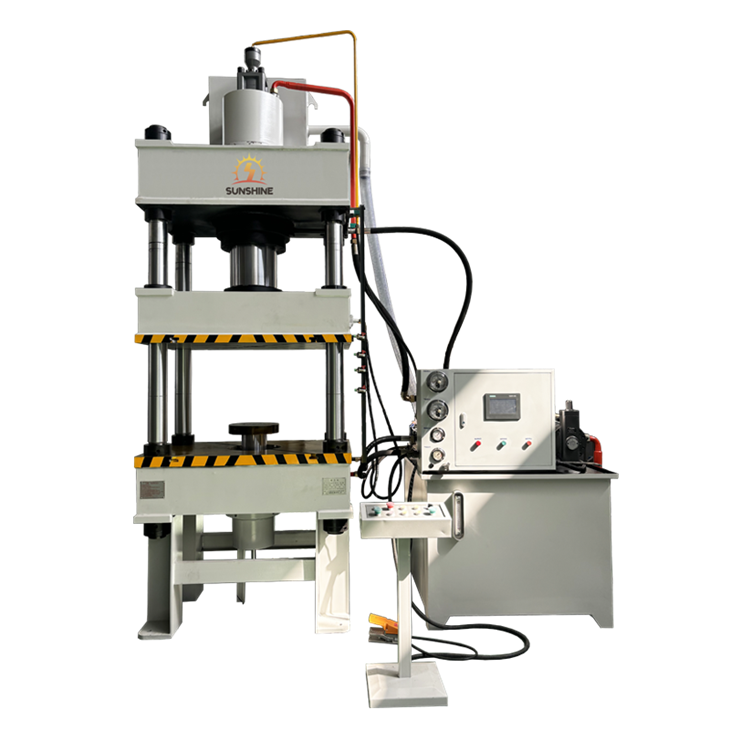

500T Four-column Hydraulic Press With Servo System
Compared to traditional hydraulic presses, the 500-ton four-column servo hydraulic press offers significant energy savings. Depending on the processing technology and production cycle, servo-driven hydraulic presses can save 30% to 70% of electricity compared to traditional hydraulic presses.
| Technical Parameters | Y32-500T | |
| Nominal pressure(KN) | 5000 | |
| System pressure(Mpa) | 25 | |
| Slider stroke(mm) | 700 | |
| Maximum opening height(mm) | 1000 | |
| Effective size of workbench | The left and right sides | 1400 |
| The front and rear sides | 1400 | |
| Slider speed(mm/s) | ldle stroke | 120 |
| Feeding | 15 | |
| Back tracking | 130 | |
| Ejection force(KN) | 630 | |
| under cylinder stroke(mm) | 260 | |
| Motor power(KW) | 22×2 | |
Products Description
► This 500T hydraulic press is equipped with a servo hydraulic press and uses a high-sensitivity, fast-response servo motor.
► The hydraulic press uses a high-precision displacement sensor for detection, achieving a repeatability accuracy of up to 0.02mm.
► The hydraulic press operates with ultra-low noise, better ensuring worker safety.

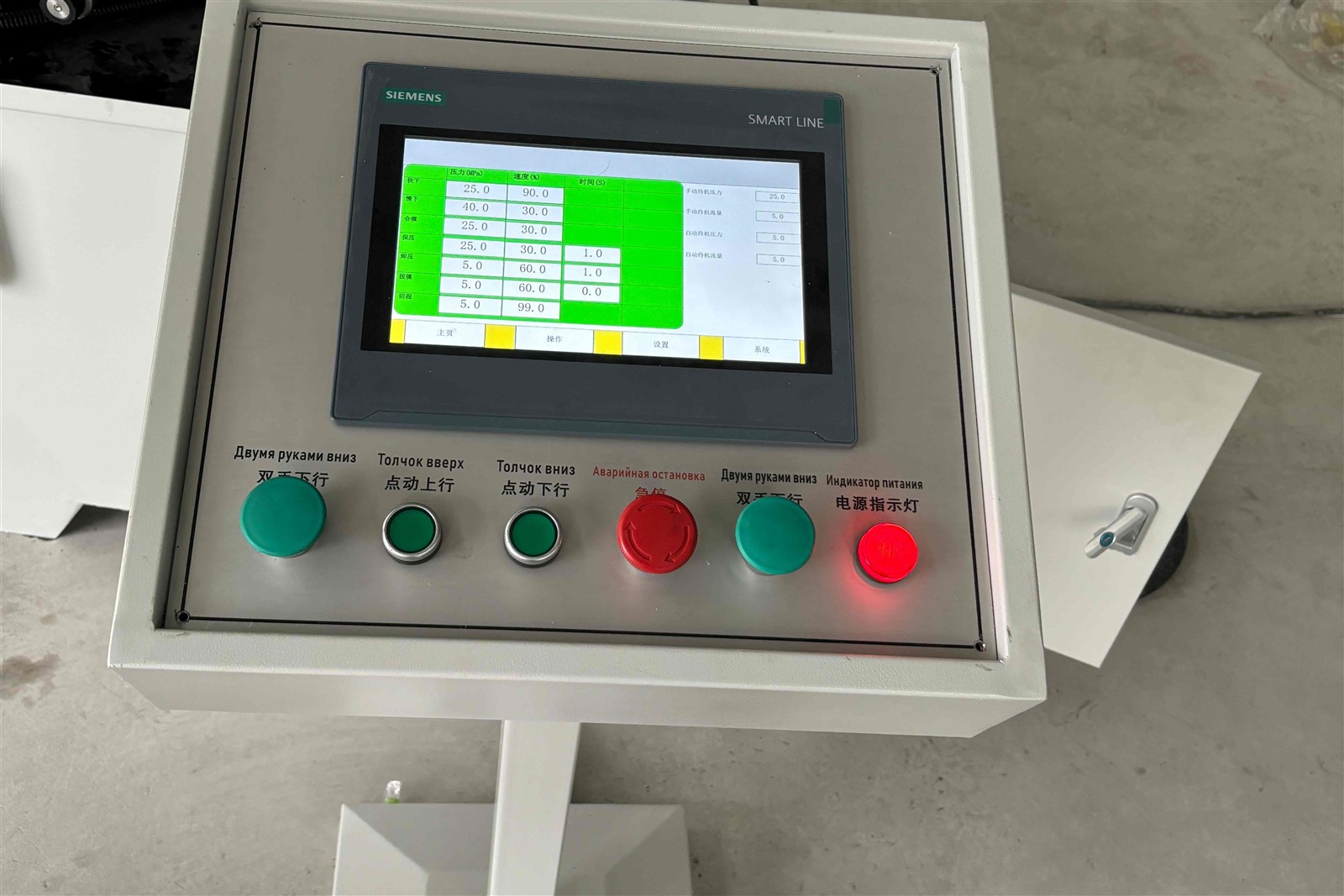

► The machine operation is more user-friendly, featuring a user-friendly human-machine interface. Pressure, position, and speed can be set and adjusted arbitrarily on the computer screen. Touch screen parameter settings and monitoring enable digital control.
► The hydraulic press can be configured with an automated production line. In fully automated production mode, the production cycle can be shortened by approximately 20% compared to traditional models.
► The hydraulic press uses a servo hydraulic system control, which can meet the speed and pressure changes required by different processes, resulting in more stable movement.
► Lower heat generation and lower cost. The hydraulic oil consumption of a servo-driven hydraulic press is typically only about 50% of that of a traditional hydraulic press.
Servo Hydraulic Press Application Areas
■ Plastic Products: Such as plastic bottles, plastic boxes, plastic pipes, etc.
■ Rubber Products: Such as tires, rubber hoses, rubber seals, etc.
■ Composite Material Products: Such as fiberboard, fiberglass products, etc.
■ Electronic and Electrical Components: Such as mobile phone casings, computer casings, television casings, LED heat sinks, etc.
■ Hardware Tools: Such as watch cases, watch straps, eyeglass frames and parts, picture frames, tableware, signs, locks, etc.
■ Other Metal Products: Such as deep-drawn products like sinks and automotive parts, as well as cold-extruded metal parts, sheet metal forming parts, stamped parts, and drawn parts.
■ Powder Metallurgy Products: Such as powder-formed parts made from cemented carbide, electronic ceramics, inductor cores, magnetic materials, iron-silicon-aluminum, glass, alloys, etc., especially suitable for powder forming of ultra-small, irregularly shaped, complex, multi-step, and other precision products.
Certificate Display
Hydraulic press delivery and transportation
● Customized packaging available upon request
● Booking service available
● Covers sea, land, and air transportation.
● Full-process visual tracking, real-time cargo inquiry
● Can handle customs clearance procedures in various countries, providing necessary documentation
