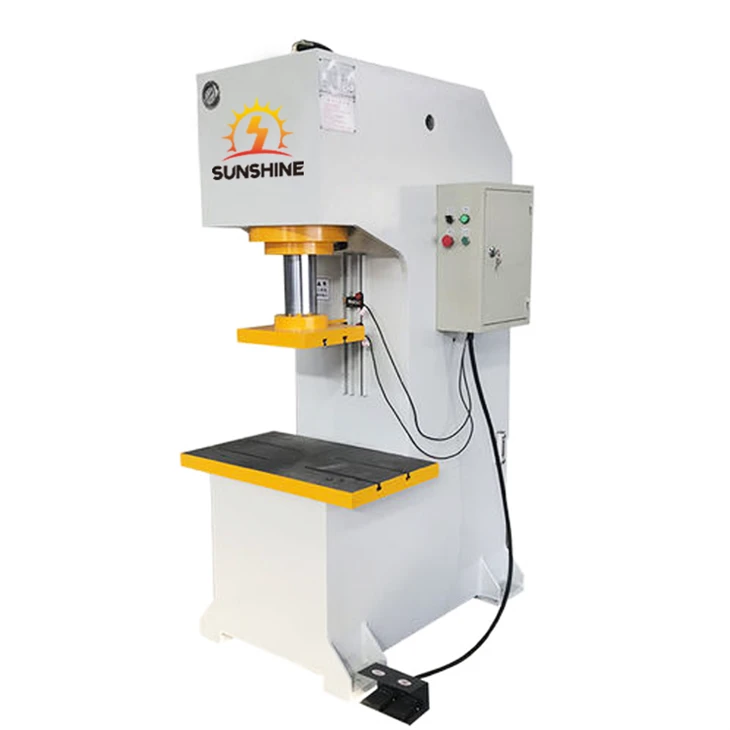

100T Single-Arm Hydraulic Press
◆ Widened base
◆ Time-sensitive processing
◆ Configuration as needed
Single-arm hydraulic presses are suitable for calibrating shafts and other components, as well as pressing shafts and sleeves. They can also be used for simple drawing, forming, and blanking. The Y41 100T single-arm hydraulic presses feature simple foot-operated linkage. The hydraulic series uses electro-hydraulic directional control valves or cartridge valves, featuring a compact structure, safety, reliability, and rapid response. It boasts advantages such as high speed, low energy consumption, and low noise.
Main parameters of 100T single-arm hydraulic press
| Technical Parameters | Y41-100T | |
| Nominal pressure(KN) | 1000 | |
| Slider stroke(mm) | 320 | |
| Maximum opening height(mm) | 500 | |
| Throat depth(mm) | 250 | |
| Effective size of workbench (mm) |
The left and right sides | 600 |
| The front and rear sides | 450 | |
Detailed features of a single-arm hydraulic press
Customization available upon request
Worktable
The reinforced worktable, with its surface hardened and polished finish, makes the hydraulic press more durable.
Automation Programming
The single-arm hydraulic press utilizes PLC automation programming to improve productivity and product quality.
Corvus Headquarters Complex
The hydraulic press can process parts with high precision requirements and fine surface roughness requirements. This allows for convenient and stable maintenance, and the stroke height is adjustable.
Foot switch
The foot brake frees up the hands, enabling precise control and efficient, safe operation, especially suitable for pressing scenarios requiring continuous force or complex hand gestures.
How to customize a hydraulic press?
Worktable Dimensions: The hydraulic press's worktable length, width, and height are customized according to the workpiece dimensions to ensure the workpiece can be fully placed and operation is convenient.
Opening Height and Stroke: Adjust the hydraulic press's maximum opening height (maximum distance between the moving beam and the worktable) and effective stroke (range of movement of the moving beam) to accommodate the pressing requirements of workpieces of different thicknesses.
Hydraulic presses are customized in rated pressing force based on workpiece material and pressing process requirements. Single-arm hydraulic presses are customized in terms of the slow pressing speed after the moving beam contacts the workpiece, ensuring forming quality.
Hydraulic presses can also store pressing parameters (such as pressure, speed, and holding time) for different workpieces via PLC or touchscreen for convenient and quick recall.
The 100T single-arm hydraulic press control mode can be customized to flexibly select manual, semi-automatic or fully automatic modes according to production needs. The manual mode is suitable for simple operation and debugging. The semi-automatic mode uses PLC to achieve precise control of a single cycle to improve efficiency. The fully automatic mode integrates industrial computers and sensors to achieve multi-process closed-loop control, data traceability and remote monitoring, meeting diverse application scenarios from single machine operation to intelligent production lines.
Single-column hydraulic presses are customized with safety light curtains, two-hand operation buttons, emergency stop buttons, overpressure protection devices, etc., according to working conditions to ensure operational safety. Protective covers or safety doors can also be designed to prevent injury from flying debris during pressing.
■ We sell products in various specifications, allowing customers to choose according to their specific needs.
■ Ample stock and fast delivery.
■ All products undergo strict quality inspection, ensuring reliable quality.
Our company is located in the beautiful Shandong of China.we owns plants dependently above 60 thousand m2,has fixed assets worth more than million Yuan,and more than 210 employees. We are proud to deliver super performance and durability. Sunshine Machine is dedicated to offering superior quality equipment, at competitive prices and with excellent service.
