Double-column CNC vertical lathe -- KD series

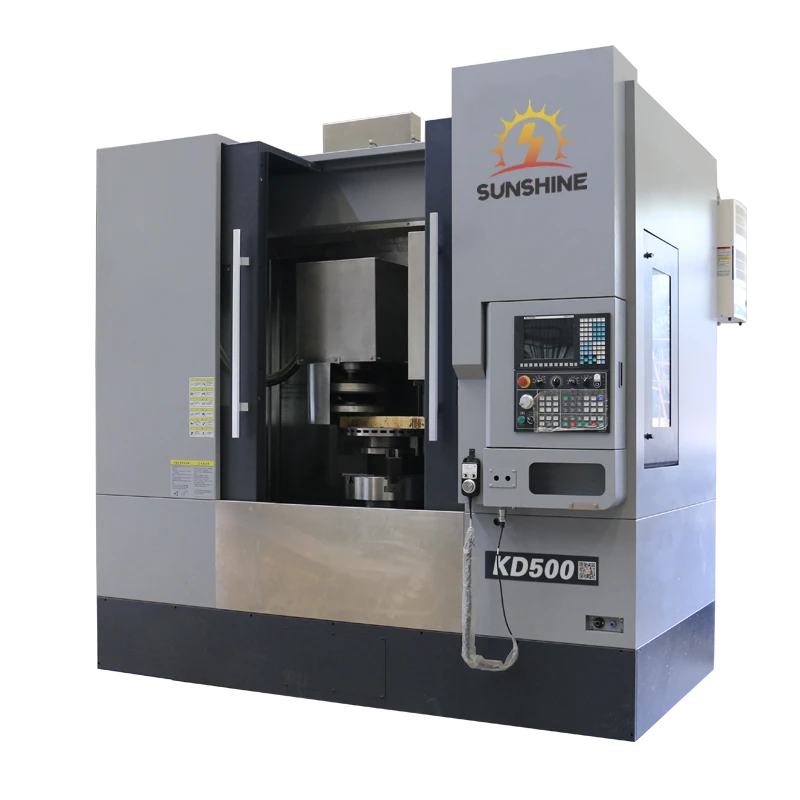

KD500 double-column lathe is an automated CNC machining machine. It adopts a double-column structure and is used to process the inner and outer cylindrical surfaces, conical surfaces, end surfaces, grooving and chamfering of parts. This machine is particularly suitable for machining disc parts such as brake discs.
Functional features
Dynamic column structure, solid and stable, strong heavy cutting capacity
High-power spindle motor, high torque output
Three-line rail on X-axis, greatly improves the rigidity and mobile stability of the machine tool
Double chip removal machine rear row, ultra-high iron pin clearing efficiency
Brake disc can feed two knives at the same time, double guarantee of accuracy and effect
Travel and processing capacity
X axis: 300mm
Z axis: 500mm
Maximum processing capacity: Φ650mm
Maximum turning diameter: Φ500mm
Maximum turning height: 500mm
Spindle speed: 100-1000mm
Spindle motor power: 30kw
Core shaft outer diameter: Φ160mm
X axis rolling linear guide: 3, width 55mm
Z axis rolling linear guide: 4, width 55mm
Repeat positioning accuracy: ±0.003
Positioning accuracy: ±0.006
Minimum positioning unit: 0.001
Dimensions (approx.): 2800*2400*2910mm
Gross weight (approx.): 10000kg
The KD500 double-column CNC vertical lathe adopts a double-moving column structure. Two sets of saddles and slide plates are installed on the bed, which are controlled separately, effectively saving space and occupying a small area. The double column can process the rough turning and fine turning of the workpiece at the same time, effectively improving the customer's processing and production efficiency and reducing production costs while ensuring accuracy.
Standard Configuration
CNC system
KND K2000 dual channel
Lead screw
X/Y/Z axis lead screw
Taiwan Hiwin
Spindle unit
TAC structure
Germany FAG/Japan NSK spindle bearings
Linear rails
X/Y/Z axis rails
Taiwan Taiwen
Hydraulic chuck
15-inch three-jaw hydraulic chuck
Taiwan Jiaquan
Turret
Dual eight-station turrets
Taiwan Maikun
CNC machine tool inspection
All our equipment undergoes strict quality inspection before leaving the factory.
Three-coordinate detection
Our double-column CNC vertical lathe uses three-coordinate inspection and data analysis to ensure that the inspection quality is true and reliable.
Laser detection
Double-column CNC vertical lathe can achieve higher positioning accuracy through laser detection, and the inspection standard meets ISO standards
