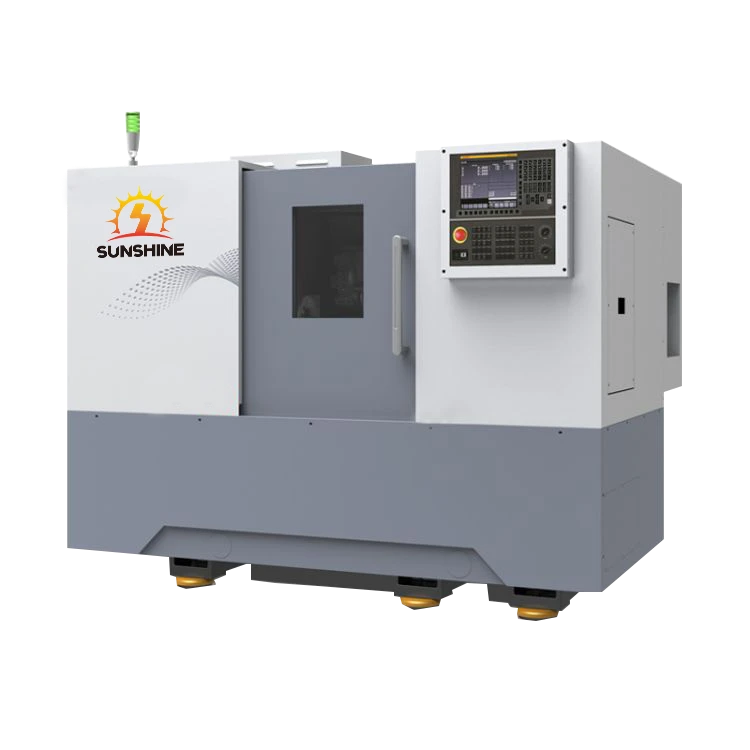

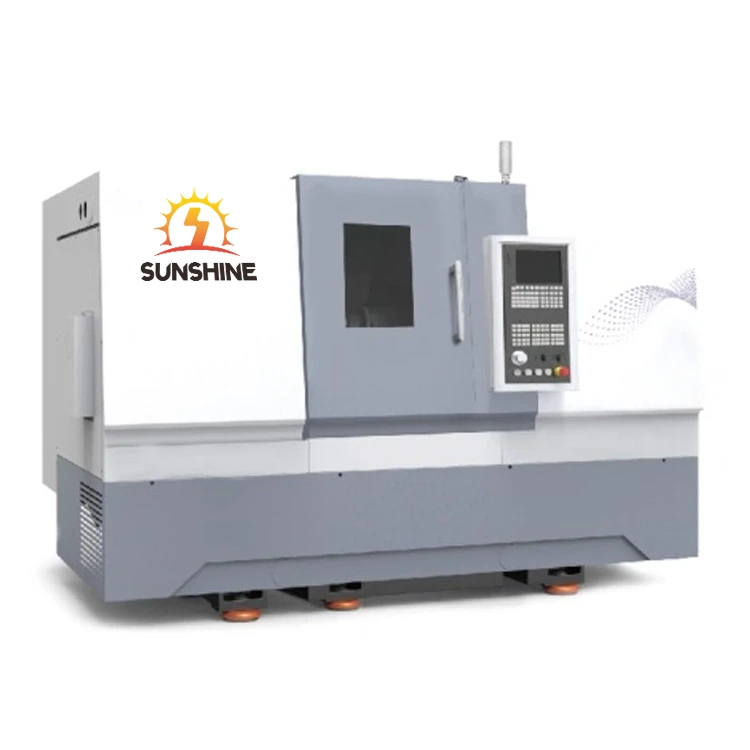

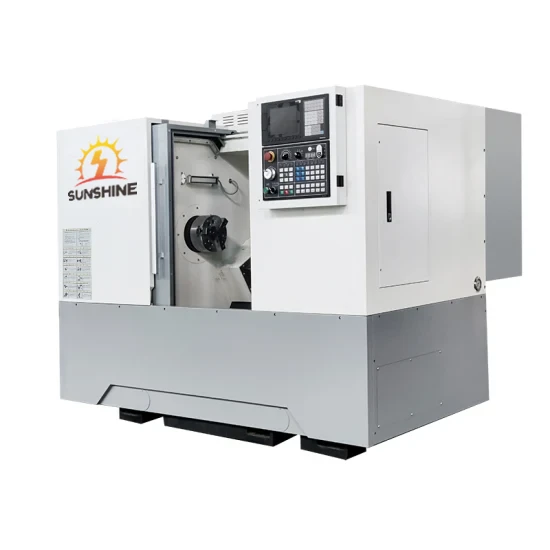

Name: CNC Slant Turning Cutting Length 500 CNC Lathe Suppliers and Manufacturers China - Customized Products Wholesale - Sunshine Machinery
Brand: SUNSHINE
SKU: 287389174

◆ Stable performance
◆ Easy to operate
◆ Source manufacturer

TCK4550 Main Technical Parameters

Specification	unit	TCK4550
Swing over bed	mm	500
Swing over slide	mm	360
Max machining length	mm	500
Spindle motor power	KW	11-15
Diameter of spindle through hole	mm	65
Max spindle speed	rpm	50-4500/177
Tilt angle	deg	45
Hydraulic chuck	-	8"/10"
X-axis travel	Kw	200
Z-axis travel	mm	550
Tailstock sleeve diameter / travel	mm	450
Sleeve taper	MT	5
X/Z fast movement	m/min	30/30
Overall dimensions	mm	230016001800
Machine weight (approx)	Kg	3600

Features of Slant Bed CNC Lathe

1. High Precision

The slant-body CNC lathe is controlled by a CNC system, enabling precision machining of various workpieces. Its high cutting accuracy, small error, and good repeatability result in high-precision, stable, and reliable products.

2. High Efficiency

CNC Slant Turning Cutting Length 500 CNC Lathe comes with a high-performance automatic CNC control system to run the entire machining process automatically. It delivers faster cutting speeds and higher overall production efficiency compared with conventional manual lathes.Featuring user-friendly operation, it cuts down labor workload and setup time, greatly boosting output capacity to fully support mass production requirements.

3. High Rigidity

This slant-bed CNC lathe is built with high-strength structural materials for outstanding overall rigidity, stability and compact construction.It holds steady even during heavy-duty machining with minimal vibration throughout the cutting process, delivering smooth operation and maintaining consistent precision to secure reliable workpiece quality.

4. Wide Applicability

The slant-body CNC lathe can machine various materials, including metals and plastics. Unlike other types of lathes, the slant-body CNC lathe has a greater advantage when machining large-sized workpieces. At the same time, it also has strong adaptability and performs excellently when processing workpieces of various shapes.

5. High-Rigidity Guideways

The slant bed CNC lathe features a single-layer pull cover and independent guideways in the machining area, ensuring high reliability; the non-machining area is protected by compact armor. The slant bed's sleeve employs an extended fastening method with radial hydraulic locking, beneficial for machining long-shaft workpieces. The planar sliding guideways and high-rigidity manual base plate locking ensure high reliability. An enlarged chip removal port is located directly below the spindle for easy chip discharge and cleaning.

Main application areas of slant bed CNC lathes

◆Precision Parts Machining

Aerospace: High-precision, complex geometric parts such as engine blades, turbine disks, and aerospace structural components.

Automotive Manufacturing: Parts such as engine blocks, crankshafts, drive shafts, transmissions, and gears.

◆Long Shaft Machining

Energy Sector: Machining parts with high length-to-diameter ratios, such as wind turbine main shafts, gas turbine shafts, and large motor shafts.

Marine and Heavy Machinery: Machining heavy-duty long shaft parts such as marine crankshafts, large gear shafts, and hydraulic cylinders.

◆High-Efficiency Cutting and High Productivity

Machining: Suitable for mass production of automotive parts, standard parts, and hardware accessories.

Machining of Difficult-to-Machine Materials: Machining high-strength, high-hardness materials such as high-temperature alloys, titanium alloys, stainless steel, and cemented carbide.
