If you are in need of 500T Hydraulic Press to help with your business, please rest assured to wholesale with us. We are one of the leading such manufacturers and suppliers in China with over 20 years' history. And the customized service is also available.

We offer custom-built salt licking machines in various tonnages for cattle and sheep, tailored to different salt block weights.

Hydraulic Press for Cattle and Sheep Licking Bricks

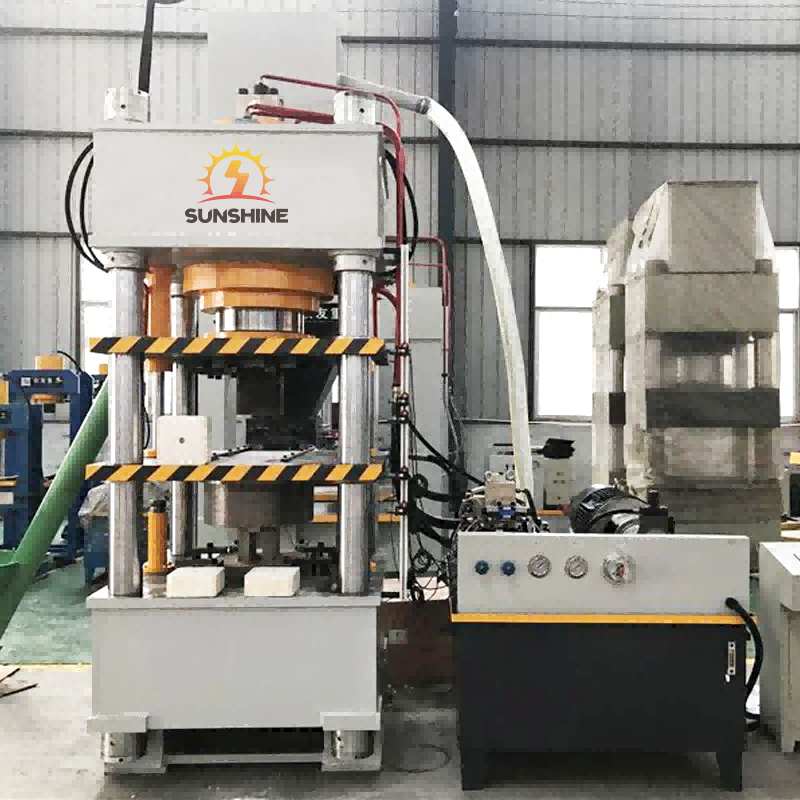

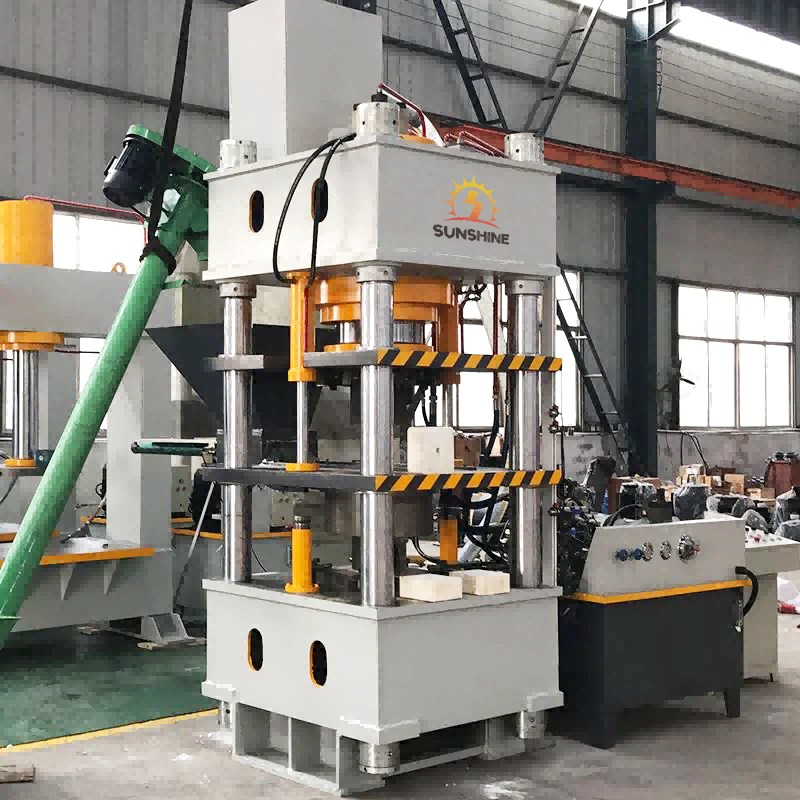

Our 500t hydraulic press is dedicated to the production of mineral blocks for cattle and sheep, serving as a specialized hydraulic compaction and molding system for powdered materials. This equipment is capable of uniformly compressing a blend of minerals, vitamins, trace elements, and nutritional supplements-specifically formulated for cattle, sheep, and other large livestock-into solid, lickable blocks. The finished products can be produced in various shapes, including cylindrical, rectangular, and square forms. These finished goods are commonly referred to as "mineral lick blocks" or "salt lick bricks."

Our 500T Salt Brick Powder Forming hydraulic Press equipment accurately blends and compresses livestock nutrients into solid forms, making storage and transportation more convenient. It greatly improves animal health, growth performance, and overall economic efficiency. This is an essential solution for livestock farming, widely known as a key "livestock health product."

Main technical parameters of 500T hydraulic press

Technical Parameters		Y32-500T
Nominal pressure(KN)		5000
System pressure(Mpa)		25
Slider stroke(mm)		700
Maximum opening height(mm)		1000
Effective size of workbench	The left and right sides	1400
	The front and rear sides	1400
Slider speed(mm/s)	ldle stroke	120
	Feeding	15
	Back tracking	130
Ejection force(KN)		630
under cylinder stroke(mm)		260
Motor power(KW)		22×2

The specifications listed above represent the standard parameters for the Y32-500T model. We offer a range of other models and also support customization. If the specifications of the Y32-500T do not meet your requirements, please contact us to outline your specific needs, and we will recommend a suitable product for you.

Optional Safety Devices for 500T Salt Lick Block Hydraulic Presses

Stop & Emergency Stop Buttons：The machine stops immediately when the Stop button is pressed during abnormal conditions. Pressing Emergency Stop cuts off the motor instantly.

Motor Protection：The motor control panel is fitted with thermal relays and circuit breakers for overload, overcurrent and short-circuit protection, preventing motor damage.

Anti-Drop Safety Valve：A safety valve is installed in the main cylinder circuit to prevent the slide from accidental dropping. The slide can hold position securely at any height.

Hydraulic Overload Protection：A relief valve is integrated into the hydraulic system. If pressure exceeds the preset value, the system automatically releases excess oil to maintain safe pressure. The setting is adjustable to avoid overload operation.

Overpressure Protection：An electric contact pressure gauge continuously monitors main cylinder pressure. The machine automatically stops once the set pressure is reached, providing reliable overpressure protection.

Company Introduction

With over 10 years of production experience, our company specializes in the design, manufacture, and sales of various types of hydraulic presses, including single-column, four-column, gantry, grinding wheel forming, powder metallurgy, head forming, and SMC molding machines. We also offer custom-made hydraulic presses to meet specific customer needs.
