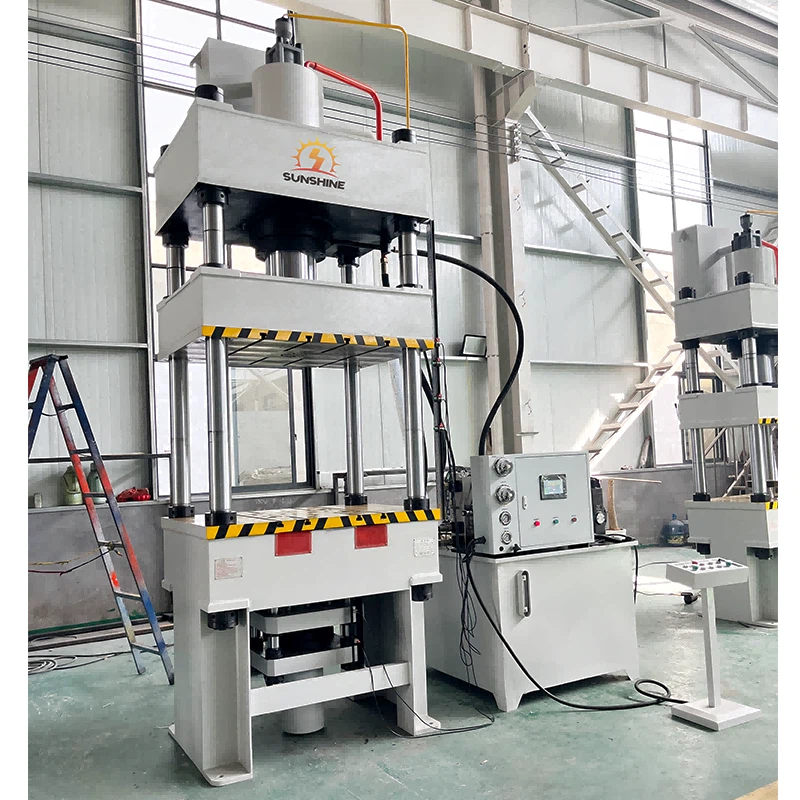

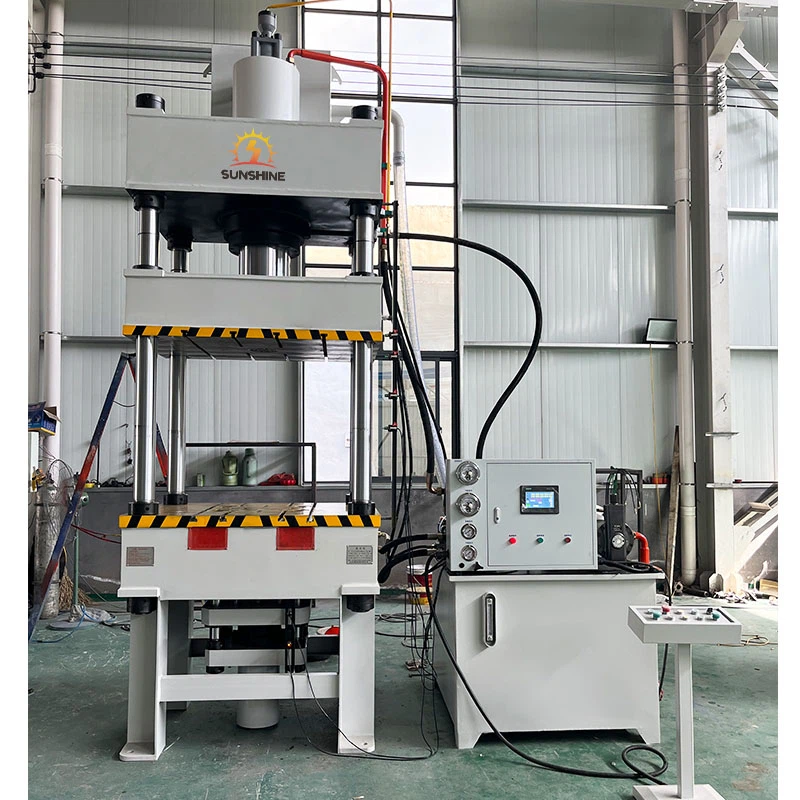

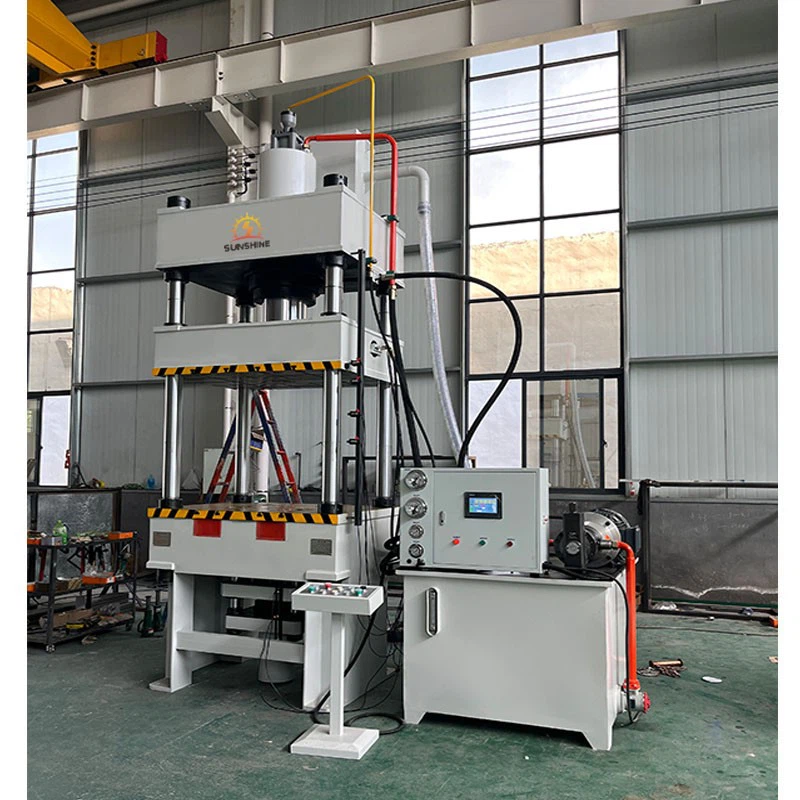

Hydraulic Press Machine 300 Ton

If you are in need of Hydraulic Press Machine 300 Ton to help with your business, please rest assured to wholesale with us. We are one of the leading such manufacturers and suppliers in China with over 20 years' history. And the customized service is also available.

	Rated Force	3150 kN
	System Pressure	25 MPa
	Table Size	1260×1160 mm (customizable)
	Slide Stroke	800 mm
	Maximum Opening Height	1250 mm
	Hydraulic Buffer Ejection Force	1600 kN (edge ​​clamping + ejection)
	Hydraulic Buffer Stroke	350 mm
	No-load Descent/Pressure/Return Speed	120/14/69 mm/s
	Motor Power	15/22 kW

Features of hydraulic press

It features a practical and reliable "three-beam, four-column" structural design. The hydraulic press adopts a rectangular overall profile, endowing the equipment with exceptional structural rigidity, load-bearing capacity, and resistance to off-center loading.

The exterior design is sleek, modern, and aesthetically pleasing.

Our 300 Ton Hydraulic Press Machine utilizes a cartridge valve hydraulic control system, integrating the core valve assembly directly into the manifold block. This design significantly reduces potential leak points and minimizes pressure loss. Compared to conventional presses, this system offers more responsive operation and greater energy efficiency. Furthermore, maintenance is highly convenient; instead of having to dismantle hydraulic hoses throughout the machine, you can simply unscrew and replace the individual cartridge valves.

Engineered specifically for wheelbarrow production, this hydraulic press supports one-stop processing including sheet stretching, forming and bending. It is widely used for manufacturing wheelbarrow hoppers, material baskets and other wheelbarrow body components. The built-in independent hydraulic cushion accurately adjusts blank holder pressure during processing, effectively eliminating wrinkling and cracking on cold-rolled steel sheets, galvanized steel sheets and other metal panels.

Our 300 Ton Hydraulic Press Machine supports flexible customized configurations. Its overall setup can be fully adjusted to match different production requirements, including varying product sizes, structural shapes, and sheet metal materials. Whether you need to modify hydraulic pressure, adjust stroke range or upgrade functional components, the machine can be tailored to fit diverse metal forming and stamping specifications.

Contact Us to Share Your Requirements

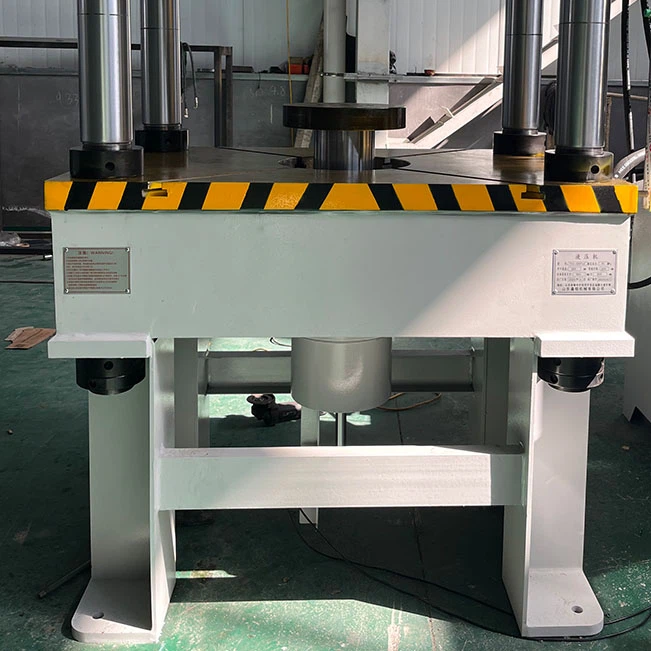

Ejector cylinder

Hydraulic cushion

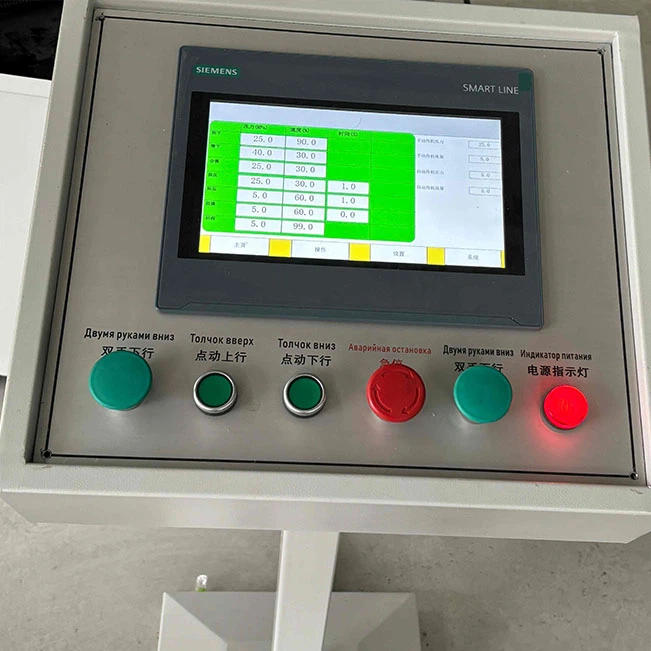

PLC system

Servo motor

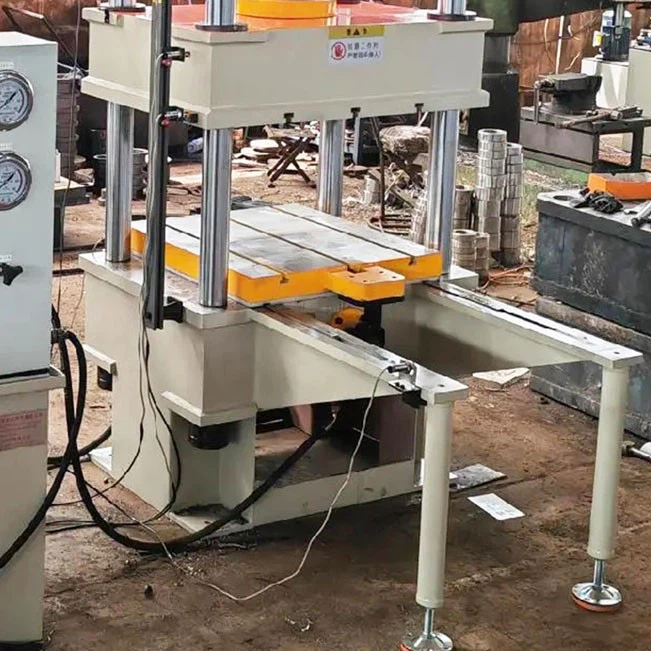

Movable worktable

Infrared protection

Custom molds

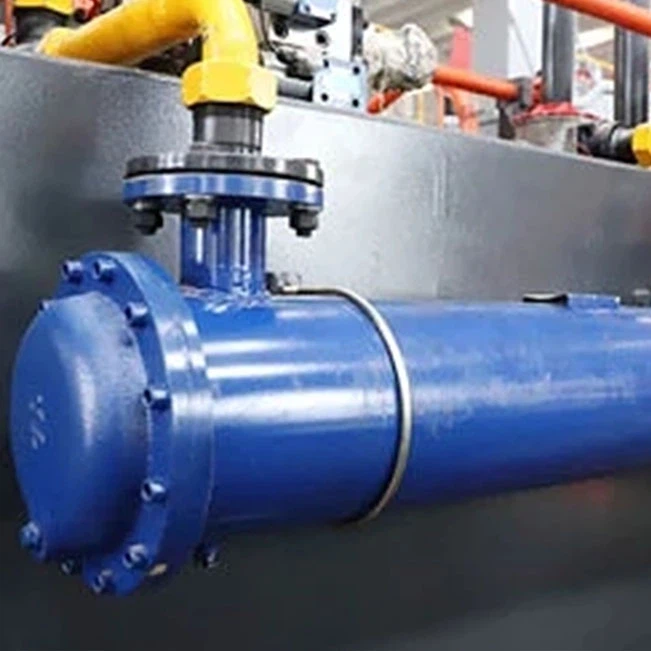

Cooling System

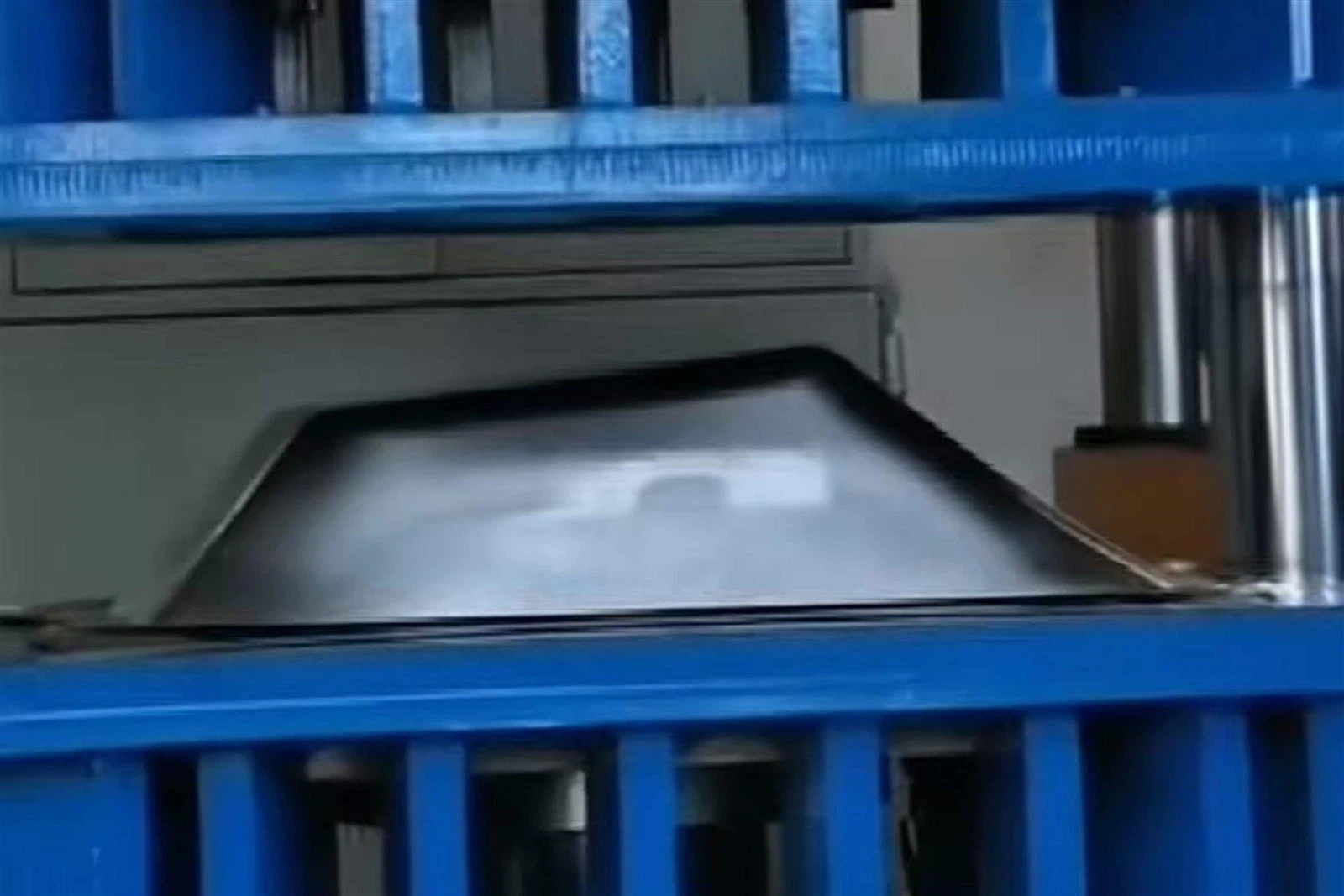

deep drawing forming

shallow stretch forming

metal stretching

Bending

This 300 Ton Hydraulic Press Machine covers versatile industrial forming applications, focusing on the mass production of all types of metal wheelbarrow parts. It perfectly handles deep drawing, shaping, flanging and bending for standard construction wheelbarrows, farm wheelbarrows and logistics hand trolley buckets and bodies. Besides dedicated wheelbarrow fabrication, the machine is also adaptable to the forming processing of various thin metal sheet products, including small metal containers, hardware shells and shallow drawing accessories. Compatible with cold-rolled steel, galvanized steel and other common metal materials, this hydraulic press meets diverse customized metal stamping and forming demands for hardware manufacturing factories.

1. We focus on hydraulic press production and global export, backed by long-standing experience in international trade.

2. Every hydraulic press from our factory is covered by a 24-month warranty. We supply free replacement parts for any damaged components throughout the warranty term.

3. We are fully capable of handling customs clearance for different countries and offering complete customs documents to smooth up your import process.

4. Professional on-site installation, machine commissioning and operational training services are available for overseas clients.

5. We also offer free sample processing and machine testing services for your reference.

6. In addition, our team provides permanent lifetime technical support for all users.
