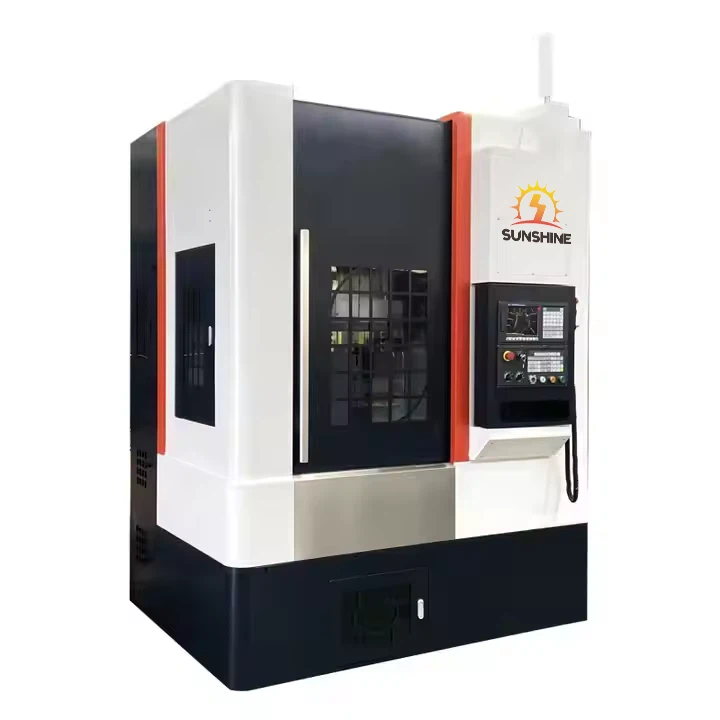

CNC Vertical Lathe Special Machine Tool
◆ Multiple models available ◆ Reasonable prices ◆ One-year warranty
Multiple applications
High-power cutting
The VTC vertical CNC lathe is a high-efficiency and versatile CNC machine tool suitable for a variety of applications, including turning, drilling, and milling. It is ideal for mass production and can process a wide range of materials, such as steel, aluminum, and brass.
| Specification | VTC50 | |
| Stroke | X axis | 500mm |
| Z axis | 0-500mm | |
| Processing capacity | Maximum rotation diameter | φ650mm |
| Maximum turning diameter | φ500mm | |
| Maximum turning height | 500mm | |
| Spindle | Spindle speed | 100-1000rpm |
| Spindle motor power | 15Kw | |
| Spindle diameter | φ130mm | |
| Hydraulic chuck + tool Turret | Chuck model | Hydraulic chuck |
| Chuck diameter | 15" | |
| Turret station | Four workstations/ eight workstations |
|
| guide | X-axis rolling linear guide | 2 pieces, width 45mm |
| Z axis rolling linear guide | 2 pieces, width 45mm | |
| CNC system | Standard configuration | GSK |
| Cooling system | cooling motor | 450+750W |
| Pump output | 4m³/h | |
| Accuracy | Repeatability | ±0.003mm |
| positioning accuracy | ±0.06mm | |
| smallest positioning unit | 0.001mm | |
| Weight and dimensions | Dimensions (approx.) | 2100×2500×2750mm |
| Gross weight (approx.) | 5500Kg | |
The VTC50 is equipped with powerful servo motors and precision slides, ensuring accuracy and repeatability even in complex machining operations. The VTC50 CNC lathe offers a user-friendly interface and selectable CNC system options. The machine tool features intuitive software that simplifies programming and operation, ensuring efficient use by both experienced professionals and novice operators. The software also supports quick tool changes and settings, reducing downtime and increasing productivity.
The VTC50 CNC lathe is versatile and capable of machining products of various sizes and shapes. Thanks to its powerful spindle and tooling design, it can machine different types of materials, from hard metals to soft plastics. The CNC machine tool can also be customized to meet specific needs, allowing for the machining of parts made of different materials.
Standard Configuration for CNC Vertical Lathes
Optional Configurations for CNC Machine Tools
CNC system Fanuc, Siemens, HNC
Taiwan powered turret
Manual chuck/four-jaw chuck/special tooling
Linear guide THK
Ball screw THK
Automation accessories Robot/automatic feeding device/automatic door
