Slant bed CNC lathes are high-efficiency, high-precision machine tools that play an essential role in modern manufacturing. Thanks to their optimized structural design and strong stability, these lathes are widely used to process a wide range of complex components with reliable performance.
Compared with conventional lathes, slant bed CNC lathes deliver clear advantages in stability, chip evacuation, and overall operational convenience.
Compared with conventional lathes, CNC slant bed lathes adopt a slant bed structure that lowers the center of gravity, boosts rigidity, and delivers better chip evacuation. They deliver far greater machining accuracy and repeatability than manual lathes, ensuring consistent part dimensions in batch production. With high automation, these machines can machine complex profiles, radii, and threads in one clamping, which greatly raises productivity and reduces labor intensity, letting one operator run multiple units at once. In general, CNC slant bed lathes outperform traditional lathes in production efficiency, surface finish, and processing flexibility, making them ideal for precision machining and mass manufacturing.
| Specification | unit | TCK4550 |
| Swing over bed | mm | 500 |
| Swing over slide | mm | 360 |
| Max machining length | mm | 500 |
| Spindle motor power | KW | 11-15 |
| Diameter of spindle through hole | mm | 65 |
| Max spindle speed | rpm | 50-4500/177 |
| Tilt angle | deg | 45 |
| Hydraulic chuck | - | 8"/10" |
| X-axis travel | Kw | 200 |
| Z-axis travel | mm | 550 |
| Tailstock sleeve diameter / travel | mm | 450 |
| Sleeve taper | MT | 5 |
| X/Z fast movement | m/min | 30/30 |

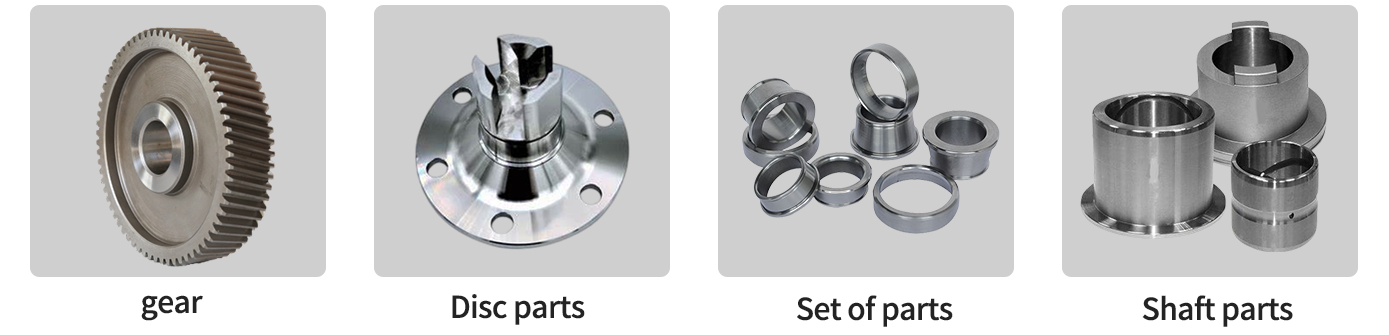

Applications of Slant Bed CNC Lathe
Slant bed CNC lathes serve a wide range of key industries, including automotive components, aerospace, and medical devices.
◆ In automotive production, these machines deliver efficient, high-precision machining for engine parts and other critical components, ensuring consistent quality and reliable performance.
◆ The aerospace sector demands strict standards for materials and precision, and slant bed CNC lathes excel at machining high-strength, difficult-to-cut materials with exceptional stability.
◆ For the medical device industry, which requires tight-tolerance miniature and precision parts, slant bed CNC lathes are highly regarded in the market for their consistent accuracy and dependable operation.
How to Choose a Suitable Slant Bed CNC Lathe?
When selecting a slant bed CNC lathe, focus on a mix of practical factors that fit your production goals-including price point, processing range, configuration options, and after-sales service. These elements work together to ensure you get the best value for your investment.
First, nail down your specific machining needs: be clear on the material types you'll process, the dimensions of your parts, and any tolerance requirements. This clarity ensures the lathe you choose can keep up with your production demands and deliver consistent results.
Choosing a reliable CNC machine tool isn't just about locking in quality-it also means you'll get more thorough after-sales support and easy access to replacement parts when you need them. This minimizes downtime and keeps your operations running smoothly long-term.
Take the time to review the machine's technical specs too. Pay close attention to details like spindle speed and the number of cutting tools it can handle. These specs directly affect how well the lathe performs, so making sure they align with your expectations is key to a smart purchase.
