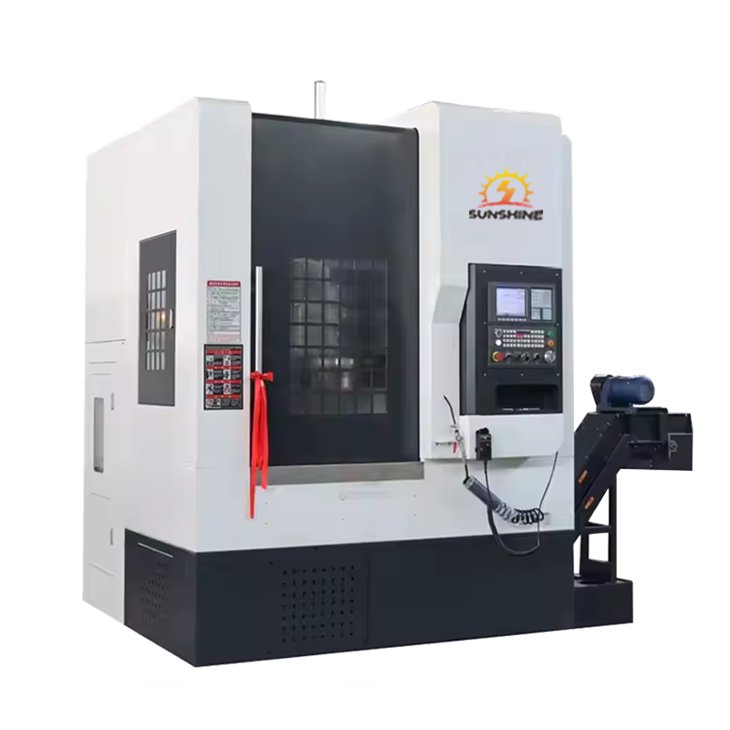

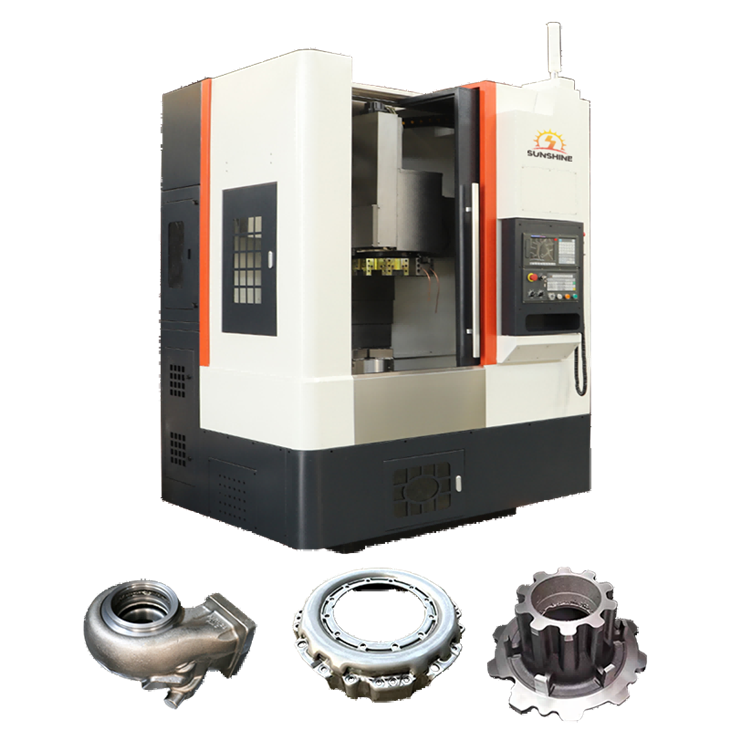

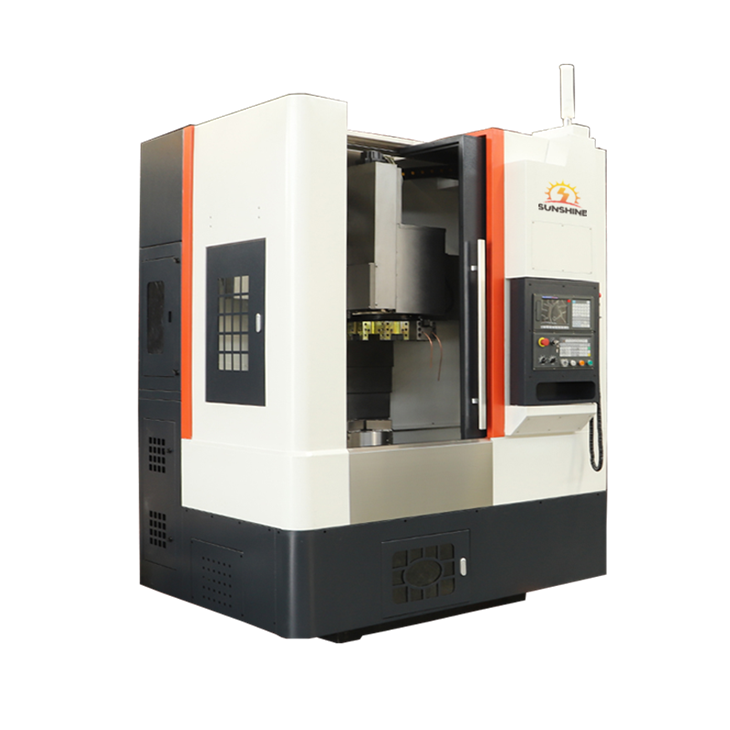

CNC Turning Center

The CNC turning center features a vertically arranged spindle and a large-diameter circular platform worktable, providing extremely high rigidity and stability when machining parts with large radial dimensions and relatively small axial dimensions (such as large discs and covers). The main structure of the CNC turning center, including the bed, column, and beam, is made of high-strength cast iron and undergoes ultrasonic quenching and precision grinding, which helps improve the CNC turning center's vibration resistance and long-term accuracy retention.

The vertical structure of the CNC turning center makes workpiece clamping easier, and its small footprint makes it suitable for machining environments with limited space. The CNC Turning Center chuck can be selected from hydraulic or manual chucks according to requirements, enabling rapid clamping.

The CNC Turning Center's precision ball screw, high-rigidity spring-loaded spindle structure, and heavy-duty linear rolling guides ensure high-precision machining. The fully symmetrical suspension design of the CNC Turning Center spindle sleeve effectively eliminates the impact of thermal deformation on accuracy, while the high-power AC spindle motor enhances operational stability.

The CNC Turning Center is equipped with a high-power spindle motor (18.5/22kW), capable of withstanding heavy cutting, with a single-sided feed rate of up to 10mm, significantly higher machining power than similar products.

The CNC Turning Center adopts a fully enclosed shielded protection structure, providing excellent waterproof and dustproof performance. The centralized operation panel simplifies the operation process and conforms to ergonomic design. The oil-water separation structure and separate coolant tank ensure coolant cleanliness and extend tool life.
