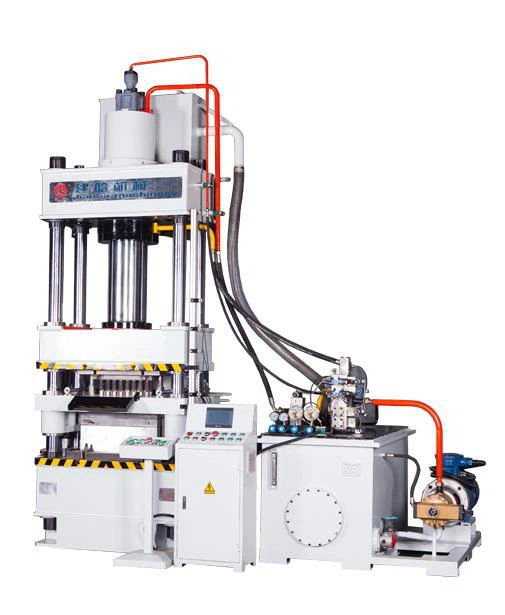

Animal Licking Block Machine Large Hydraulic Single Punch Pharmaceutical Rotary Tablet Press for Calcium Chloride Making
Product Introduction
We adopt the CNC VERTICAL TURNING LATHE, CNC vertical drilling machine, ceramic hydraulic press industry's advanced technology and equipment, and strive to build the domestic first-class manufacturing capacity. We do our best to serve our customers and earnestly fulfill our social responsibilities, striving to establish a positive corporate image. Our company is dedicated to providing a positive and empowering work environment for our employees, where they can thrive and grow professionally.
Main parameters
| Technical Parameters | Y32-500T | |
| Nominal pressure(KN) | 5000 | |
| System pressure(Mpa) | 25 | |
| Slider stroke(mm) | 700 | |
| Maximum opening height(mm) | 1000 | |
| Effective size of workbench | The left and right sides | 1400 |
| The front and rear sides | 1400 | |
| Slider speed(mm/s) | ldle stroke | 120 |
| Feeding | 15 | |
| Back tracking | 130 | |
| Ejection force(KN) | 630 | |
| under cylinder stroke(mm) | 260 | |
| Motor power(KW) | 22×2 | |
Main features
The Y32-500 T four-column hydraulic press is specifically designed for pressing animal licking salt blocks, animal nutritional feed blocks, salt bricks, and other similar products. This powder forming hydraulic press integrates our years of research, design, and manufacturing experience, inheriting the advantages of our previous models and optimizing them for the characteristics of salt block pressing. It features high pressure and excellent stability during prolonged high-pressure operation.
The powder forming hydraulic press uses a mold frame design, making mold replacement easy. It boasts a high degree of automation, eliminating the need for manual material feeding into the mold. The Animal Licking Block Press Machine is equipped with a hopper; simply place the material into the hopper, and the feeder will automatically deliver the material into the mold for pressing. The PLC control system precisely controls each pressing process. The pressing process is automatic and continuous.
The four-column hydraulic press has a sophisticated design and a compact size. Compared to hydraulic presses of the same tonnage, our hydraulic tablet press is smaller, saving space for our customers. Our press system design utilizes internationally professional hydraulic system technology, ensuring no oil leakage, high speed, improved equipment performance, reduced energy consumption, and space savings, truly achieving technical services that meet international standards.
We provide customization service according to our customer needs.
All electrical parts are using international brand,such as:Schneider,etc.
Sealing element adopt imported material.
All machine parts are using international brand,such as:Rexeoth,Siemens,etc.
Animal Licking Block Press Machine Application Scope
This series hydraulic press apply to compression molding about powder products,abrasive products,plastic products as well as insulating materials.
Such as:animal feeding blocks, fertilizer tablets, livestock salt licking blocks, Animal Licking Block,seeding nutrition soil tablet, calcium tablet,effervescent tablets, bath salts tablets.
Renowned for its quality and robustness, our Animal Licking Block Machine Large Hydraulic Single Punch Pharmaceutical Rotary Tablet Press for Calcium Chloride Making is reliable even in the most demanding environments. Our company introduces Internet thinking and big data technology to provide digital operation solutions for our product marketing. Our corporate culture is the common aspiration of all employees and the culture needed by the company's progress and development.
