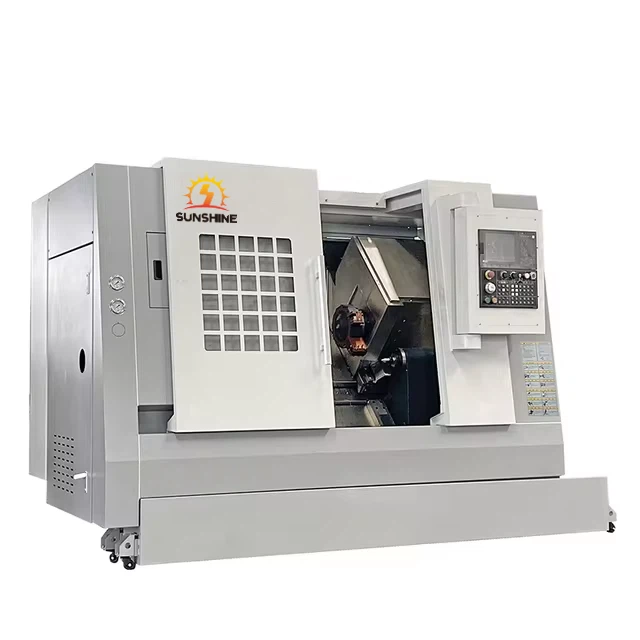

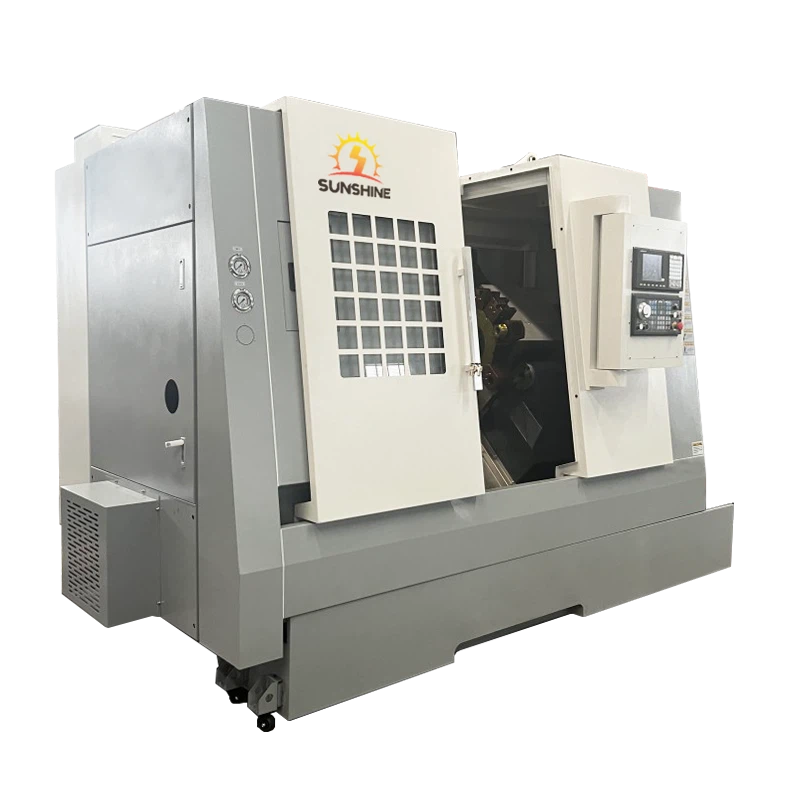

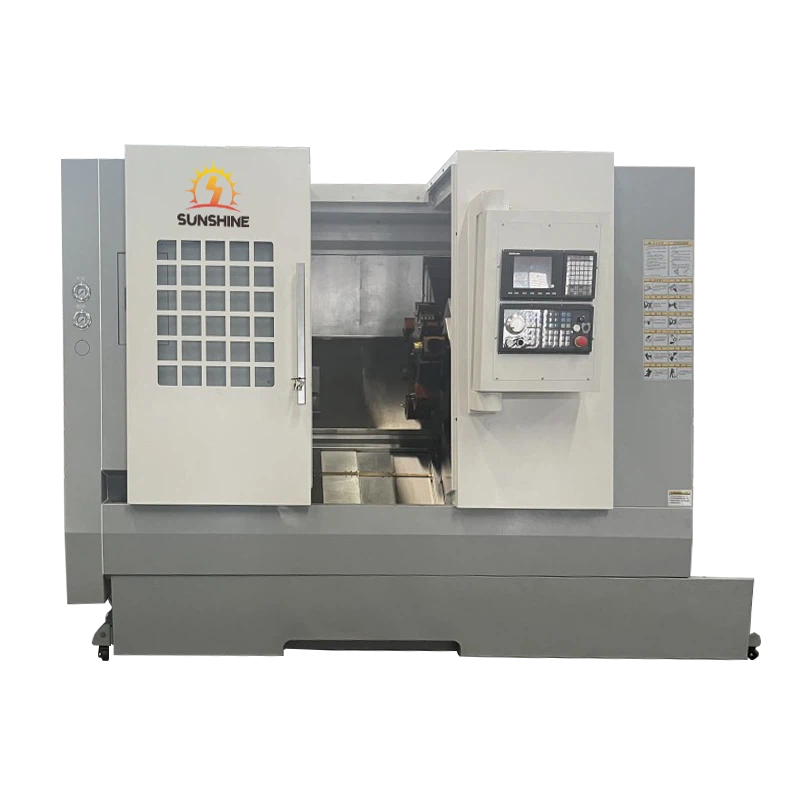

Customized Slant Rail Lathe
Professional manufacturer of metal cutting
The Customized Slant Rail Lathes features a 45° slant bed structure, with the bed, legs, and water tank made of a single piece of casting. Combined with a wide and thick base, this significantly enhances the machine tool's stability and vibration resistance. All components of the Customized Slant Rail Lathes undergo double manual annealing, enhancing the machine tool's precision retention and high-speed machining stability. The entire machine is fully enclosed, easy to clean, and leak-free. Customized production is available to meet the needs of different customers.
► HIWIN lead screws:
High precision/Low noise
Long life/Ultra-smooth
► Integral casting：
Heat treatment/Long life
High tensile strength/High bending strength
TCK4556-500 Main Technical Parameters
Maximum Bed Rotation Diameter: 560mm
Maximum Cutting Diameter: 500mm
Spindle Motor Power: 11-15kw
Spindle Bore Diameter: 65mm
Spindle Speed Range: 50-4500/177rpm
Tilting Angle: 45°
Hydraulic Chuck: 8"/10"
X-Axis Travel: 200mm
Z-Axis Travel: 560mm
Tailstock Travel: 450mm
Sleeve Inner Taper: 5MT
X/Z Rapid Traverse: 30/30m/min
Dimensions: 2300*1600*1800mm
Machine Weight (approx.): 3600kg
Core advantages of slant rail lathe
After a workpiece is clamped once, the slant-rail lathe can continuously perform turning, milling, drilling, and tapping operations, avoiding repeated positioning errors and significantly improving machining accuracy.
The slant-rail lathe reduces workpiece handling and waiting time between machine tools. Integrating multiple processes shortens the overall production flow and improves efficiency.
It reduces the need for tooling and fixture manufacturing and inventory, saves workshop floor space, and lowers equipment maintenance and labor costs.
The slant-rail lathe can machine complex parts such as shafts, discs, and housings, making it particularly suitable for the high-precision requirements of aerospace, automotive, and mold-making industries.
● Hardware processing ● Mold processing
● Electrical processing ● Building materials
● Light industry ● Parts manufacturing
Customer visit
Our CNC machine tools are now sold to more than 40 countries and regions, including Russia, Turkey, Thailand, Vietnam, Iran, India, and South Africa. They are of stable quality and have excellent after-sales service, and have always enjoyed a good reputation in overseas markets. We are still expanding our global business.
