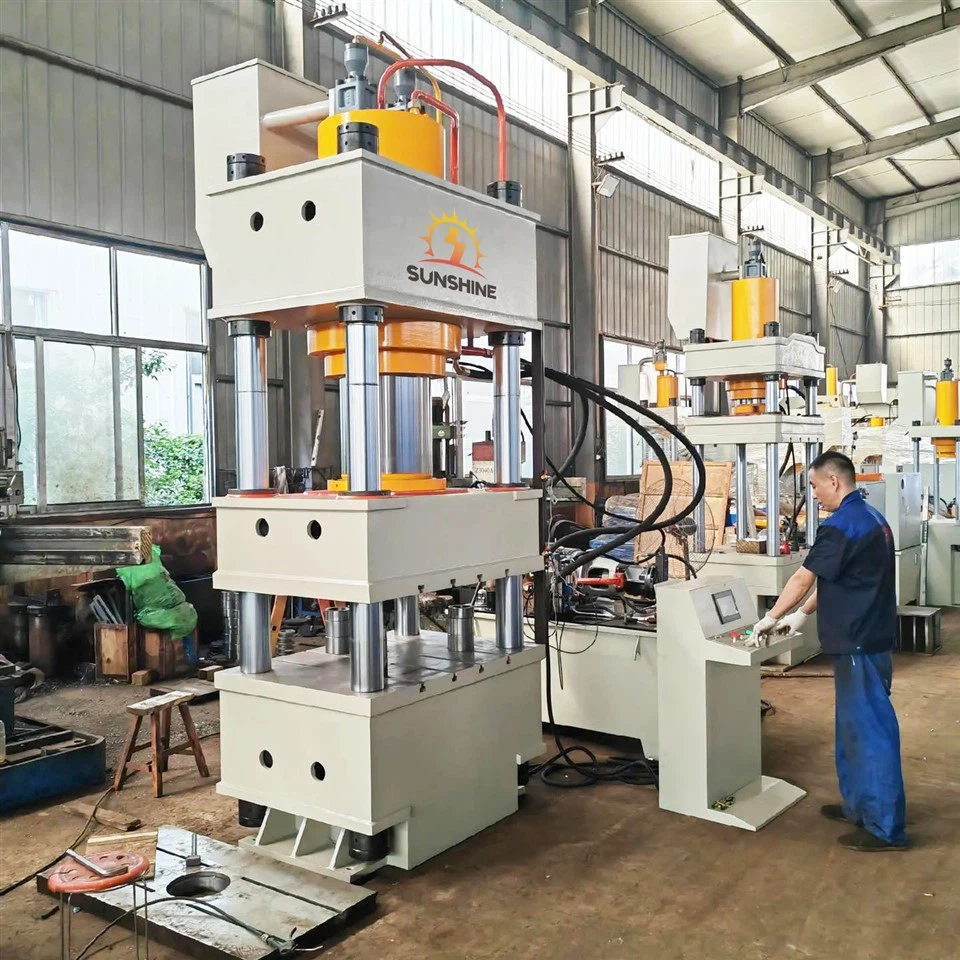

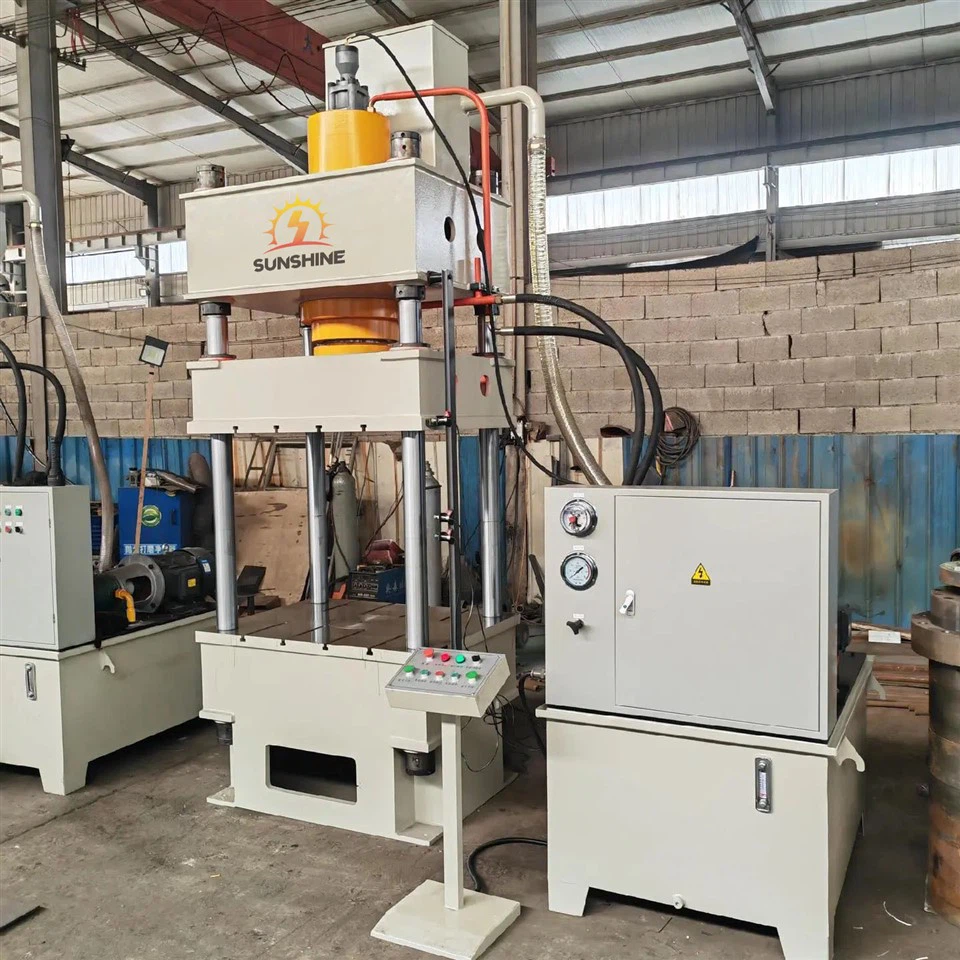

Metal Ware Stretch Forming Hydraulic Press
If you are in need of metal ware stretch forming hydraulic press to help with your business, please rest assured to wholesale with us. We are one of the leading such manufacturers and suppliers in China with over 20 years' history. And the customized service is also available.
Main parameters of 200T hydraulic press
Nominal pressure(kN)：2000
System pressure(Mpa)：25
Slide stroke(mm)：500
Maximum opening height(mm)：800
Workbench size(mm)：720 * 700
Idle slider speed(mm/s)：120
Working slider speed(mm/s)：14
Return slider speed(mm/s)：72
Top output：customized according to the product
Bottom cylinder stroke：customized according to the product
Motor power：11KW
Four column hydraulic press can be optionally installed
Mobile Workbench
Lower top cylinder

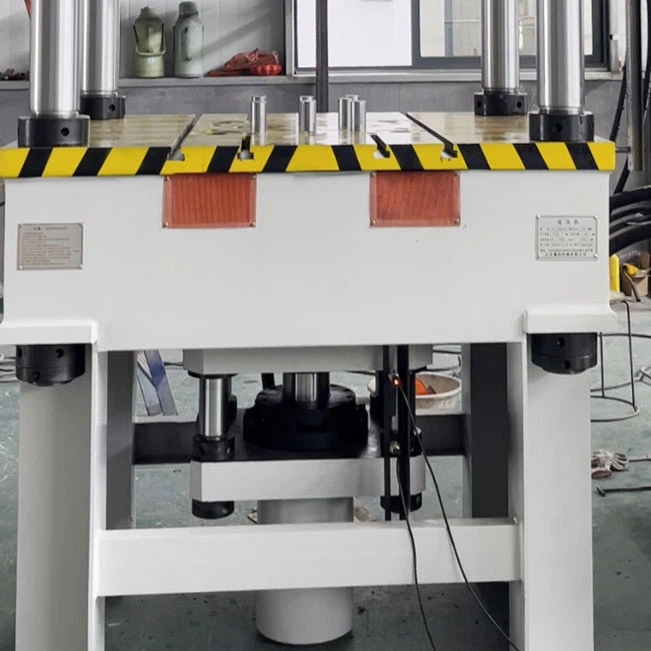

Hydraulic pad
Photoelectric protection device

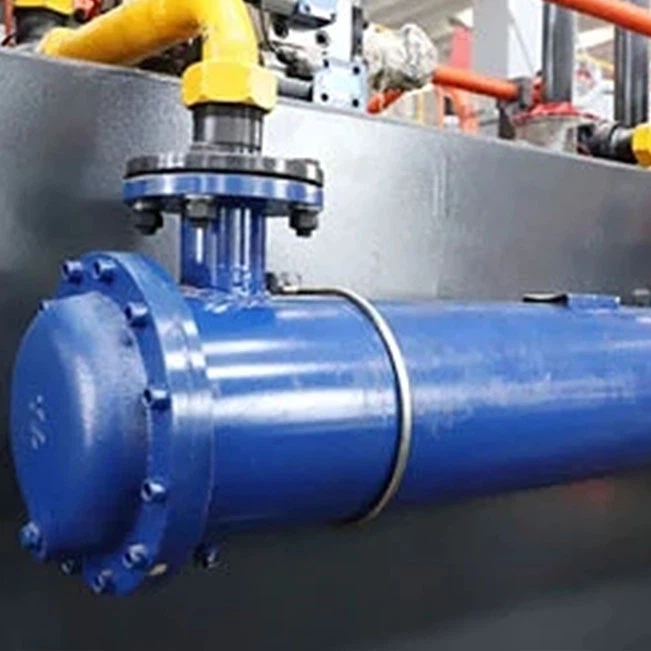

Cooling system

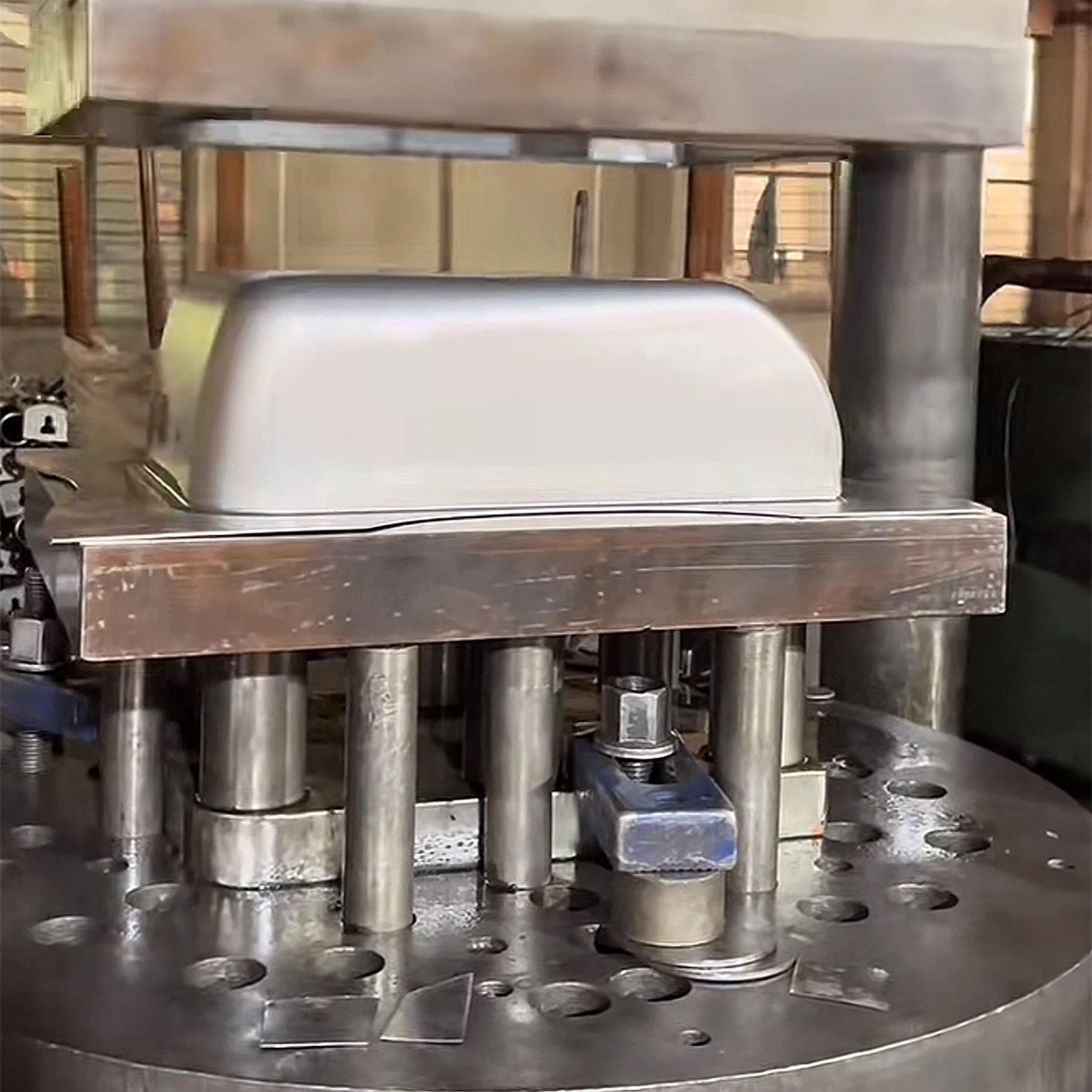

Customized product molds

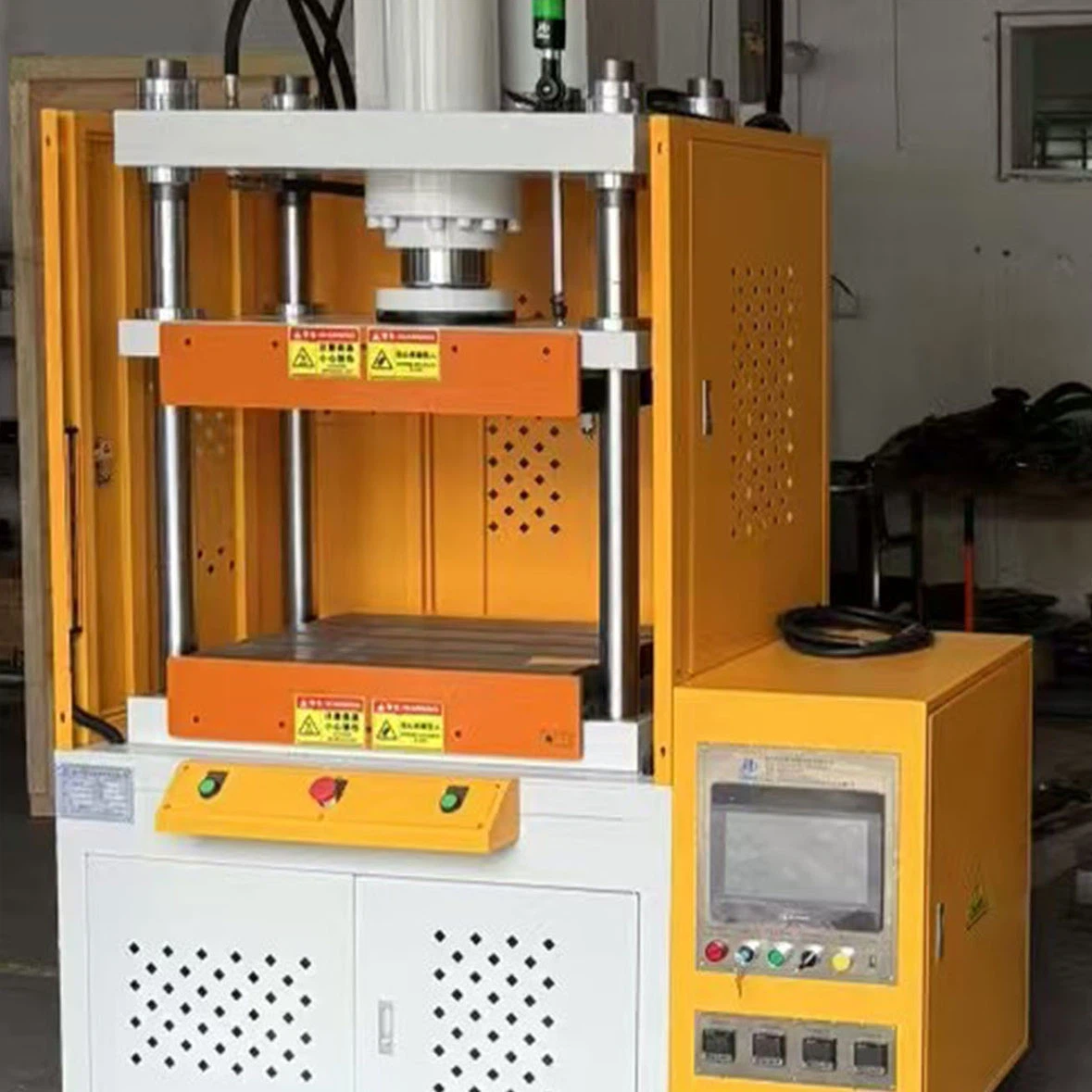

safety net

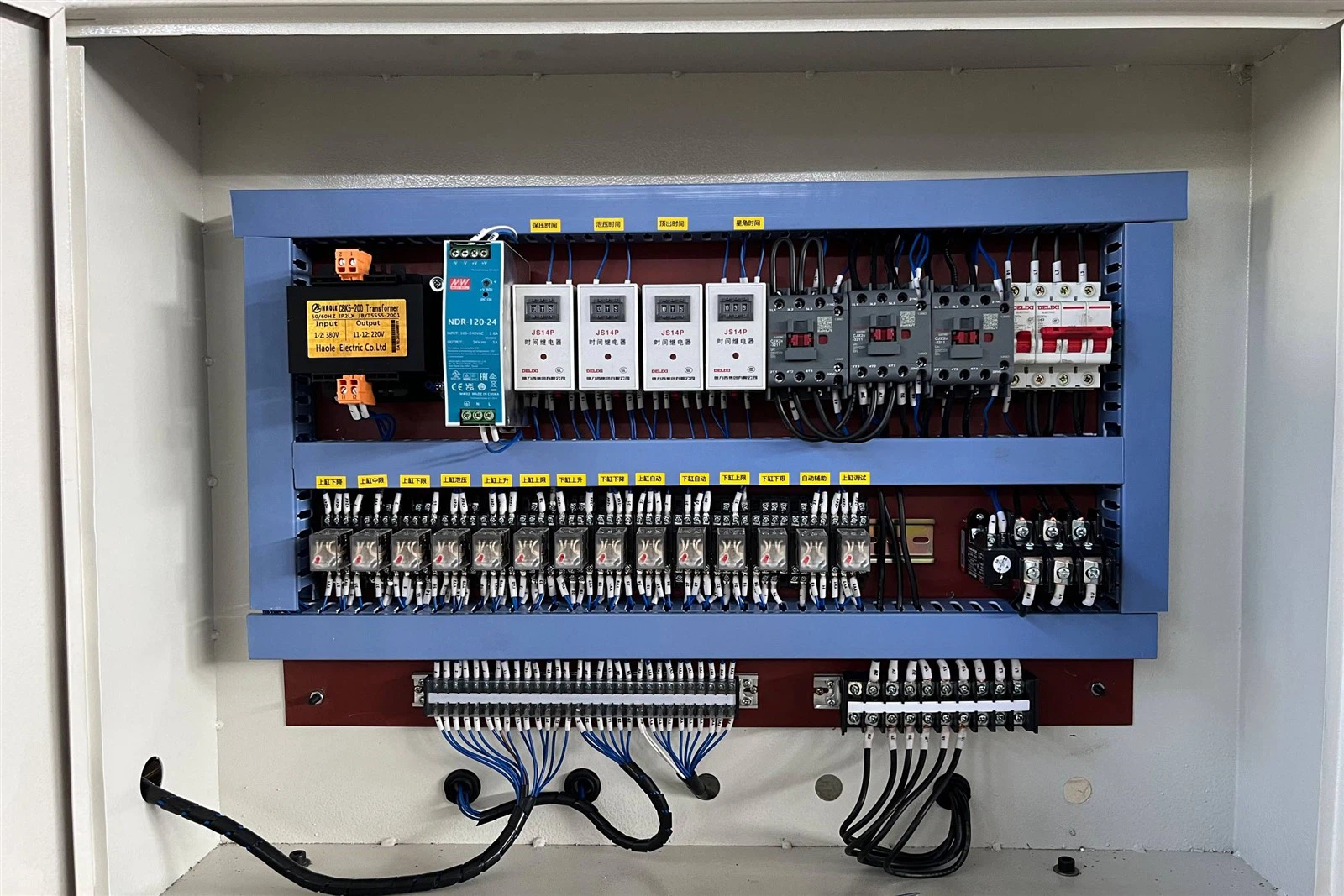

PLC system
Performance characteristics of Metal Ware Stretch Forming Hydraulic Press

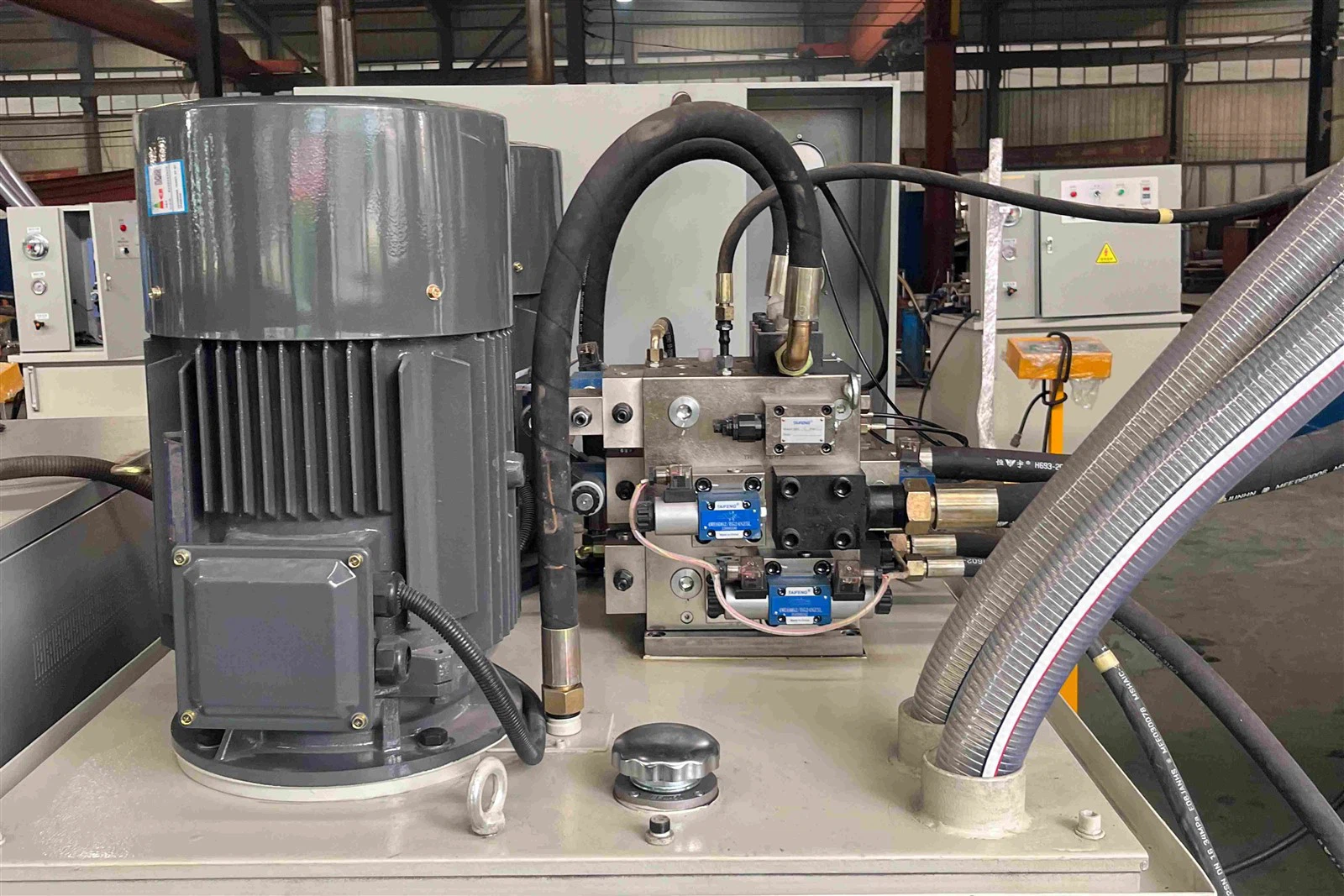

Our metal product stretching hydraulic press features a practical three-beam, four-column structure-an industry-proven design that delivers exceptional stability during high-pressure stretching operations. Its hydraulic control system uses an integrated cartridge valve configuration, which significantly minimizes oil leakage issues, ensures consistent and reliable performance, and prolongs the machine's overall service life.
Designed to meet diverse production needs, this hydraulic press supports two core forming processes: constant pressure and constant stroke. It also comes with a pressure-holding delay function, allowing for precise control at every stage of the forming process-critical for achieving uniform, high-quality metal products. Both working pressure and stroke can be easily adjusted within the specified range, making it simple to tailor the machine to your exact production requirements.

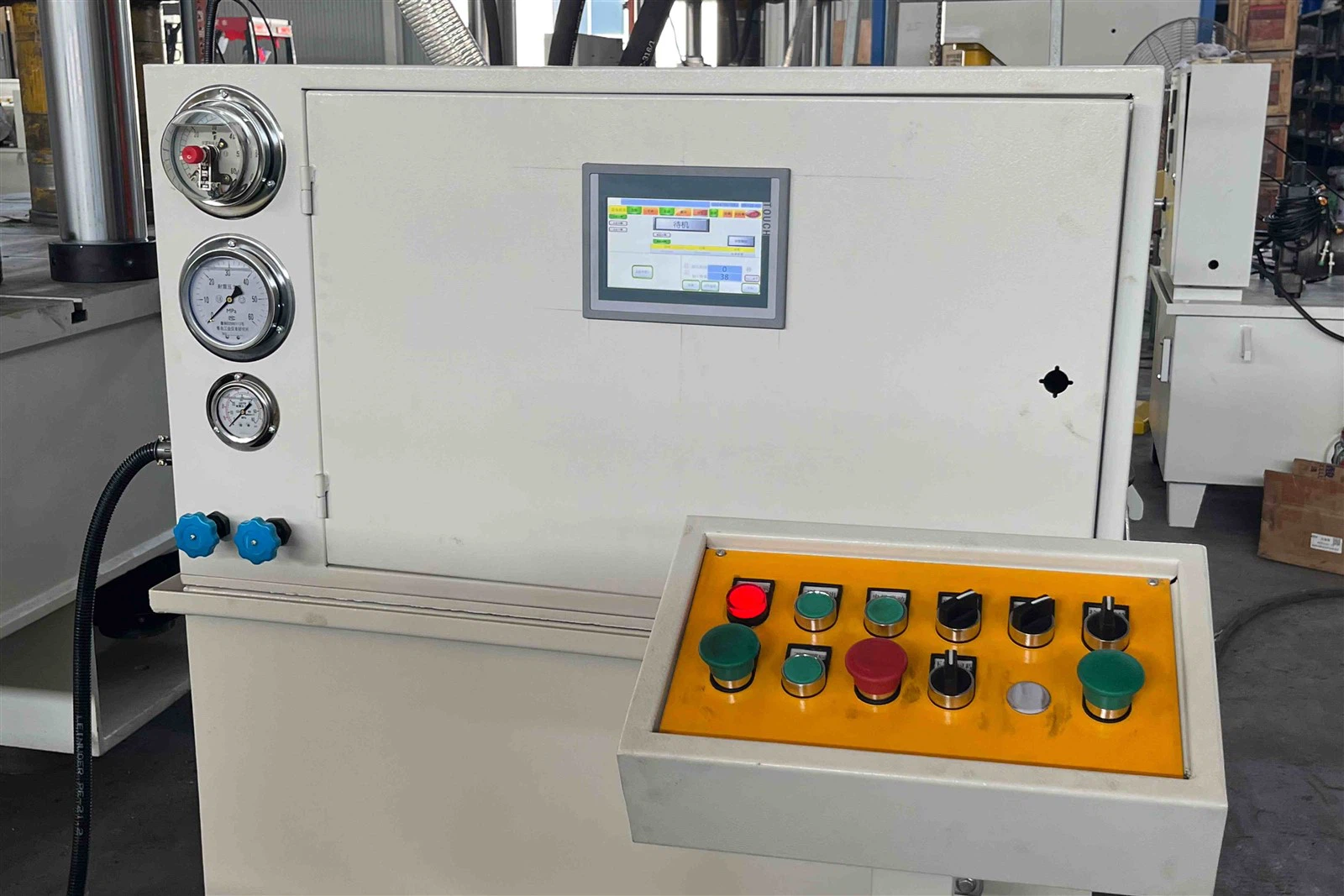

To enhance user convenience, we've equipped the hydraulic press with centralized button control, offering three flexible operating modes: manual, semi-automatic, and fully automatic. This user-friendly design streamlines operation, boosts work efficiency, and accommodates operators of all skill levels-from beginners to experienced professionals.
Flexibility is at the core of this Metal Ware Stretch Forming Hydraulic Press: its working pressure, pressing speed, and the stroke and range of no-load fast descent and deceleration can all be adjusted freely according to your specific process requirements. This adaptability makes it ideal for a wide range of metal ware stretch forming tasks.
It also handles ejection processes seamlessly, including both ejection and stretching operations. Each process offers two practical options: constant pressure and constant stroke. For the constant pressure forming process, it comes with ejection delay and automatic return after pressing, streamlining workflow and improving production efficiency.
Application of 200T Four Column Hydraulic Press

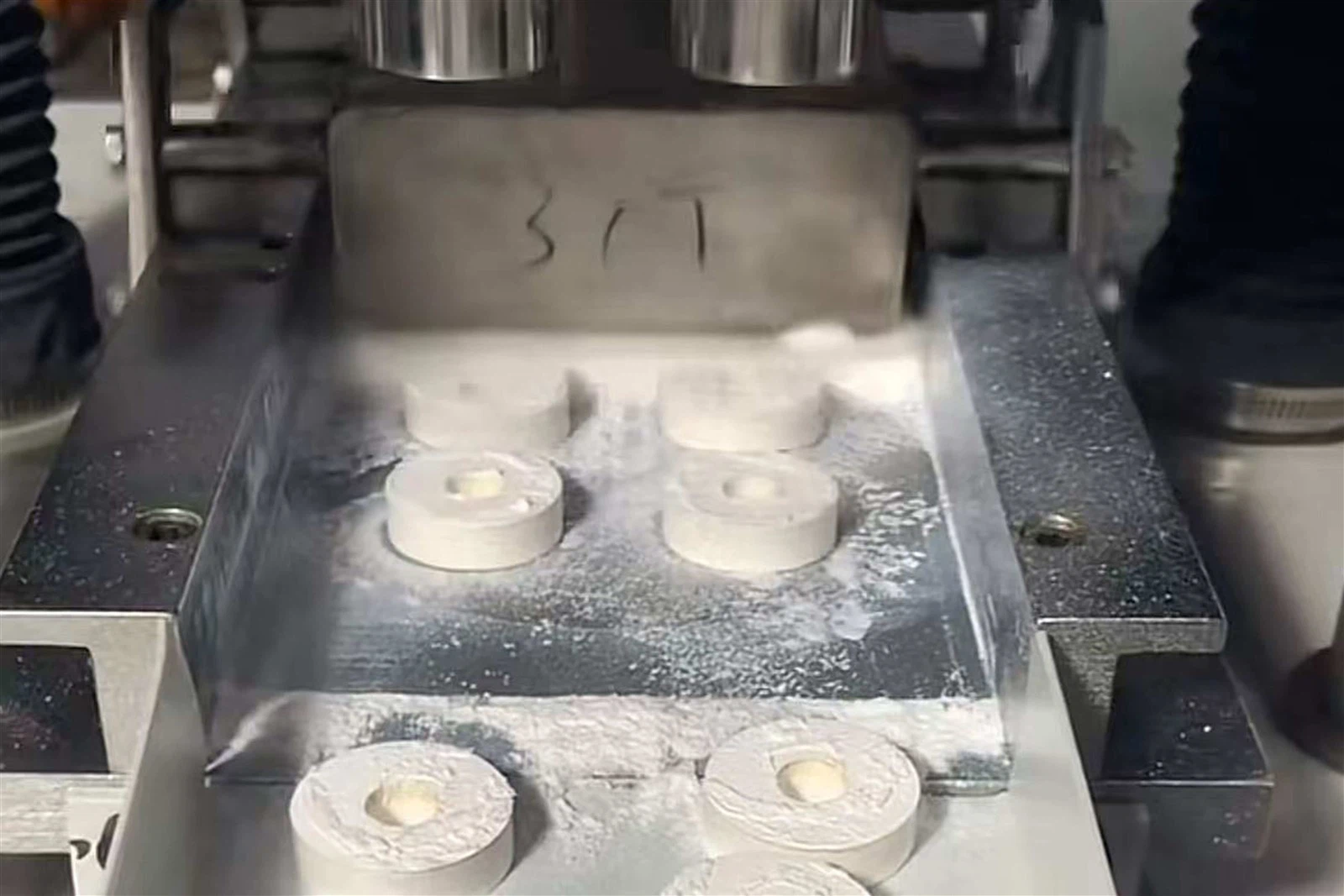

The four-column hydraulic press stands as a fundamental piece of industrial equipment, meticulously engineered for the processing of a diverse range of materials such as industrial metals, plastics, rubber, wood, powders, and more. It finds extensive application in a multitude of pressing and forming operations, encompassing forging, stamping, cold extrusion, straightening, bending, flanging, deep drawing of thin plates, powder metallurgy, and press fitting.
About Us
● More than 10 years of experience in mechanical equipment manufacturing
● Rich experience in exporting hydraulic presses
● 24-hour online service
● 24 month warranty
● Provide a complete set of mechanical processing project solutions
● Order first, produce later
● Provide free workpiece processing testing
● Through strict quality control and multiple testing processes for inspection
● Can arrive at the customer's site for installation and debugging training
● Trade with clients from over 150 countries worldwide
● Can handle customs clearance procedures in various countries and provide clearance information
